2. Installation
164 RC700 / RC90 Option Fieldbus I/O Rev.14

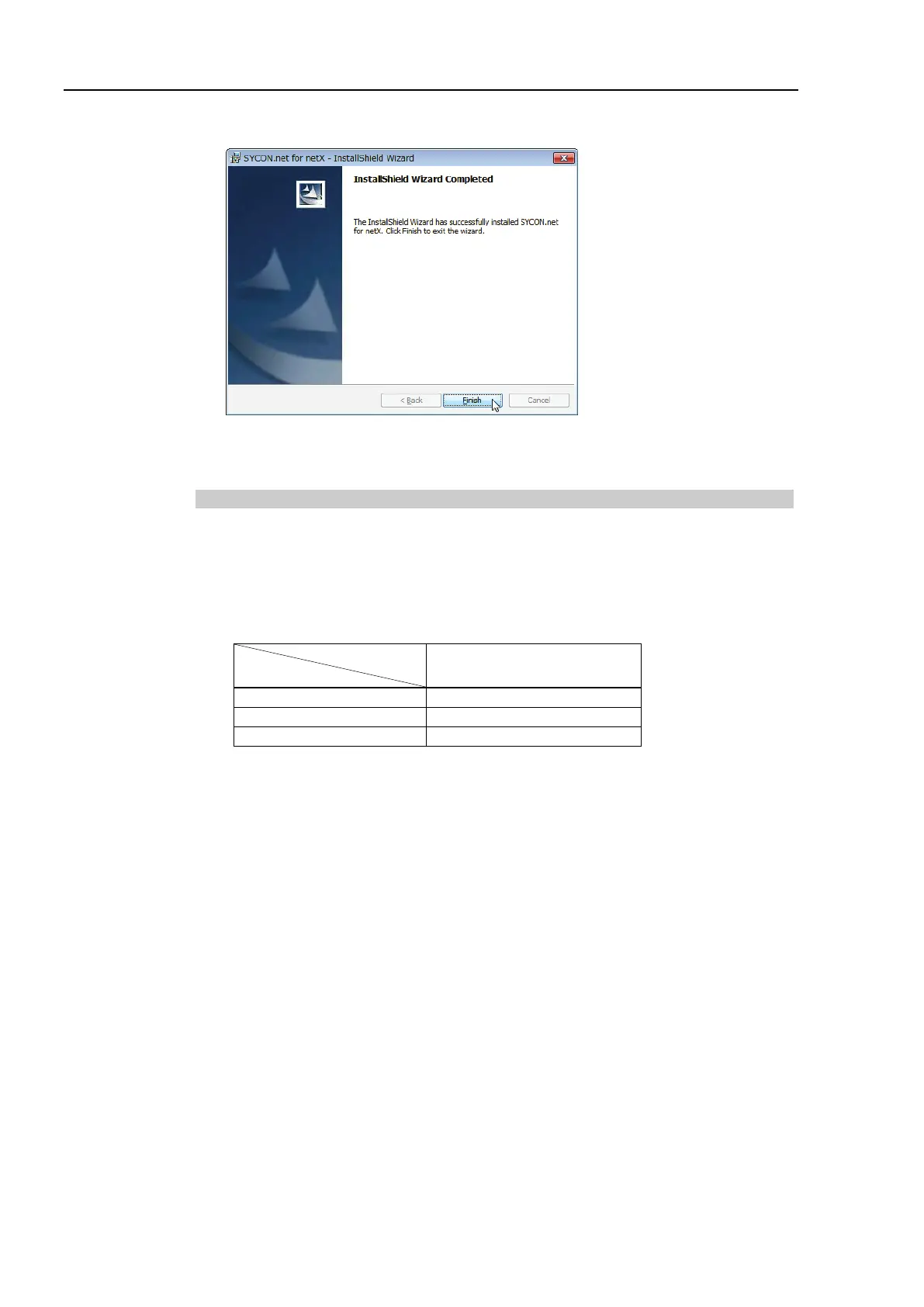

18. The [InstallShield Wizard - InstallShield Wizard Completed] dialog box appears.
Click <Finish>.
Refer to the next Installing a Board to install EtherNet/IP board manufactured by
Hilscher.
Installing a Board
1. Configure the rotary switch of the board address on EtherNet/IP board manufactured
by Hilscher.
You can install one Fieldbus master board to the PC with the EPSON RC+ 7.0
installed. The slot number should be “Not in use (0)”. Refer to the following table for
configuration.
Slot No.
Rotary switch position
Not in use
0
Slot No. 1
1
Slot No. 9
9
2. Install the EtherNet/IP board manufactured by Hilscher to the PCI bus or PCI Express
bus of the PC with the EPSON RC+ 7.0 installed.
Installation methods of the EtherNet/IP board manufactured by Hilscher to the PCI
bus/PCI Express bus and how to open the cover differ depending on the type of PC.
Refer to the manuals of each PC on how to install the board to the PCI bus/PCI
Express board.
3. Connect EtherNet/IP board manufactured by Hilscher with the EtherNet/IP network.
