2. Installation
RC700 / RC90 Option Fieldbus I/O Rev.14 183

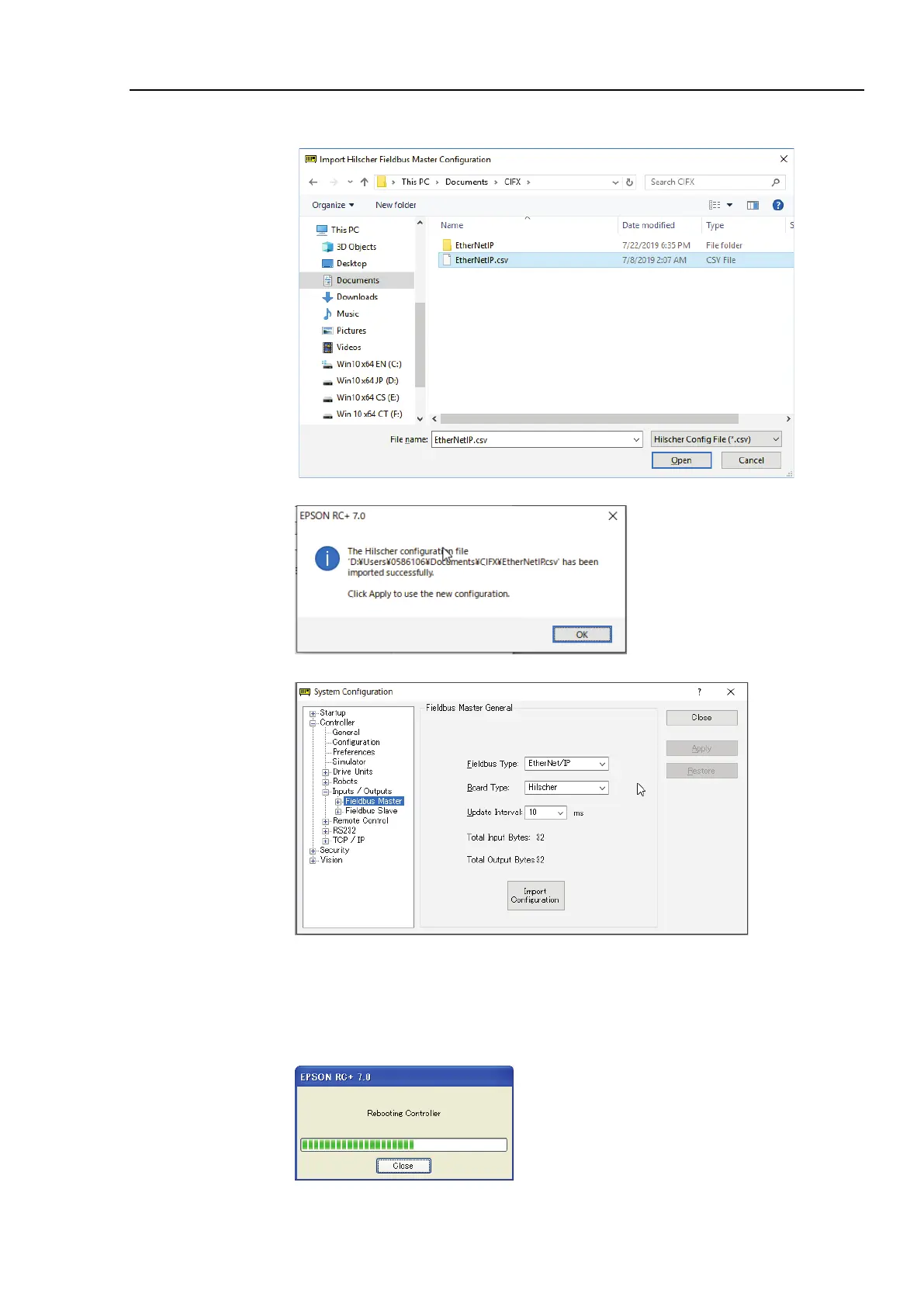

(7) Select the configuration file (.csv) for RC+.
Click <Open>.
(8) Confirm that the configuration file (.csv) for RC+ is imported and click <OK>
(9) Confirm that the following items are displayed.
Total Input Bytes : Number of inputs the master controls (Bytes)
Total Output Bytes : Number of outputs the master controls (Bytes)
(10) Click <Apply>.
(11) Click <Close>.
The following dialog box appears.
The Robot Controller automatically starts rebooting.
To Next Page
