2. Installation
184 RC700 / RC90 Option Fieldbus I/O Rev.14

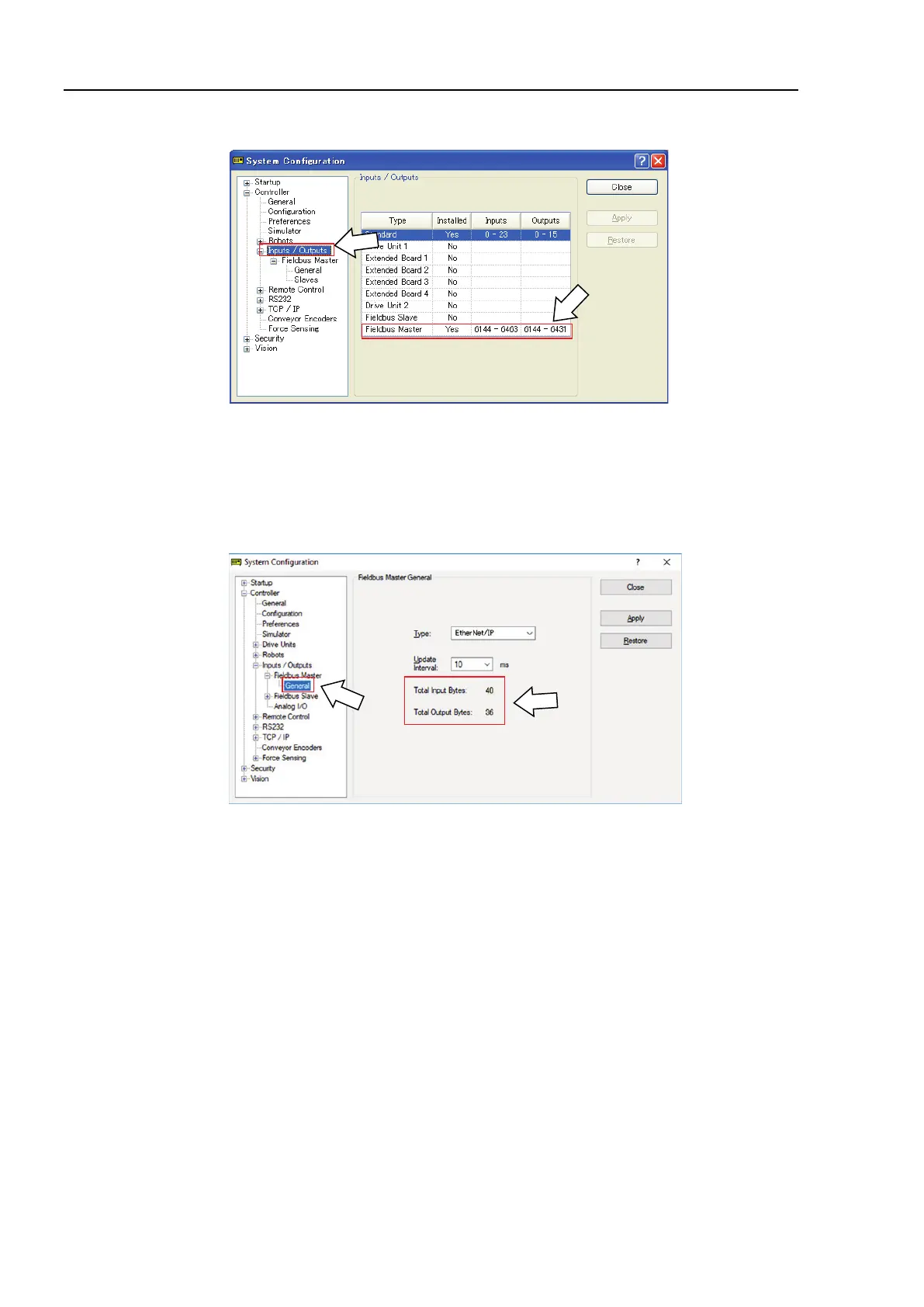

(12) Select [Setup]-[System Configuration] and display the [System Configuration] dialog
box.
(13)
(14)
(13) Select [Inputs/Outputs].
(14) Confirm that “Fieldbus Master” displays the following items:
Installed : Yes
Inputs : “6144” – “6144 + Number of inputs the master controls (Bits)
Outputs : “6144” – “6144 + Number of outputs the master controls (Bits)
(15) Select [Fieldbus Master]-[General].
(15)
(16)
(16) Confirm that the following items are displayed.
Total Input Bytes : Number of inputs the master controls (Bytes)
Total Output Bytes : Number of outputs the master controls (Bytes)
