Editing of Input / Output Size
You can change the input/output size of the CC-Link slave module if necessary.

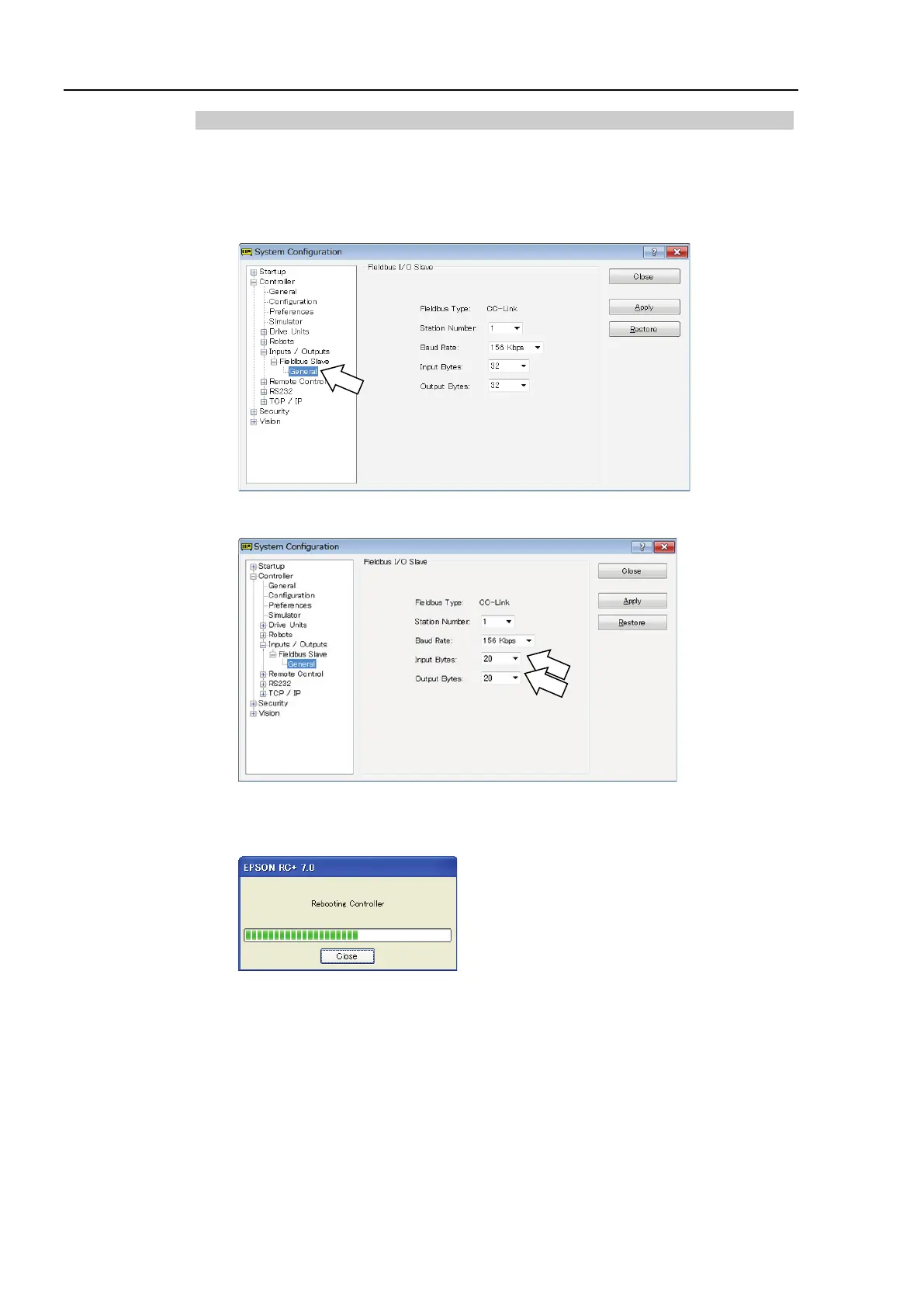

(1) Select [Setup]-[System Configuration] and display the [System Configuration]
dialog box.
(2) Select [Inputs / Outputs]-[Fieldbus Slave]-[General].
(3) Change the settings of [Input Byte] and [Output Byte].
In this example, both of them are changed to ā20ā Bytes.
(4) Click <Apply>.
(5) Click <Close> and the following dialog box appears.
T/VT series Manipulator (Controller) automatically starts rebooting.
