2. Installation
32 RC700 / RC90 Option Fieldbus I/O Rev.14

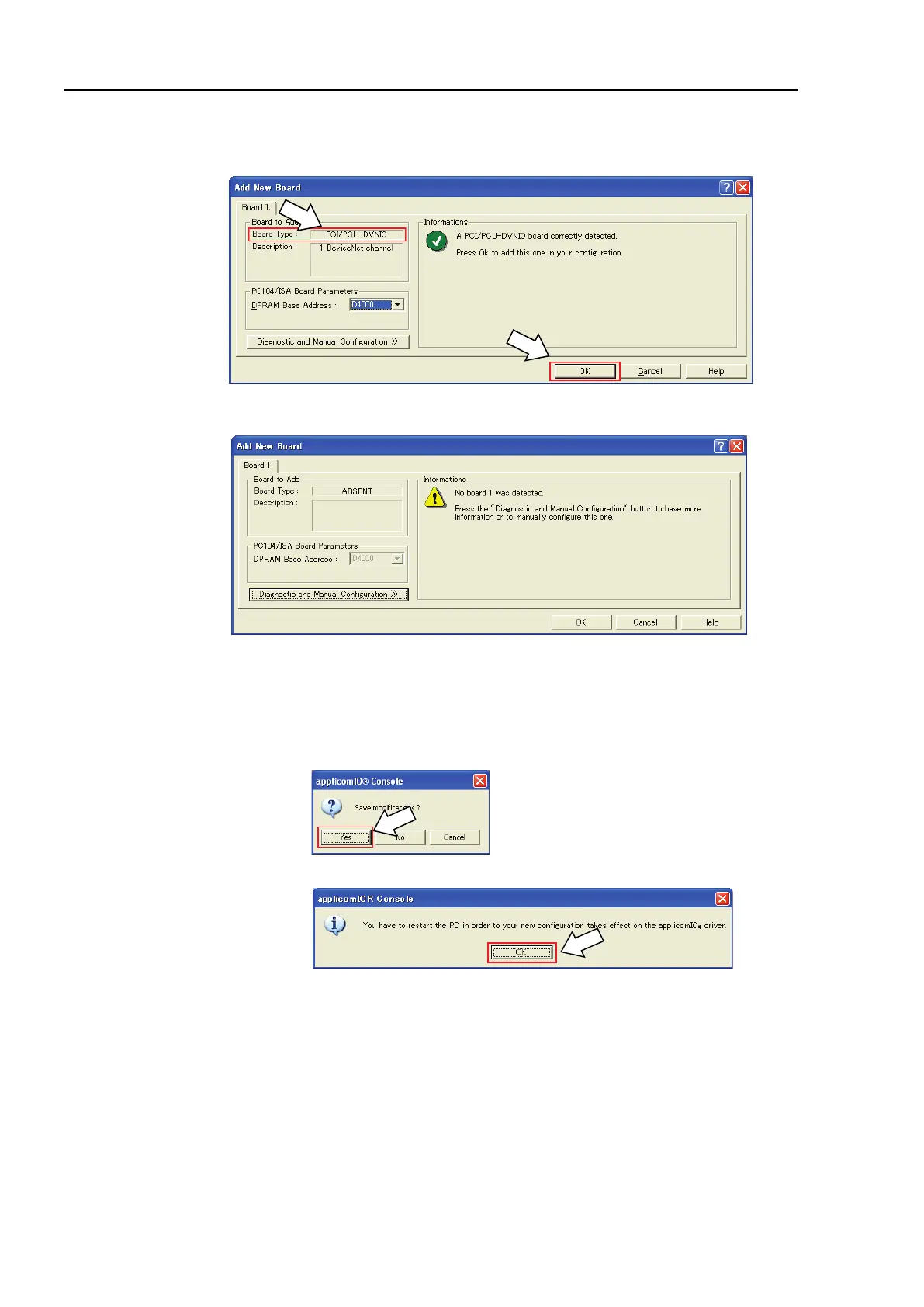

7. The [Add New Board] dialog box appears.
Confirm that “PCU-DVNIO” is displayed in [Board to Add]-[Board Type]
and click <OK>.
If the board cannot be detected, the following dialog box appears. Make sure that the
board is correctly inserted.
8. When you finish adding the DeviceNet master board manufactured by molex to the
applicomIO Console application, reboot the PC.
8-1 Shutdown the applicomIO Console application.
When the applicomIO Console application shuts down, the dialog box
below appears. Click <Yes>.
8-2 Then, the following dialog box appears. Click <OK>.
8-3 Reboot the Windows.
9. After the PC is rebooted, refer to the next section Master Mode and continue the step.
