2. Installation
RC700 / RC90 Option Fieldbus I/O Rev.14 33
Master Mode
1. Check that the DeviceNet master board manufactured by molex is connected to the
DeviceNet network.
2. Open the [applicomIO Console] install folder and run the “applicomIO Console”
application.
Following is specified for [applicomIO Console] install folder as default.
C:\Program Files(x86)\BradCommunications\applicomIO\4.1

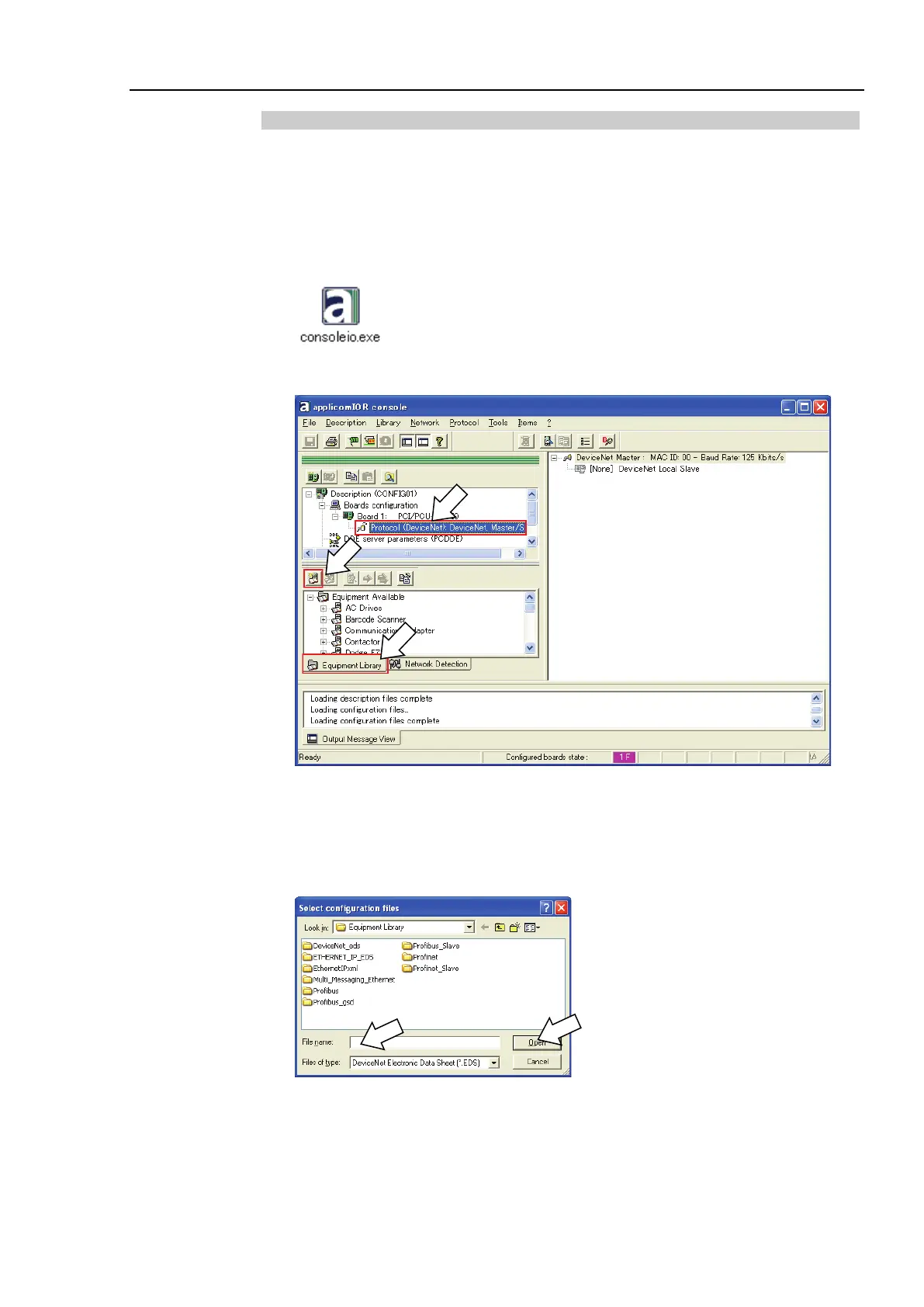

3. The [applicomIOR console] dialog box appears. Register the device information
(EDS file) that is necessary for the network setup.
4. Select [Protocol].
5. Select the [Equipment Library] tab.
6. Click <Add>.
7. The [Select configuration files] dialog box appears.
Specify the EDS file that is supplied by the device manufacturer. Click <Open>.
To Next Page
