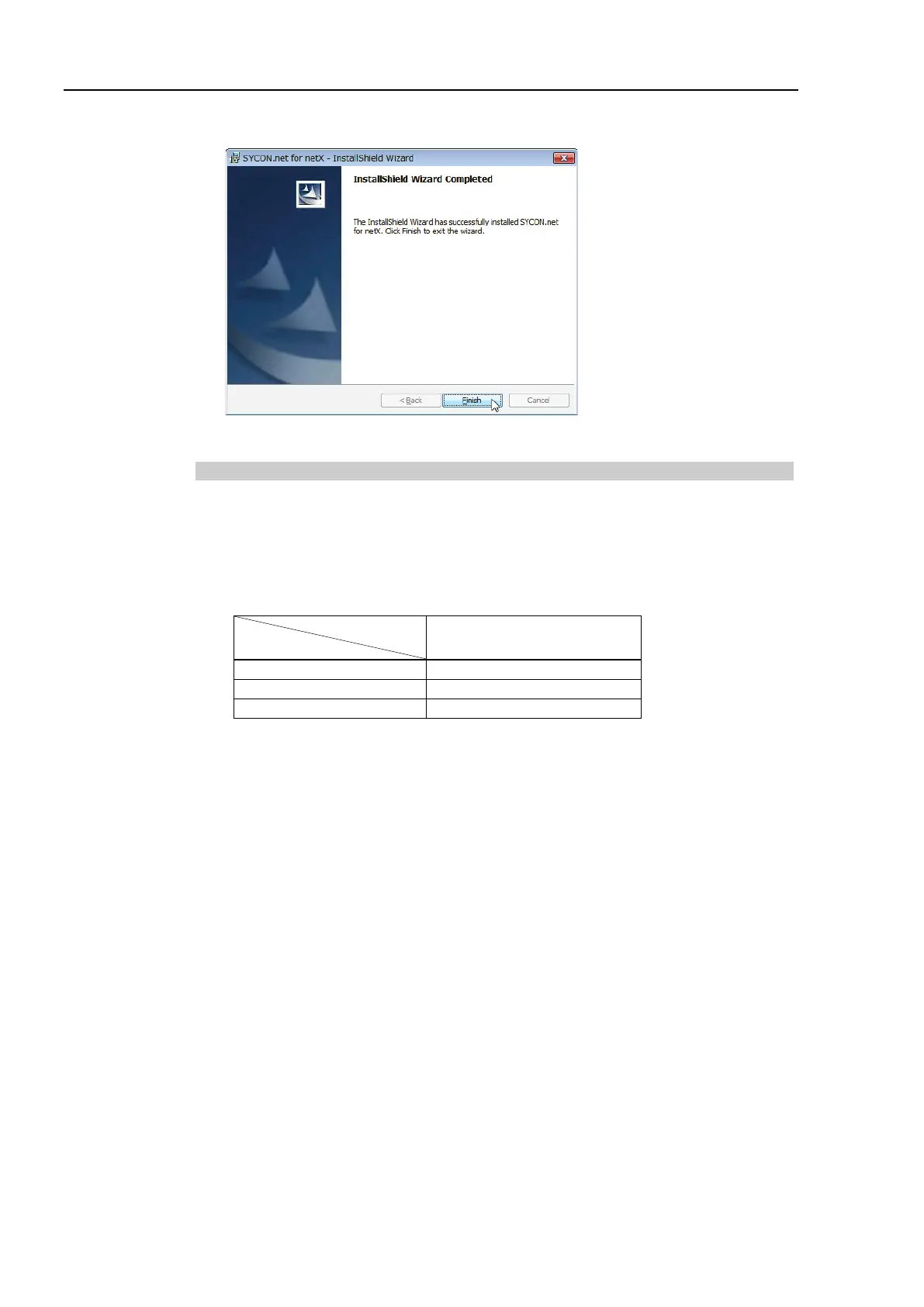

18. The [InstallShield Wizard - InstallShield Wizard Completed] dialog box appears.
Click <Finish>.
Refer to the next Installing a Board and install DeviceNet board manufactured by Hilscher.
Installing a Board
1. Configure the rotary switch of the board address on DeviceNet board manufactured by
Hilscher.
You can install one Fieldbus master board to the PC with the EPSON RC+ 7.0
installed. The slot number should be “Not in use (0)”. Refer to the following table for
configuration.
Slot No.
Rotary switch position
Not in use
0
Slot No. 1
1
Slot No. 9
9
2. Install the DeviceNet board manufactured by Hilscher to the PCI bus or PCI Express
bus of the PC with the EPSON RC+ 7.0 installed.
Installation methods of the DeviceNet board manufactured by Hilscher to the PCI
bus/PCI Express bus and how to open the cover differ depending on the type of PC.
Refer to the manuals of each PC on how to install the board to the PCI bus/PCI
Express board.
3. Connect DeviceNet board manufactured by Hilscher with the DeviceNet network.
