19. Disconnect the cables from the connectors (CN1, CN2, and CN51) on the PSH-B
Board.
20. Remove the nine screws, and remove the PSH-B Board.
J) Silver M3x6 screw: 9 pcs

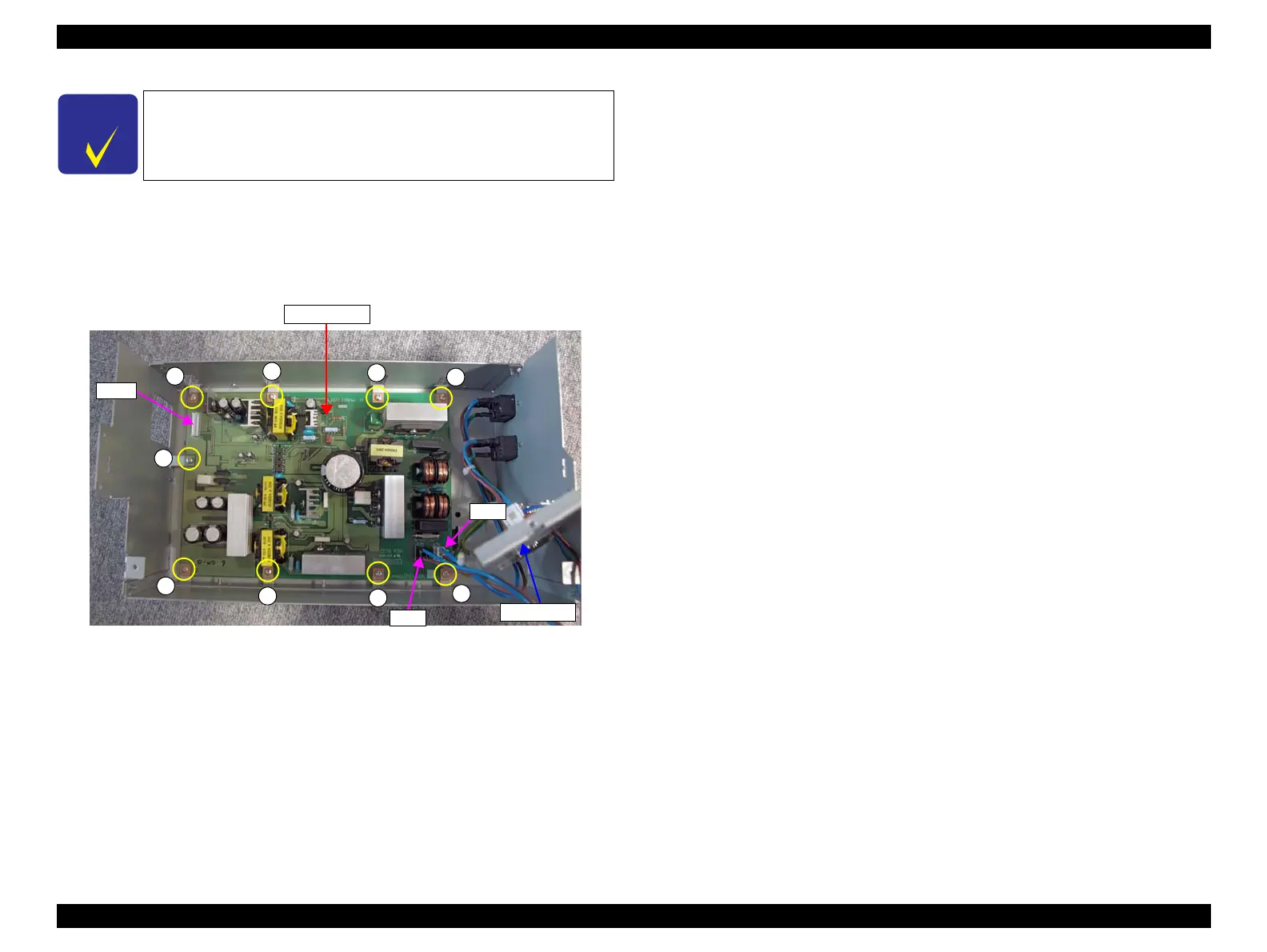

Figure 3-59. Removing the PSH-B Board
C H E C K
P O I N T
Leave the cables connected to the Shield plate, and move them out
of the way to remove the PSH Board B at the next step.
J
CN2
CN1
J
J
J
J
J
J
J
J
PSH-B Board
Shield plate
CN51
