DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 129
SE Group Confidential (Related Staff Only)
16. Disconnect the cable from the connector (CN1) on the PSH Board.
17. Remove the six screws, and remove the PSH Board.
H) Silver M3x6 screw: 6 pcs

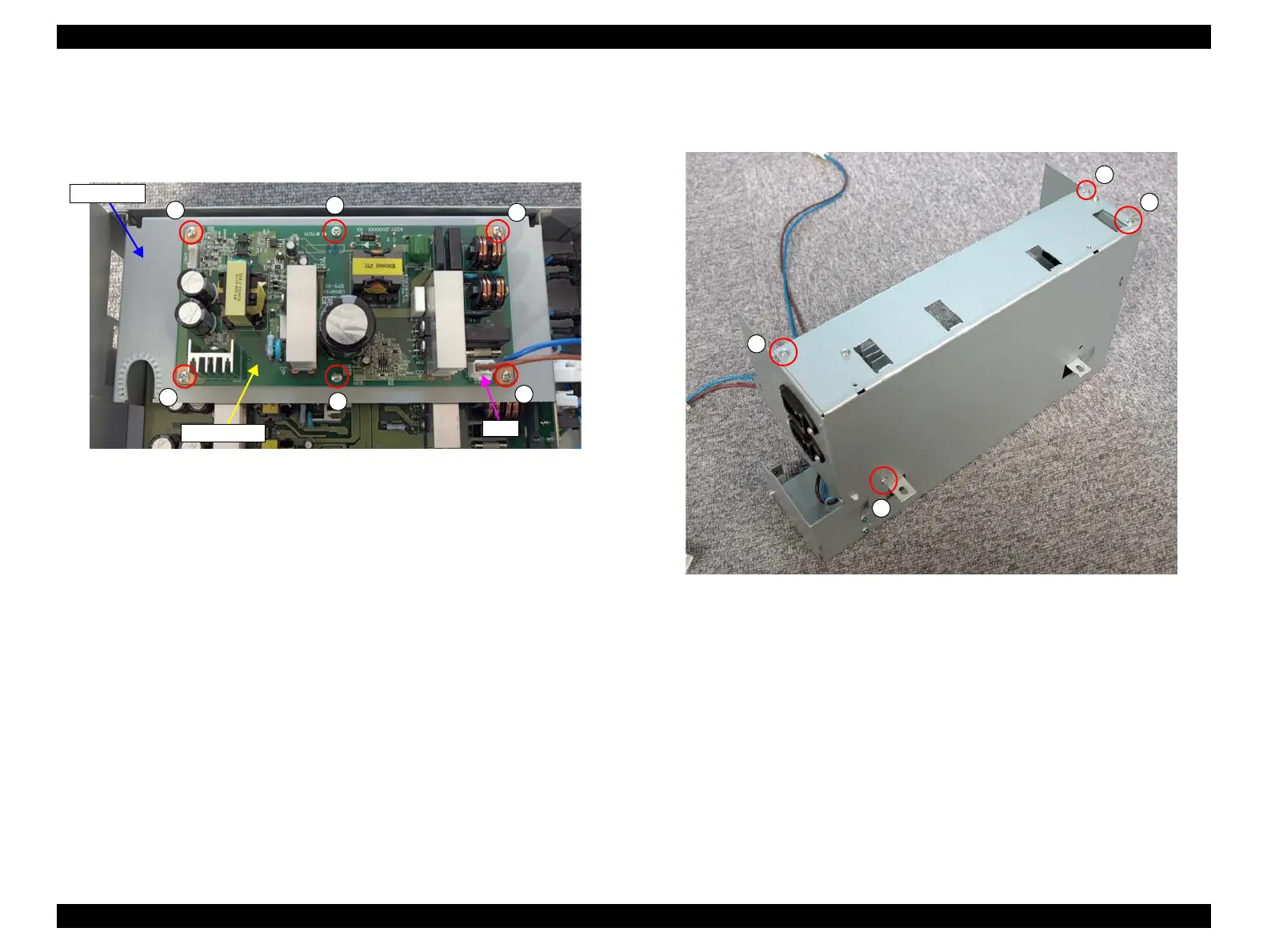

Figure 3-57. Removing the PSH Board
18. Remove the four screws, and remove the Shield plate (See Figure3-57).
I) Silver M3x6 screw: 4 pcs
Figure 3-58. Shield Plate Fixing Screws
H
H
CN1
H
H
H
H
PSH Board
Shield plate
I
I
I
I
