Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 131
SE Group Confidential (Related Staff Only)
3.4.4.4 Sub Board
1. Unlock the CR Unit. (p98)
2. Remove the Left Rear Cover. (p110)
3. Remove the Left Upper Cover. (p111)
4. Remove the CR Cover. (p139)
5. Disconnect all cables and FFCs from the Sub Board.
6. Remove the four screws, and remove the Sub Board.
A) Silver M3x8 P-tite screw: 4 pcs

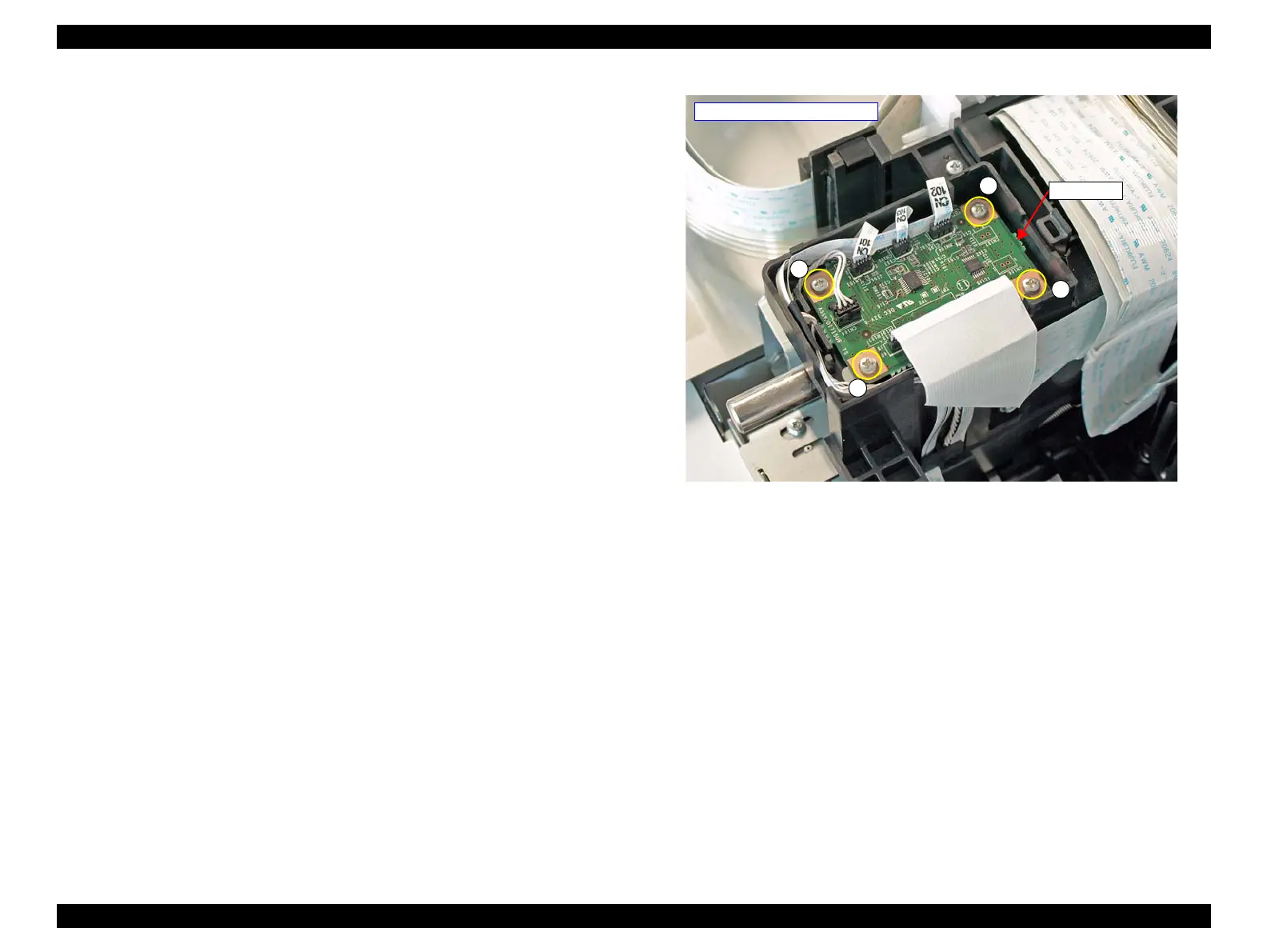

Figure 3-60. Removing the Sub Board
A
A
A
A
- Upper side of the CR Unit -
Sub Board
