Epson SC-F9200 series

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 133
SE Group Confidential (Related Staff Only)
3.4.4.6 Sub-E Board
1. Remove the After Heater. (p233)
2. Remove the three screws, and remove the Sub-E Board Cover.
A) Silver M3x8 S-tite screw: 3 pcs

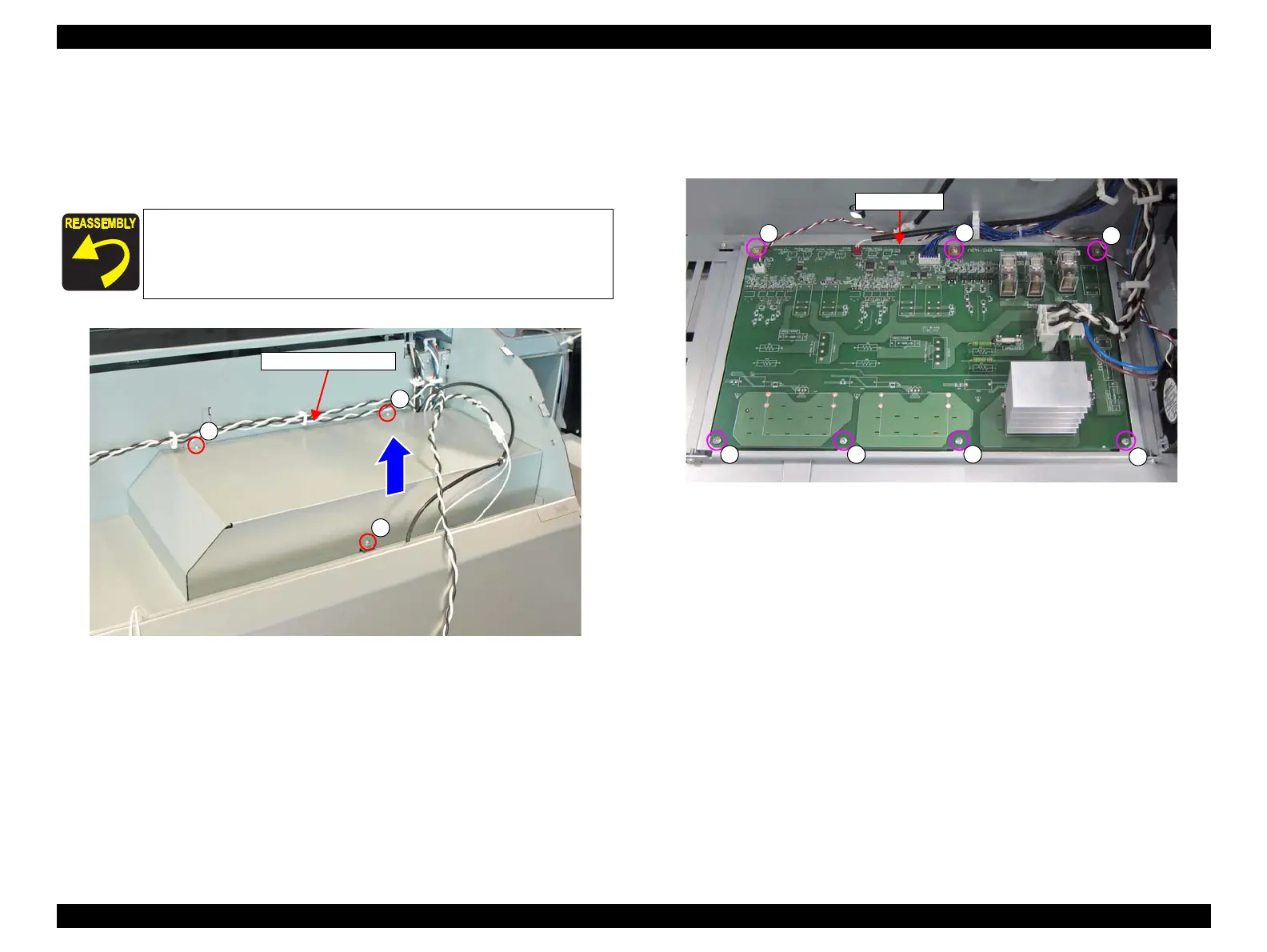

Figure 3-63. Removing the Sub-E Board Cover
3. Disconnect all cables from the Sub-E Board.
4. Remove the seven screws, and remove the Sub-E Board.
B) Silver M3x8 S-tite screw: 7 pcs
Figure 3-64. Removing the Sub-E Board
When installing the Sub-E Board Cover, be careful not to let the
cables get caught between the Sub-E Board Cover and the main
body.
A
A
A
Sub-E Board Cover
B
B
B
B
B B
B
Sub-E Board
