DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 146
SE Group Confidential (Related Staff Only)
8. Remove the six screws that secure the Duct CR
B) Silver M3x10 screw with washer
9. Lift the Duct CR to remove it from the CR Unit.

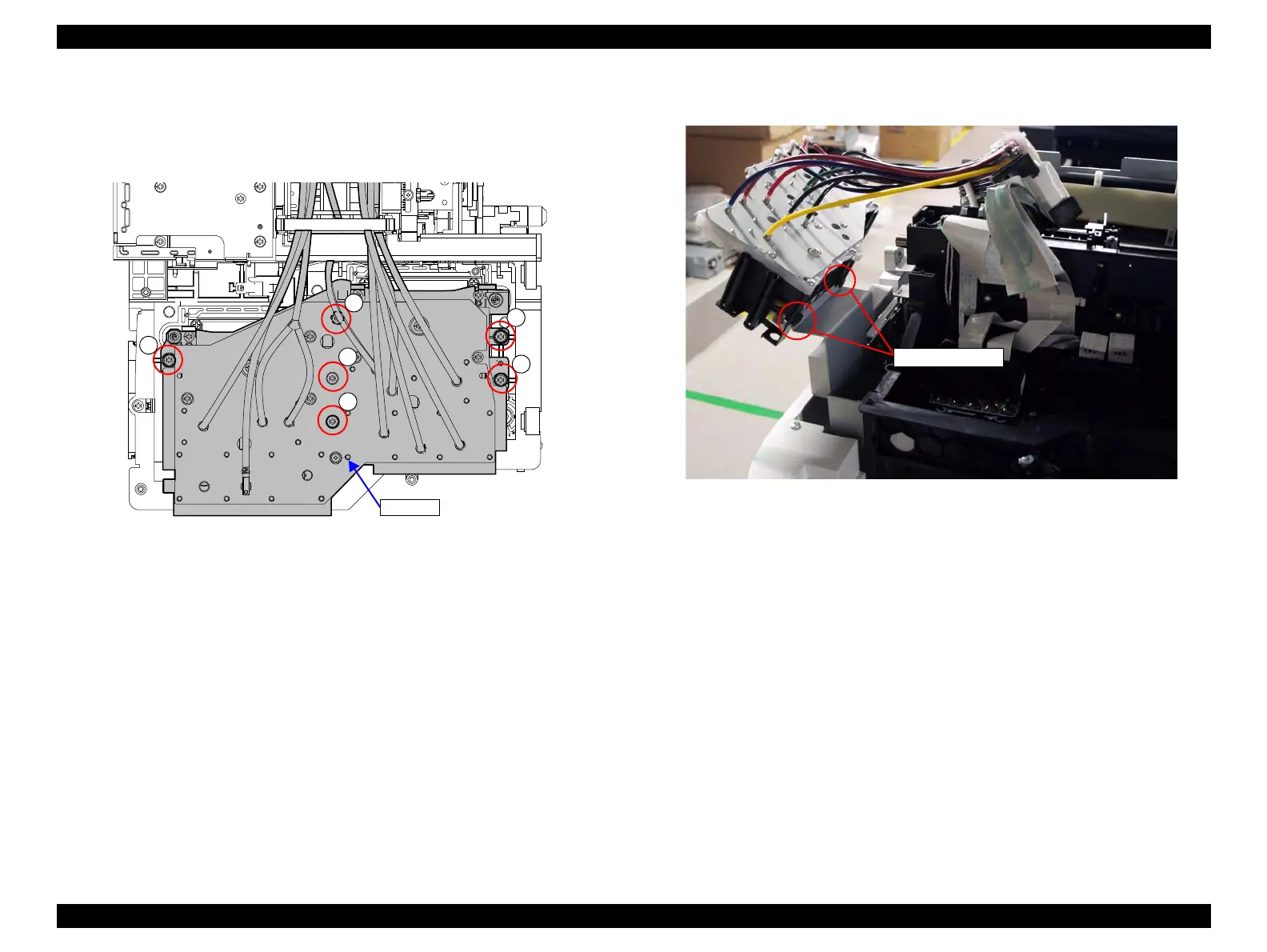

Figure 3-80. Removing the Duct CR
10. Attach the hooks of the Duct CR to the frame as shown.
Figure 3-81. Temporarily Placing the Duct CR
Duct CR
B
B
B
B
B
B
Attach the hooks
