SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 198
SE Group Confidential (Related Staff Only)

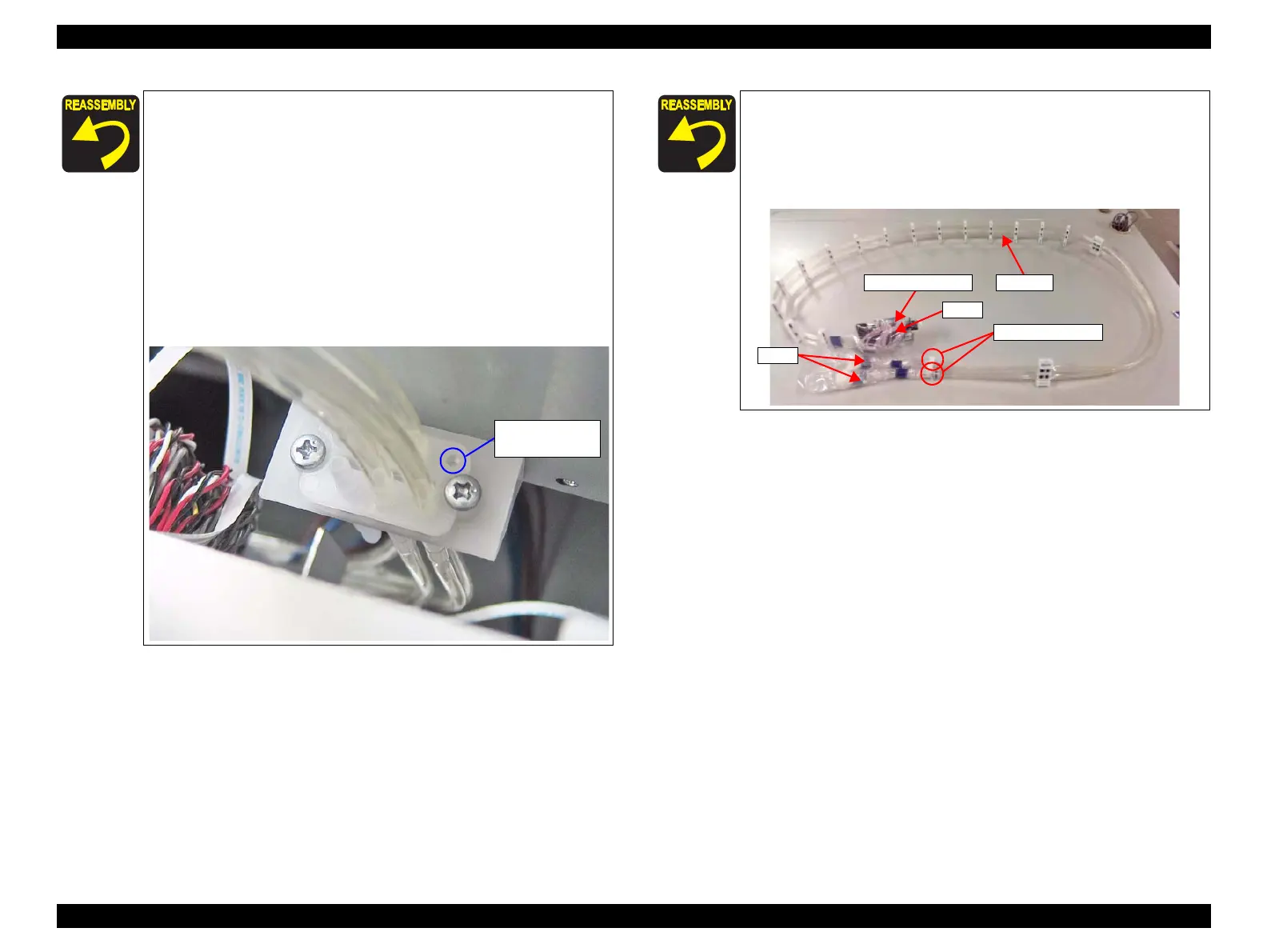

When installing the Ink Tubes, confirm that there is no torsion
of the Ink Tubes. (See Figure3-142
)
When installing the joint, insert the dowel into the positioning
hole.
Secure the screws that secure the Ink Supply Tube with
tightening torque about 0.29 ± 0.05 Nm.
Before attaching the Joint Rubbers, let them get wet with
cleaning liquid (CL14).
Confirm there are no foreign objects attached on the Joint
Rubbers.
If the Joint Rubbers are deformed, restore it to its original
shape manually.
Positioning hole
and dowel
Before installing the new Ink Tube, be careful of the following
points.
Loosen the two each screws of the joints, and remove the tubes.
Since ink still remains in the removed tube, make sure to
dispose of it according to local regulations.
Ink Tube
Tube
Joints and screws
Joints and screws
Tube
To Next Page
