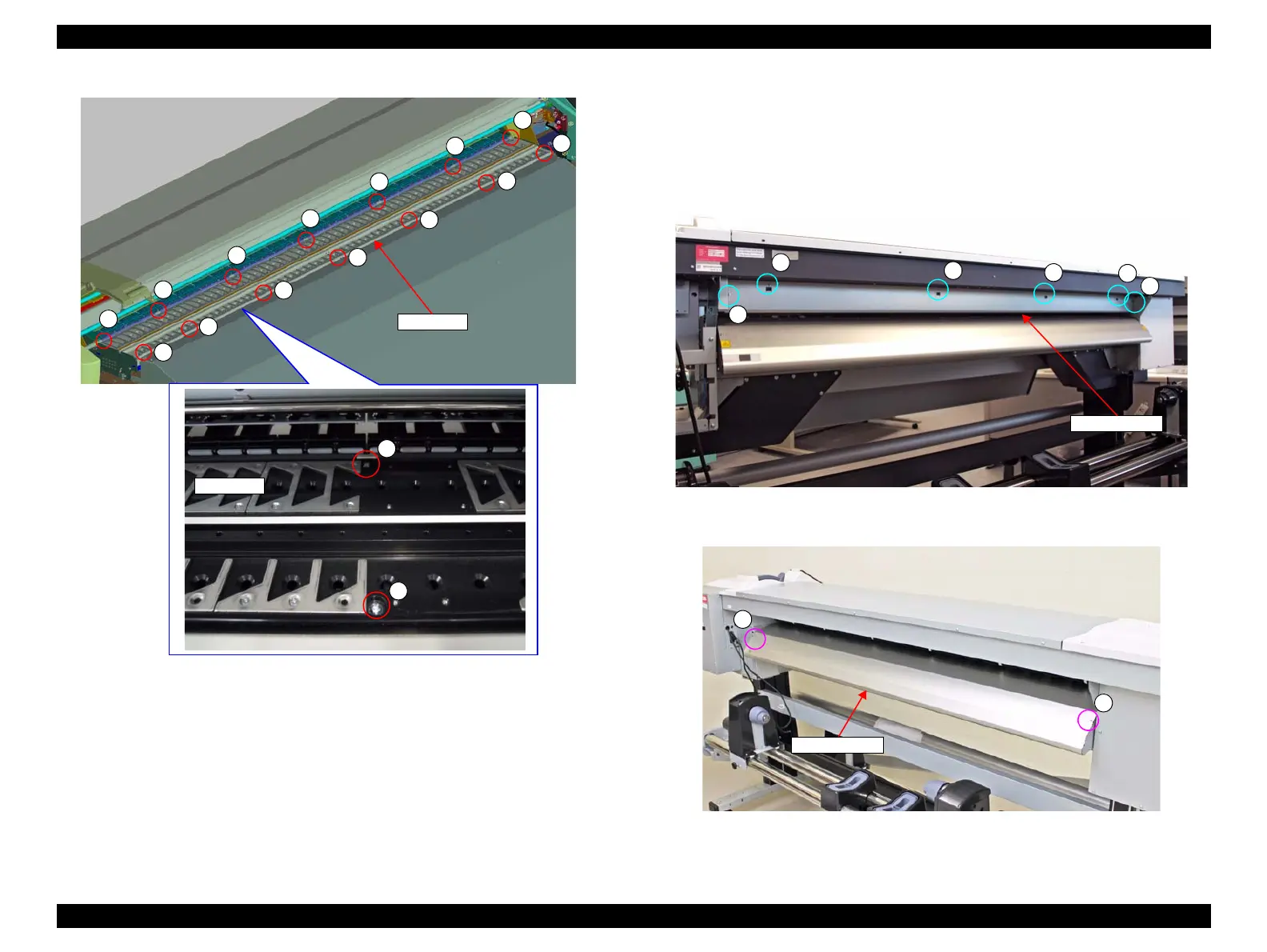

Figure 3-179. Removing the Platen
6. Remove the six screws, and remove the Rear Cover.
D) Silver M3x8 S-tite screw: 6 pcs
7. Remove the two screws, and remove the Loading Guide.
E) Silver M3x8 S-tite screw: 2 pcs
Figure 3-180. Removing the Rear Cover
Figure 3-181. Removing the Loading Guide
Platen
C
C
Platen
C
C
C
C
C
C
C
C
C
C
C
C
C
C
D
D
D
D
D
D
Rear Cover
E
E
Loading Guide
