3.4.9.3 Roll Paper Holder
1. Remove the C-ring (φ25).
2. Remove the screw, and remove the plate.
A) Silver M3x8 P-tite screw: 1 pcs
3. Remove the screw that secures the Roll Paper Holder.
B) Special screw: 1 pcs
Figure 3-201. Removing the Roll Paper Holder

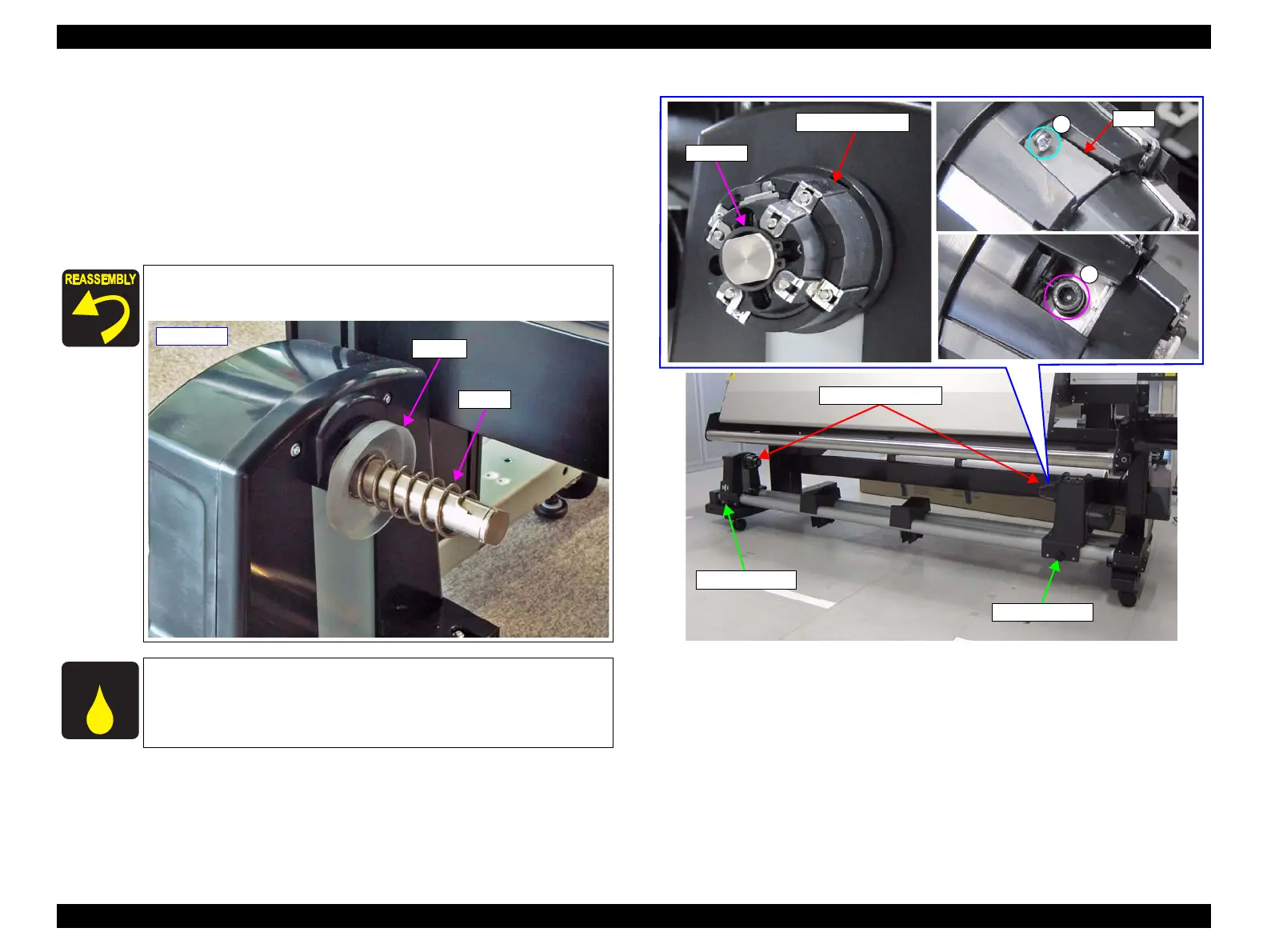

Before installing the Roll Paper Holder on the left, install the
holder and the spring as shown in the figure below.
LubricationLubrication
When replaced with a new part, make sure to lubricate the new one
referring to “5.6 Lubrication” (p387).
- Left side -
Holder
Spring
Right Reel Unit
Left Reel Unit
Roll Paper Holder
C-ring
Roll Paper Holder
A
Plate
B
