6. Check the CR TIMING BELT while the CR UNIT is running.
The belt runs in the middle of the driven pulley:
Finish. Perform the <belt tension measurement> (Step 9).
When the belt moves back and forth between both sides or runs on either side:
Go to Step 7.

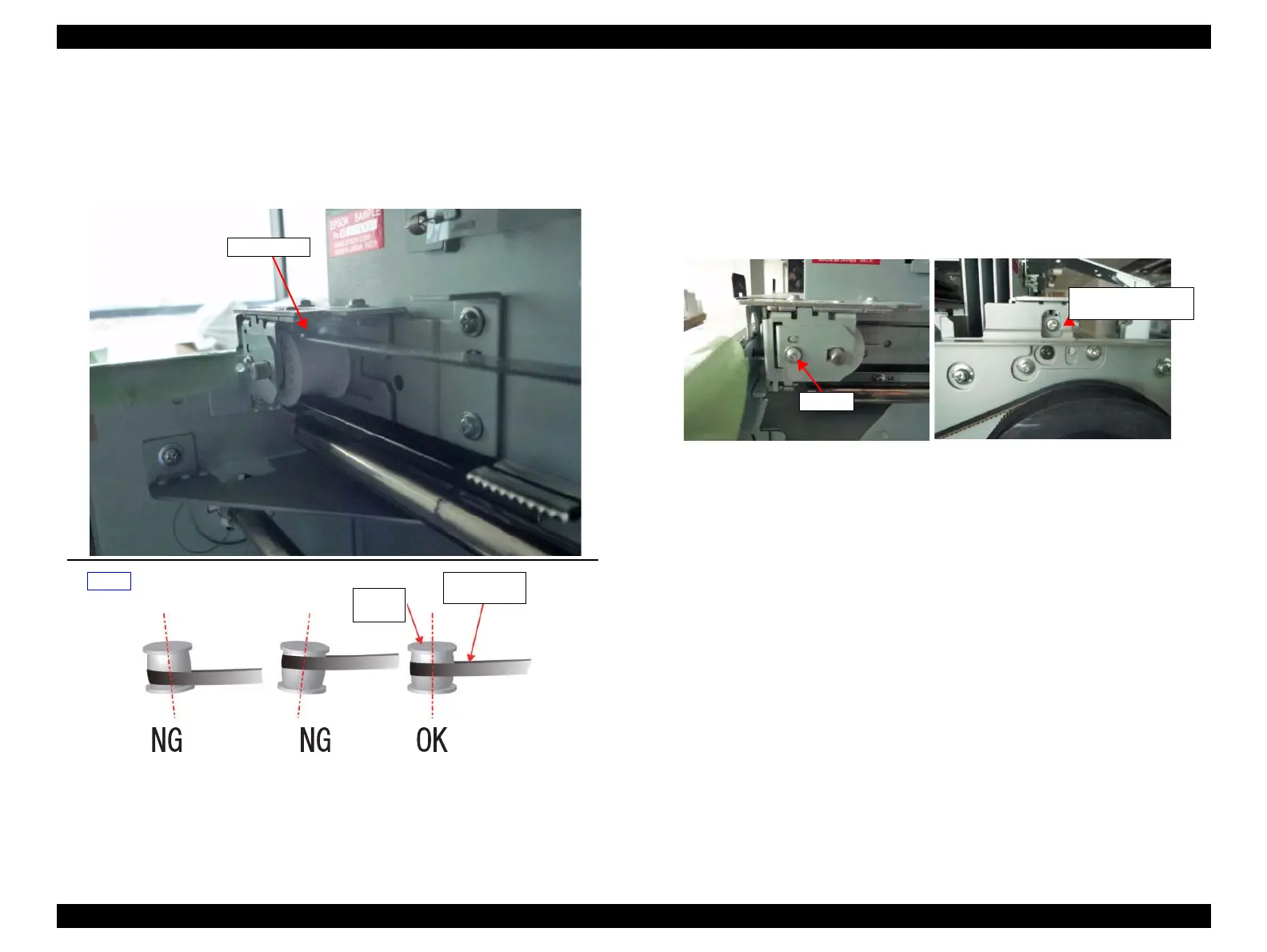

Figure 4-15. Slant Adjustment of Driven Pulley
7. Loosen the screw A of the driven pulley holder.
8. Adjust the Driven Pulley slant with the slant adjusting screw. After adjusting the
slant, attach the screw A and return to Step 4.
The belt leans to the rear side of the driven pulley:
Rotate the screw in a counterclockwise.
The belt leans to the front side of the Driven Pulley:
Rotate the screw in a clockwise.
Figure 4-16. Screw A and slant adjusting screw
CR TIMING
BELT
Driven
pulley
Driven pulley
Upper
Slant adjusting
screw
Screw A
