Epson SC-F9200 series Service Manual

SC-F9200 Series Revision C
ADJUSTMENT Head Related Checks and Adjustments 318
SE Group Confidential (Related Staff Only)
24. Perform the Step14 to Step19.
25. When finished, click [Finish] and turn the printer OFF.
C H E C K
P O I N T

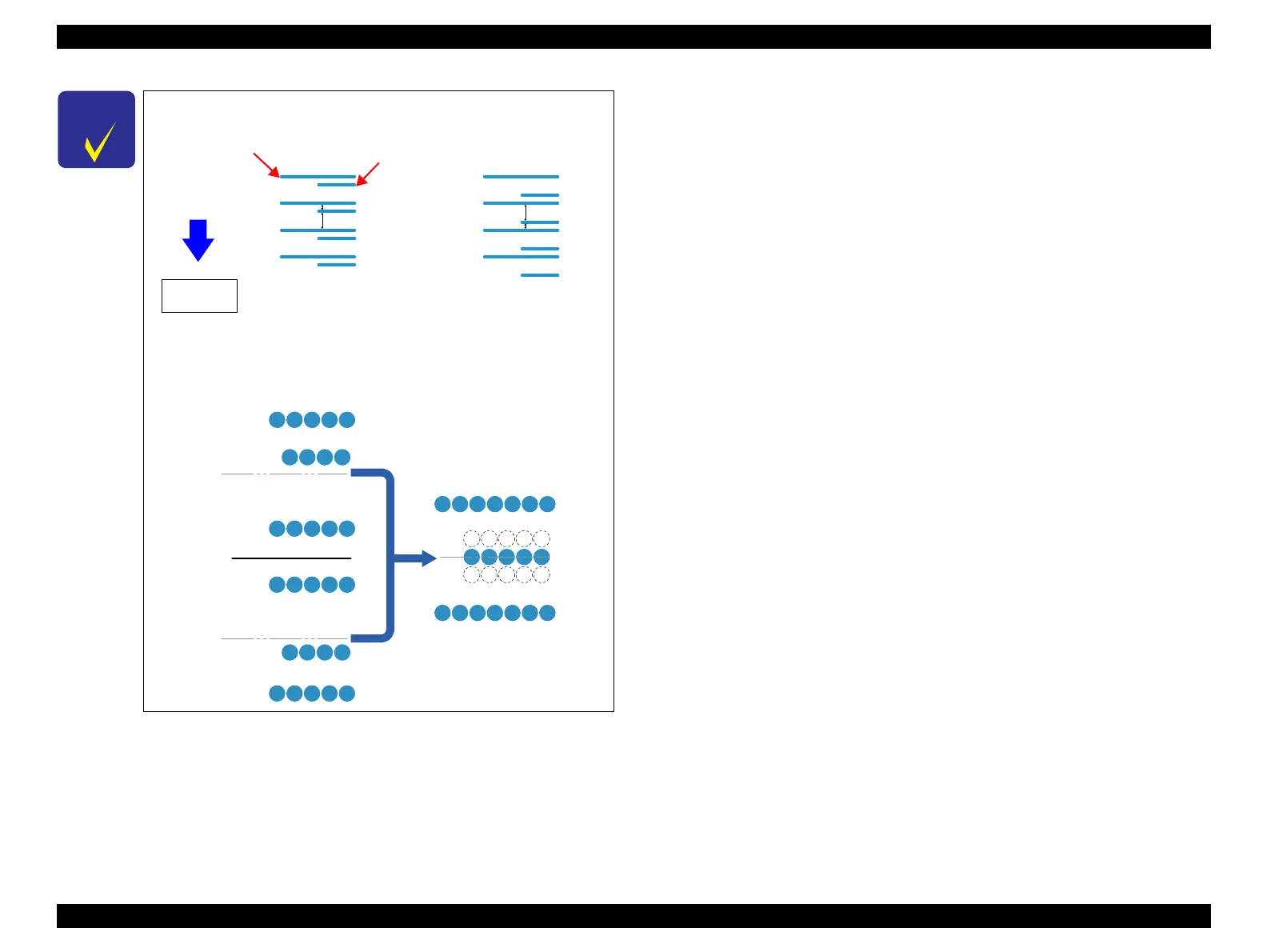

 For which direction to turn the knob, see below.
 The lines move about one-dot’s width when the knob is moved
by two notches.
If C line (nozzle C) is
close to the top edge of
the C line (nozzle J)
turn clockwise
If C line (nozzle C) is
close to the bottom edge
of the C line (nozzle J)
turn counterclockwise
C line (nozzle C)
C line (nozzle J)
Paper feed
direction
