Epson SC-F9200 series Service Manual

SC-F9200 Series Revision C
ADJUSTMENT Head Related Checks and Adjustments 317
SE Group Confidential (Related Staff Only)
20. Click [Run]. The adjustment pattern is printed.

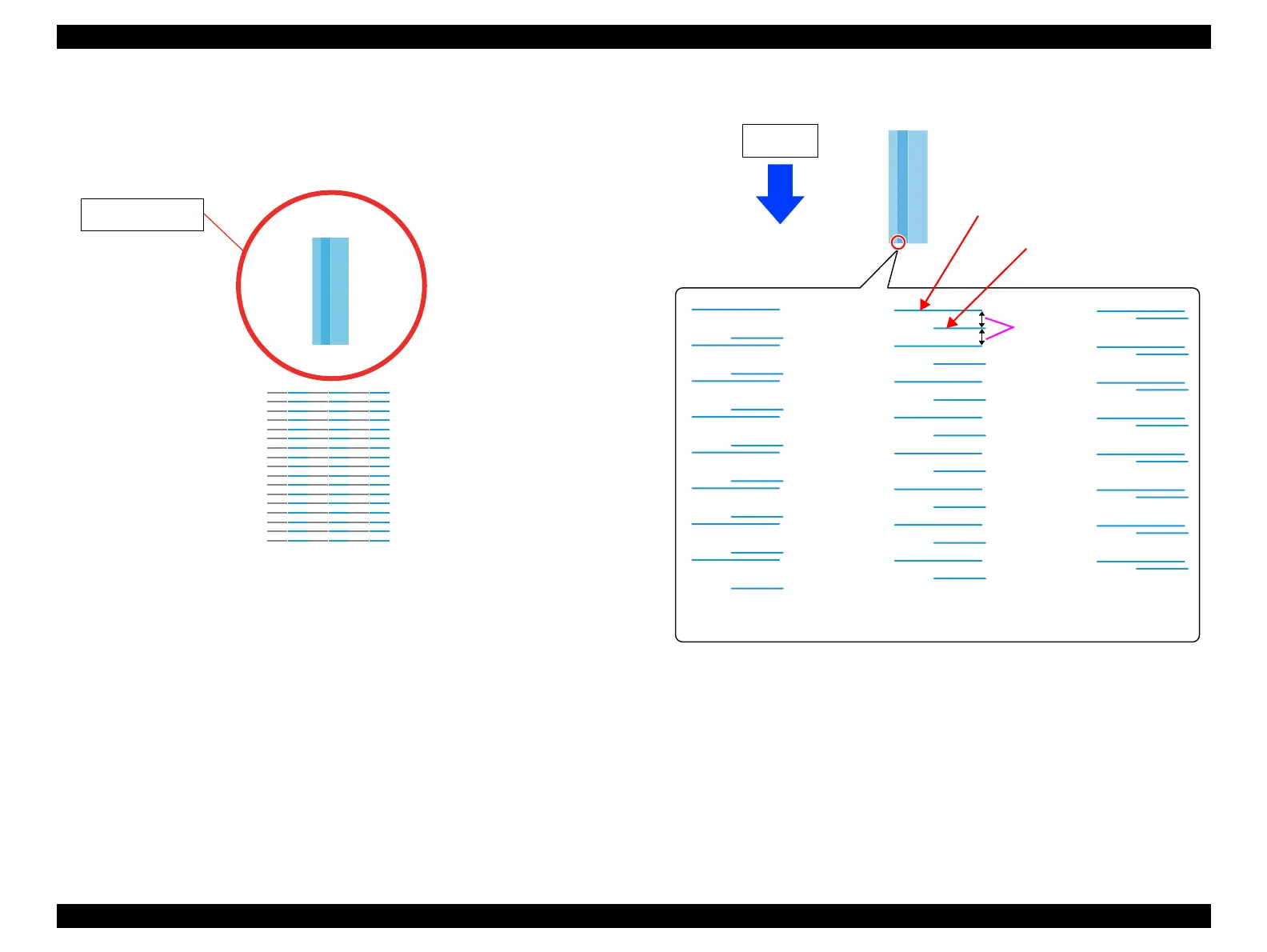

21. Check the pattern shown with the red circle and make sure the spaces between the
C lines (nozzle C) and the C lines (nozzle J) are equal.
Figure 4-39. Judgement
22. Perform the Step7 to Step12.
23. Turn the Adjustment Knob to correct the head inclination (refer to Step13).
Adjustment pattern
(Fine adjustment)
OK NGNG
Evenly
divided
Paper feed
direction
C line (nozzle C)
C line (nozzle J)
