Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Parts Diagram 82
SE Group Confidential (Related Staff Only)

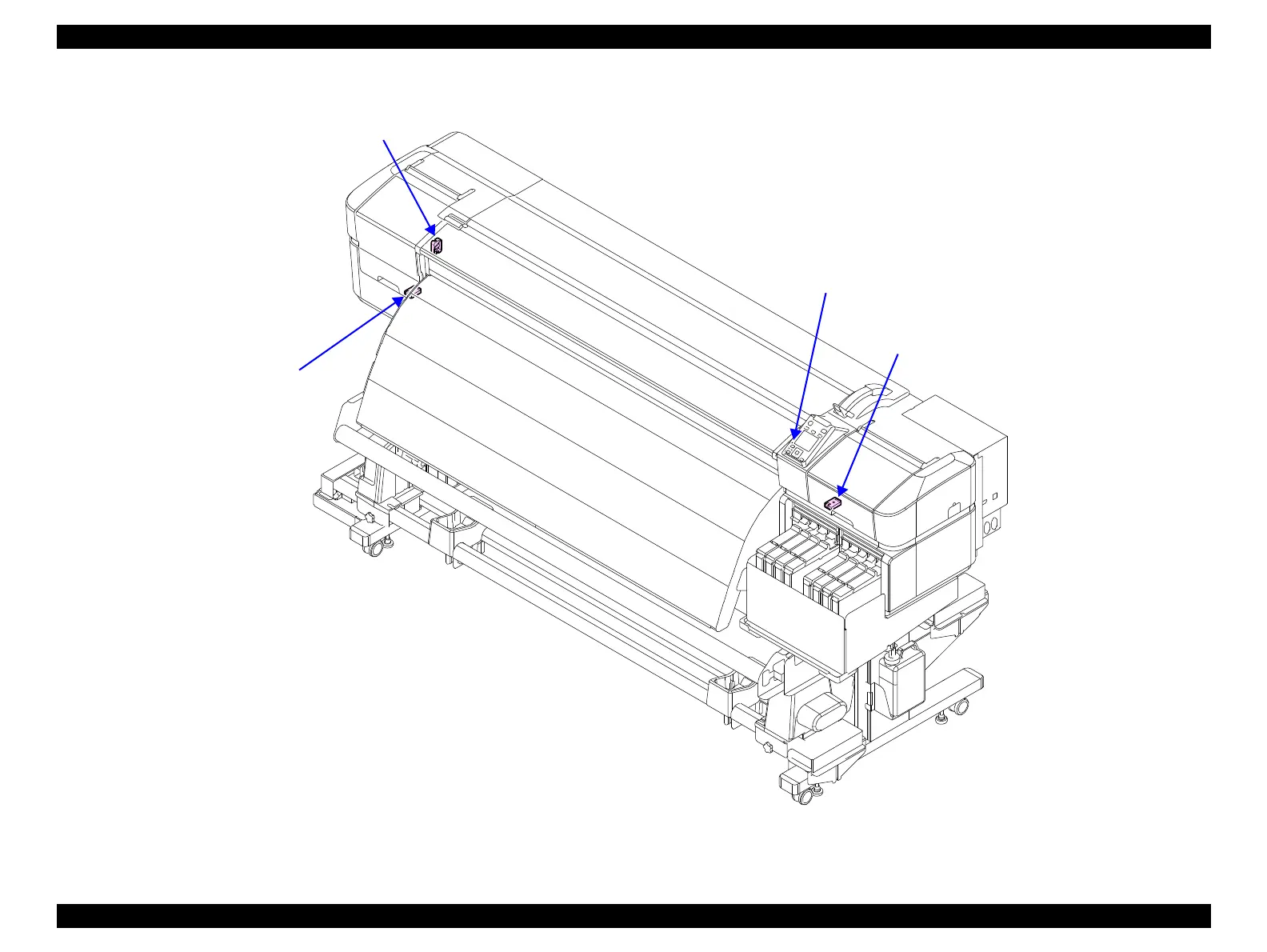

Figure 3-3. Housing
 R Maintenance Cover Sensor (p. 118)
Detects the Open/Closed status of the Right
Maintenance Cover.
 Front Cover R Sensor (p. 120)
Detects the Open/Closed status of the Front Cover.
 Front Cover L Sensor (p. 122)
Detects the Open/Closed status of the Front Cover.
 L Maintenance Cover Sensor (p. 113)
Detects the Open/Closed status of the Left
Maintenance Cover.
