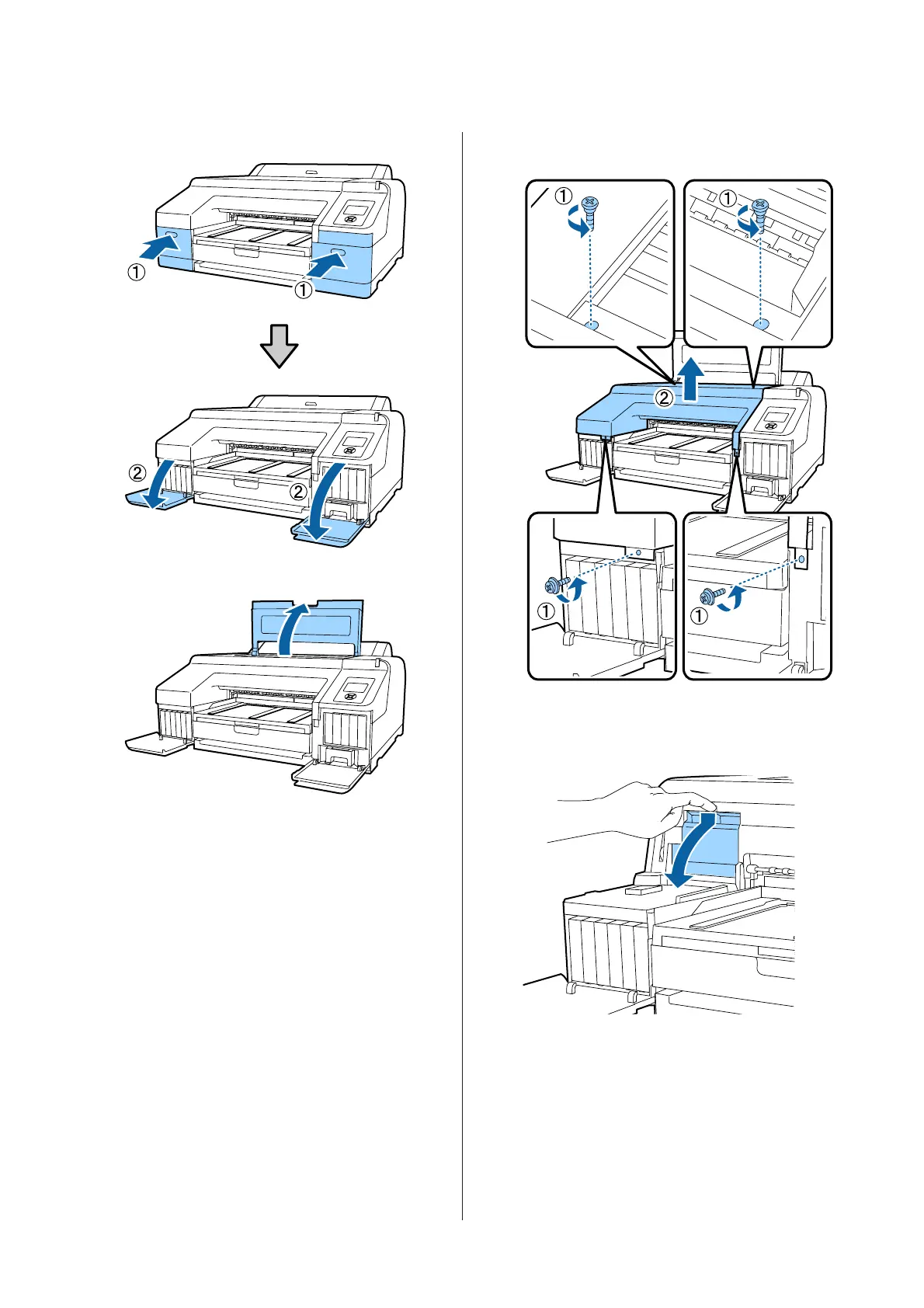

B
Open the cartridge covers on the left and right.
C
Open the printer cover.
D
Remove the front cover.
Use a cross-head screwdriver and remove the
four screws holding the front cover in place.
Remove the front cover.
Remove when the optional SpectroProofer is
installed.
E
Open the cutter cover.
Pull the cover towards you while holding down
the lock as shown in the figure to open the cover.
F
Remove the old cutter from the printer.
Loosen the screw holding the cutter in place
using a cross-head screwdriver and pull the
cutter straight out.
SC-P5000 Series User's Guide
Maintenance
135
