DISASSEMBLY & ASSEMBLY Parts Diagram 70
Confidential

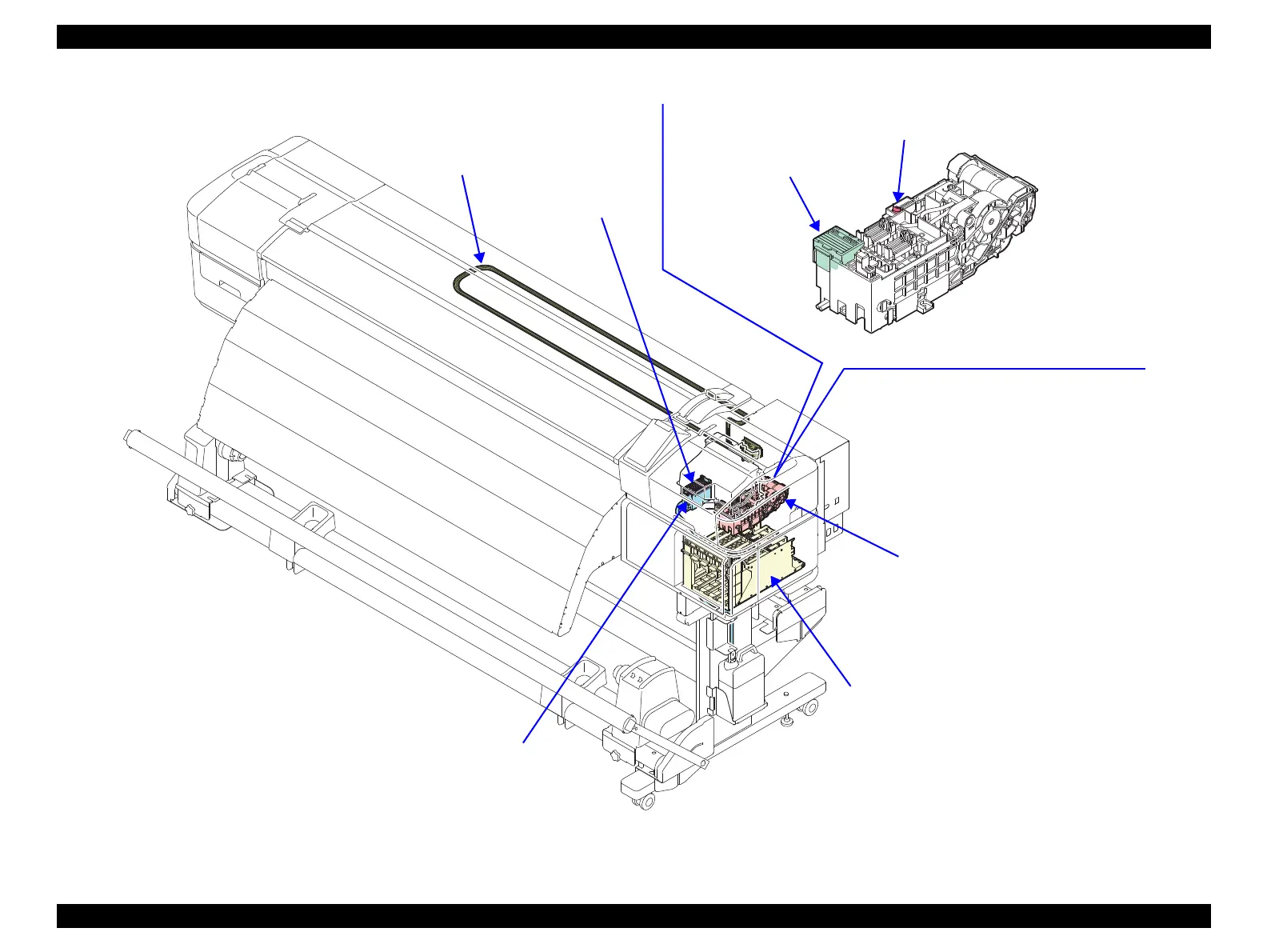

Figure 3-6. Ink System Mechanism
 Pump Cap Unit (p. 141)
Includes the wiper section and the
sucking section, and maintains the
Print Head.
 IC Holder (p. 143)
Stores ink cartridges and includes the following
mechanism and parts.
• Pressure mechanism (Sensor/Motor)
• Ink Level Sensor
•LED
• Cartridge Cover Sensor
•SUB-G Board
 Ink Tube (p. 147)
 Flushing Box (p. 149)
 Wiper (p. 84)
Cleans the nozzle surface of the Print Head.
 Wiper Cleaner (p. 84)
Wipes off ink attached on the Wiper.
 Flushing Pad (p. 85)
