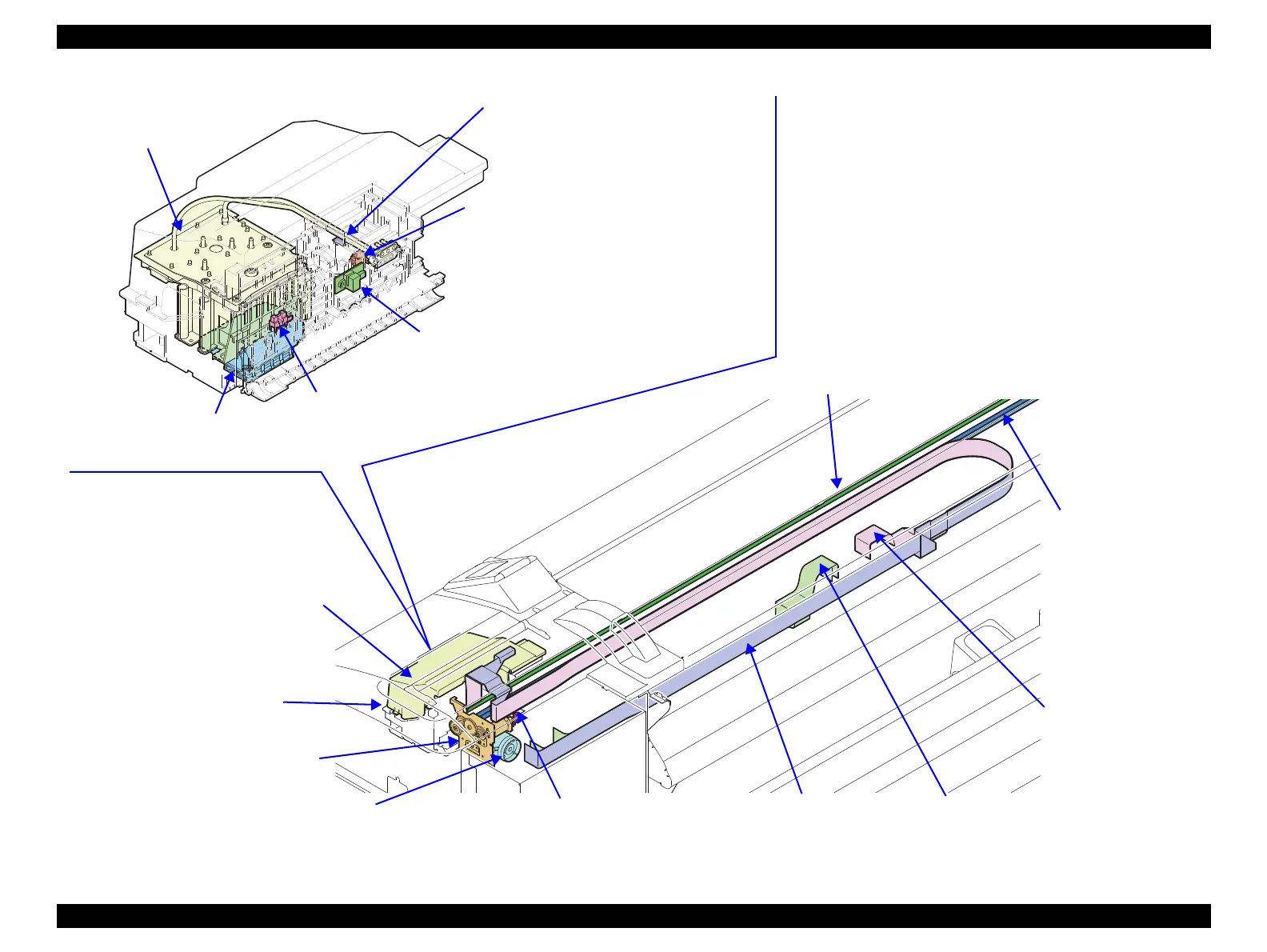

Figure 3-5. Carriage Mechanism
CR Cover (p. 119)
Damper Kit (p. 120)
Print Head (p. 121)
CR Scale (p. 130)
Head Relay FFC (p. 126) (x2)
CR Timing Belt (p. 132)
CR Motor (p. 134)
The motor to drive the CR Unit.
CR HP Sensor (p. 136)
Detects the home position of the CR Unit.
CR Encoder (p. 137)
Detects the pattern of the CR Scale to control the
position of the CR Unit.
APG Motor (p. 138)
PG HP Sensor (p. 140)
Detects the origin position of the
platen gap.
PW Sensor (p. 155)
Detects the width of paper on the platen. This is a
reflective photo interrupter and detects the
difference of the amount of reflection between
paper (white) and the platen (black).
IM Sensor (p. 157)
Reads print patterns in the following adjustments.
• Auto Bi-D Adjustment
• Auto Uni-D Adjustment
• Auto Nozzle Check
•Auto PF Adjustment
• Head Alignment Adjustment
CR Unit (p. 151)
Head FFC (p. 123) (x2)
CR FFC (p. 128)
