Epson STYLUS 3000 Service Manual

EPSON Stylus COLOR 3000
Rev. A
4-
3
NO
YES
NO
YES
YES
YES
NO
NO
Start
Shift the CR to the left end.
Set the PG lever to "0".
Is the left PG OK?
Set the PG lever to "+".
Shift the CR to the right end.
Widen the PG.
Narrow the PG.
Return to the main flow.
Is the right PG OK?
Set the PG lever to "+".
Shift the CR unit to the left end.
Set the PG lever to "0".
Is the left PG OK?
END
Set the PG lever to "+".
Set the PG lever to "0".
Does a
1.24-mm Gauge
go through?
Does a
1.28-mm Gauge
PG Adjustment
PG Adjustment
PG Adjustment
PG Adjustment
NO
YES
go through?

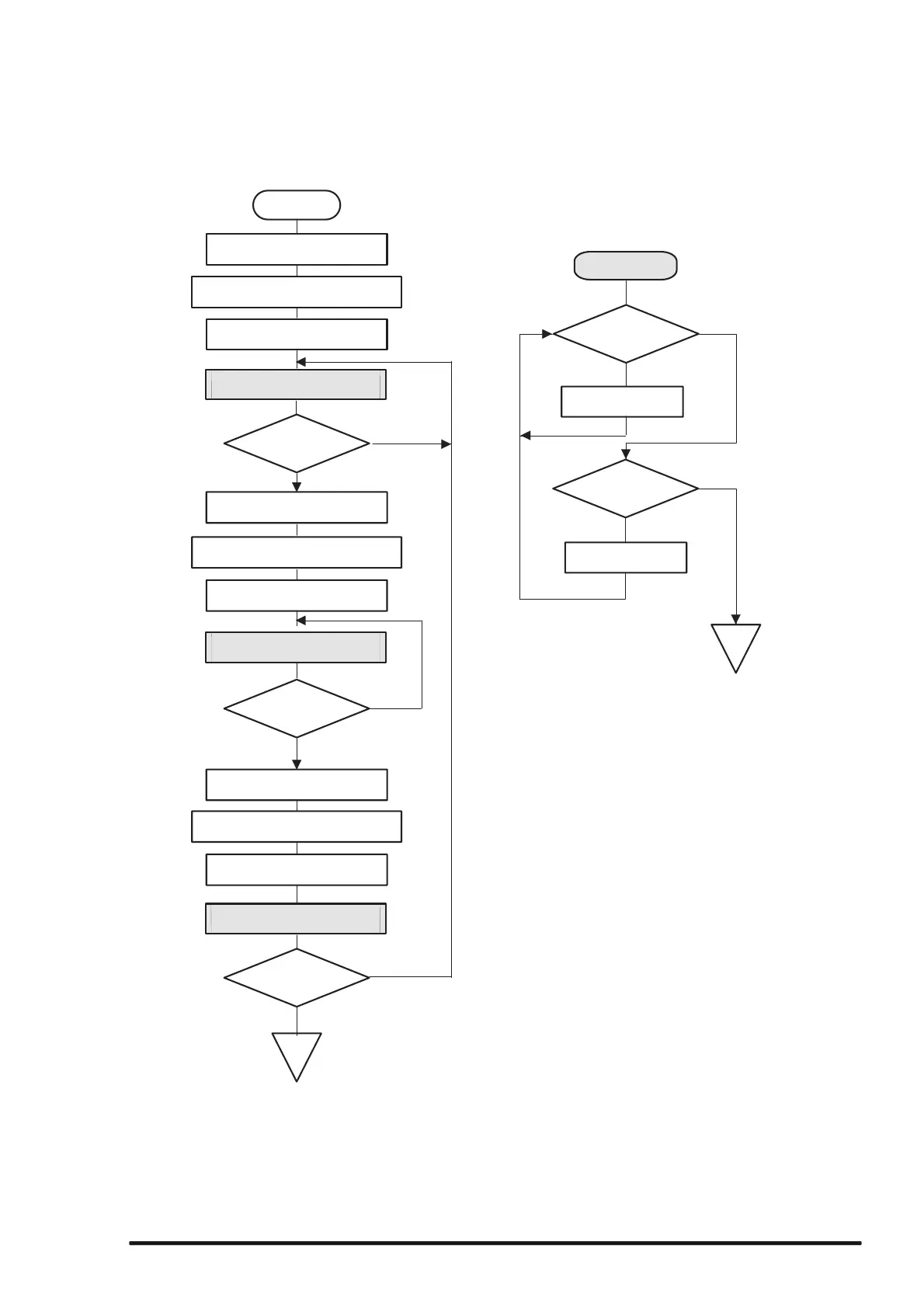

Figure 4-2. Platen Gap Adjustment Flowchart
