2.2.6 Ink System
The ink system for this printer is composed of the following mechanisms.
 Ink cartridge
 Pump mechanism
 Capping mechanism
 Waste ink drain pads
 Wiping mechanism

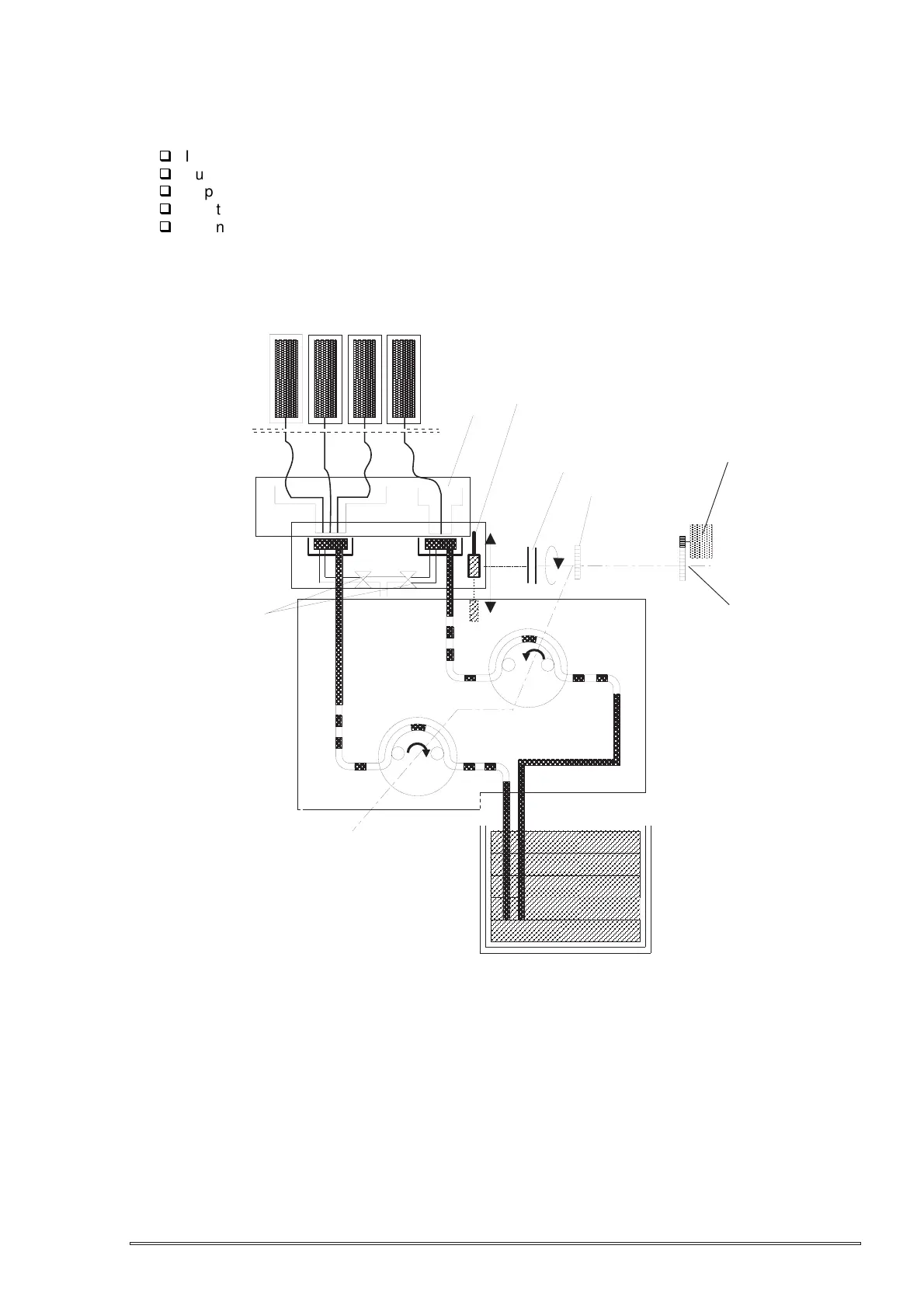

Figure 2-9 shows the block chart of the ink system. flowchart
Ink Cartridges
Cleaner Head for
Black and Color Inks
Clutch Unit
Combination Gear
Gear
Pump Unit
Pump 1
Pump 2
Air Valves
Waste Ink Drain Pads
Pump Motor
CR Unit
Figure 2-9. Ink System Mechanism
