Disassembly and Assembly
Rev. A
3-1
0
3.2.5 HP Sensor Removal
1. Remove the upper housing. (See Section 3.2.1.)
2. Disconnect the connector cable for the HP sensor from the sensor connector.
3. Using tweezers, release the hook securing the HP sensor to the HP sensor holder and remove the HP
sensor.
HP Sensor Holder
HP Sensor Connector Cable
Tweezers
HP Sensor
HP Sensor Holder
HP Sensor

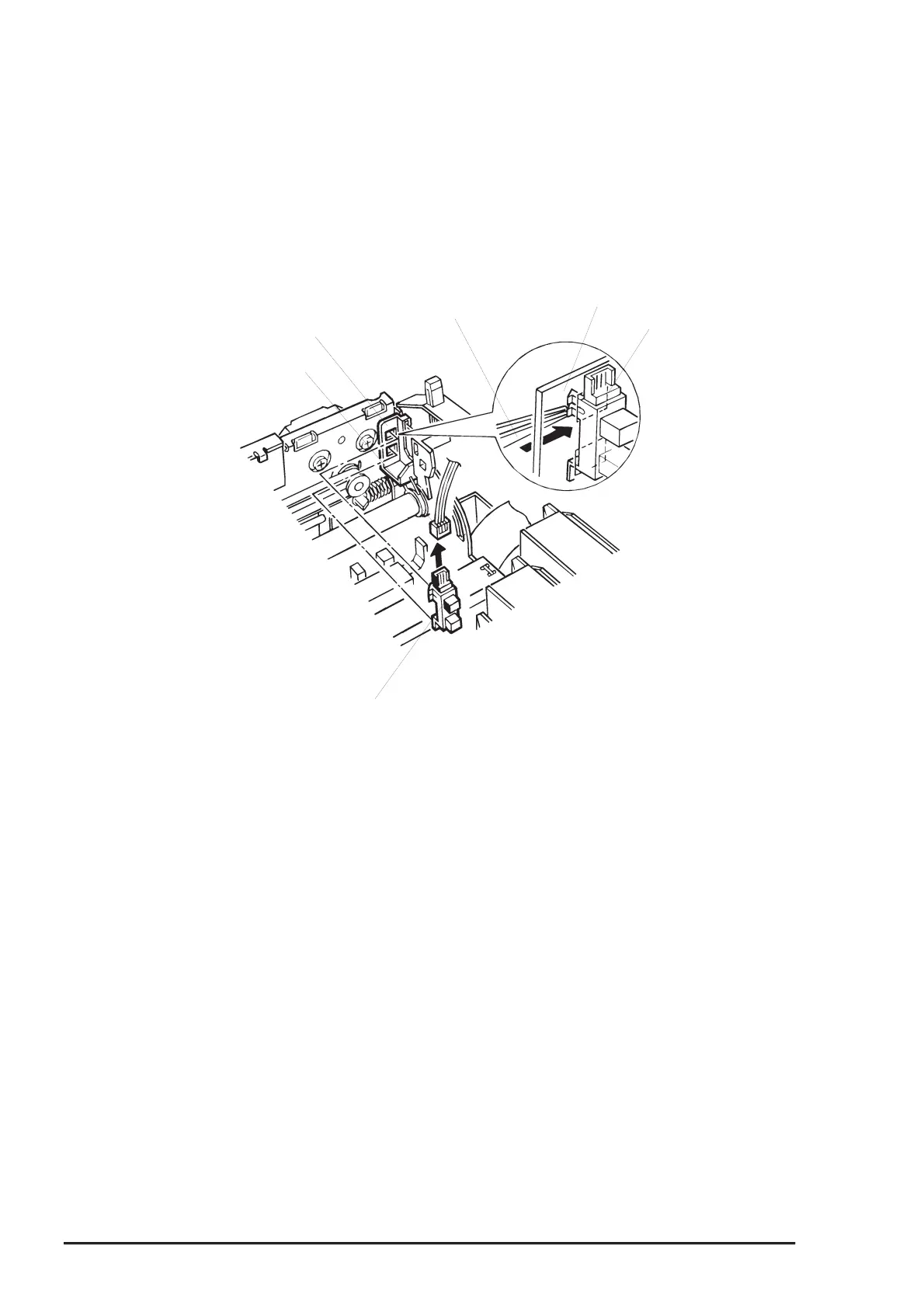

Figure 3-7. HP Sensor Removal
