4.1.9.1 PQ Sensor Adjustment
 Follow the steps exactly in the way instructed. Otherwise the fatal error will occur.
 Inaccuracy in this adjustment does not guarantee the proper operation of the printer.
1. Enter the
“Sensor Check”
menu. (See Section 4.1.9.)
2. Move the cursor using ↑ or ↓ key to select
“1.CR-PWS”
and press “Return key.
3. Move the cursor using ↑ or ↓ key to select
“2. ASF Quantity”
. and press “Return” key.
4. Remove paper and press “Return” key.
5. Set a stack of paper * or the paper quantity detective adjust tool on the right edge guide in the ASF.
Then press “Return” key, and the Sensor check menu appears.
Note) Stack of paper: With a thickness of 9 mm to 9.1 mm or approximately 100 sheets of 64-g paper
(17-lb. paper)
CAUTION
PQ Sensor Lever
Paper Quantity Adjusting Tool
Right Edge Guide
9 mm

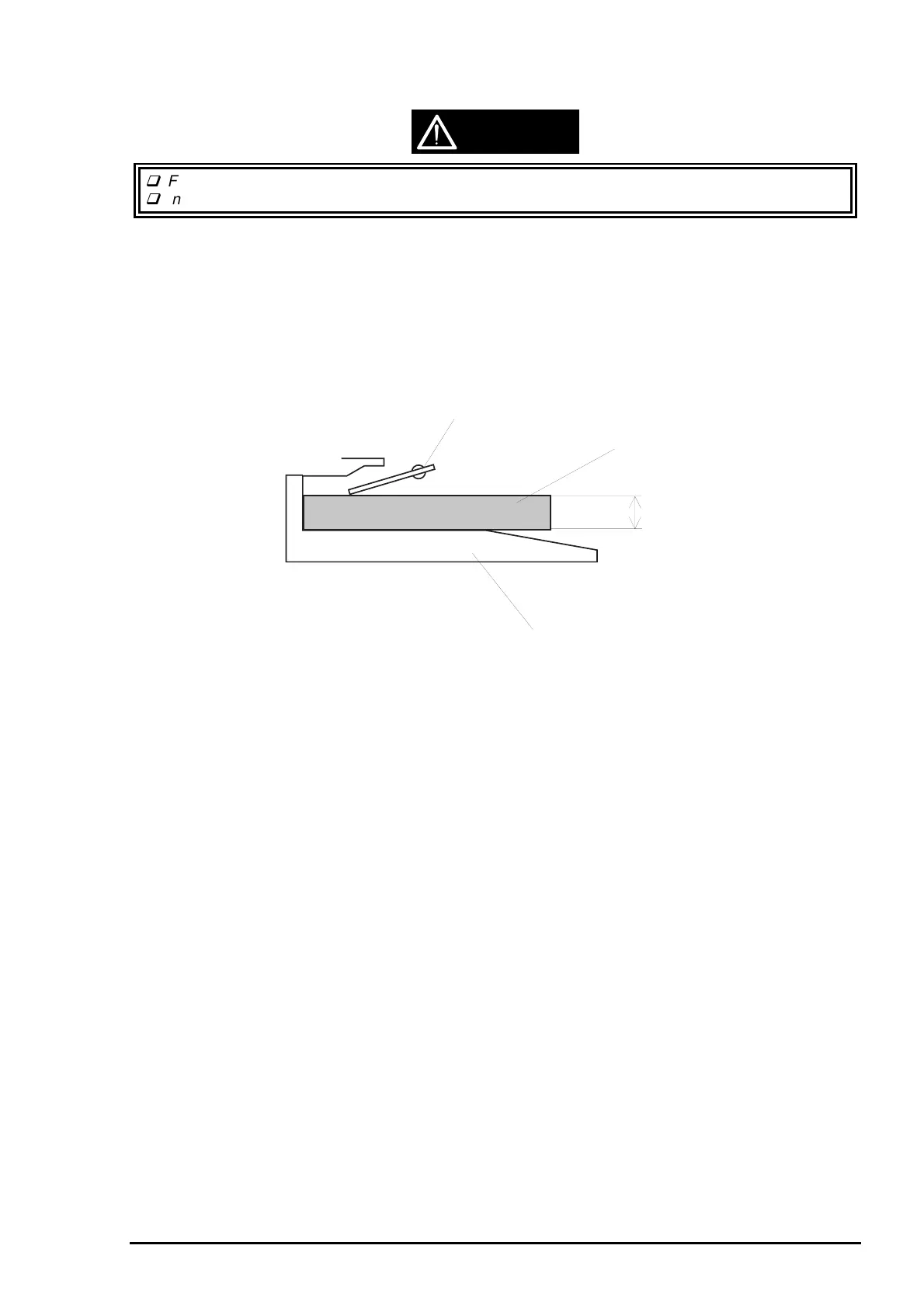

Figure 4-10. Setting the Paper Quantity Detective Adjust Tool
