Epson STYLUS 3000 Service Manual

Disassembly and Assembly
Rev. A
3-1
8
3.2.11.2 Pump Motor Assembly Removal
1. Remove the printer mechanism unit. (See Section 3.2.6.)
2. Remove the connector cable for the pump motor assembly securing the pump motor to the printer
mechanism unit from the clump.
3. Remove 2 screws (CBS, 3x6) securing the pump motor assembly to the sub frame assembly. Then
remove the pump motor assembly.

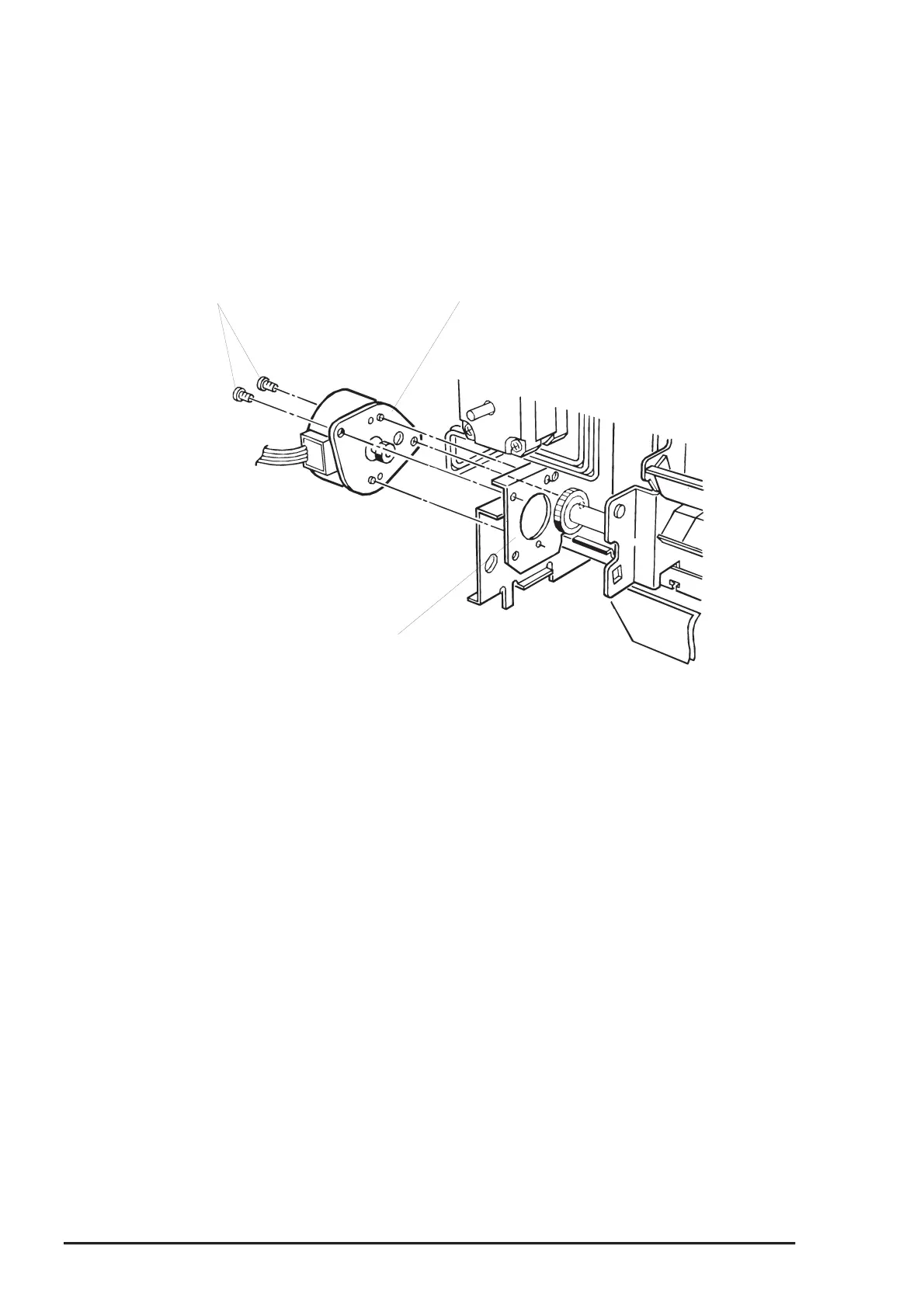

CBS Screws (3X6)
Pump Motor Assembly
Sub Frame Assembly
Figure 3-15. Pump Motor Assembly Removal
