Epson STYLUS 3000 Service Manual

EPSON Stylus COLOR 3000
Rev. A
3-21
3.2.11.5 Release Sensor Removal
1. Remove the printer mechanism unit. (See Section 3.2.6.)
2. Using tweezers, release 1 hook securing the release sensor to the left frame unit. Then remove the
release sensor.
Release Sensor
Left Frame Unit
Hook
Release Sensor Connector Cable

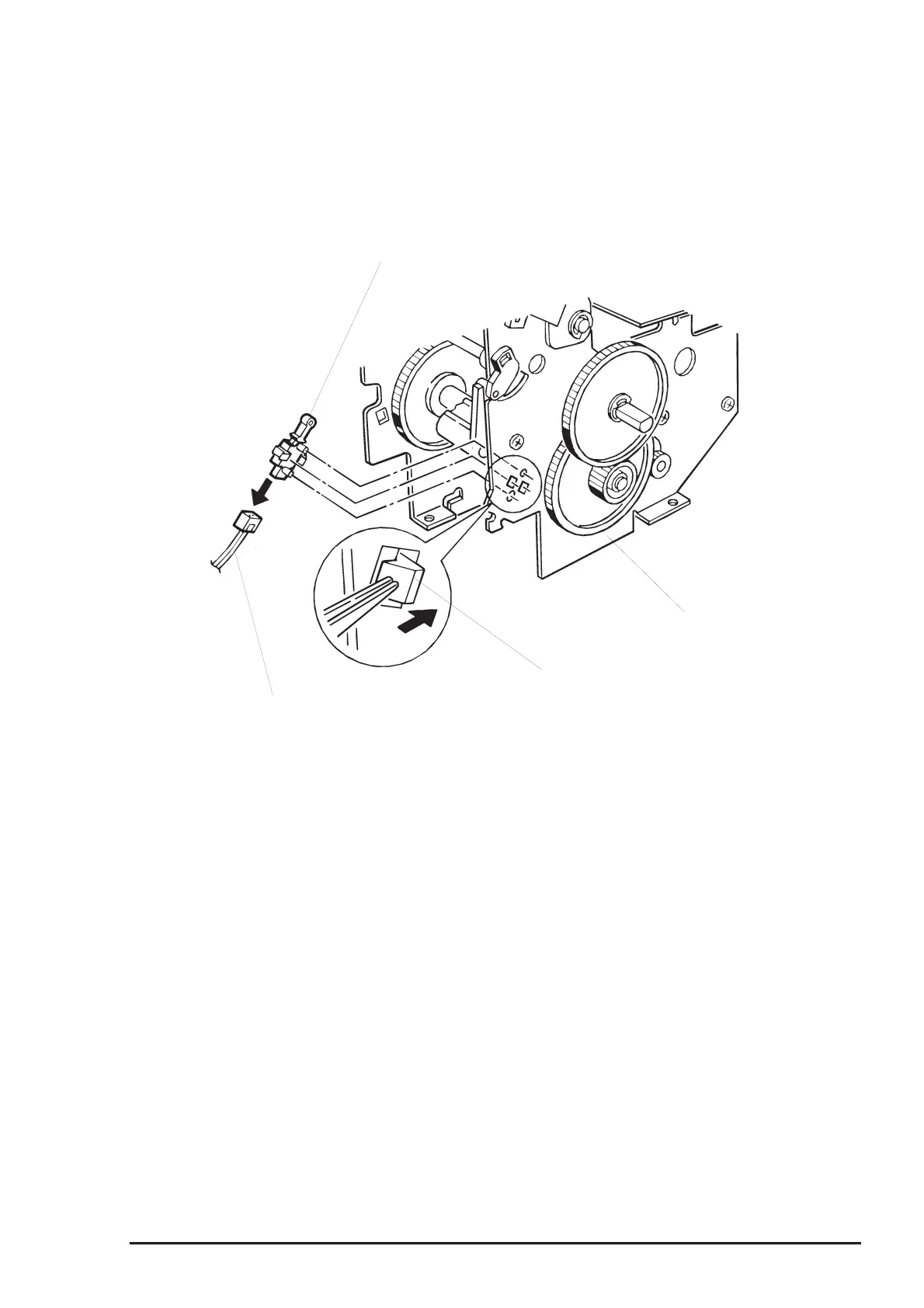

Figure 3-18. Release Sensor Removal
