Epson STYLUS 3000 Service Manual

Disassembly and Assembly
Rev. A
3-3
0
3.2.11.12 Ink Sensor Assembly Removal
1. Remove the printer mechanism unit. (See Section 3.2.6.)
2. Remove the paper eject frame unit. (See Section 3.2.11.6.)
3. Remove the pump unit. (See Section 3.2.11.7.)
4. Remove the ink cartridge holders. (See Section 3.2.11.11.)
5. Remove the ink sensor connector cables from the clump on the ink cartridge holder mounting plate.
6. Remove 1 screw (CBS, 3X10) securing the ink sensor assembly to the ink cartridge holder mounting
plate. Then remove the ink sensor assembly.
3.2.11.13 Ink Cartridge Sensor Assembly Removal
1. Remove the printer mechanism unit. (See Section 3.2.6.)
2. Remove the paper eject frame unit. (See Section 3.2.11.6.)
3. Remove the pump unit. (See Section 3.2.11.7.)
4. Remove the ink cartridge sensor connector cables from the clump on the ink cartridge holder.
5. Remove the ink cartridge holder unit. (See Section 3.2.11.11.)
6. Remove 2 screws (CB, 3X10) securing the pin holder to the pin holder assembly and 2 hexagon nuts
(M3). Then remove the pin holder.
7. Remove 1 pan camera B tight screw (2X10) securing the ink cartridge sensor assembly to the pin
holder. Then remove the ink cartridge sensor assembly.

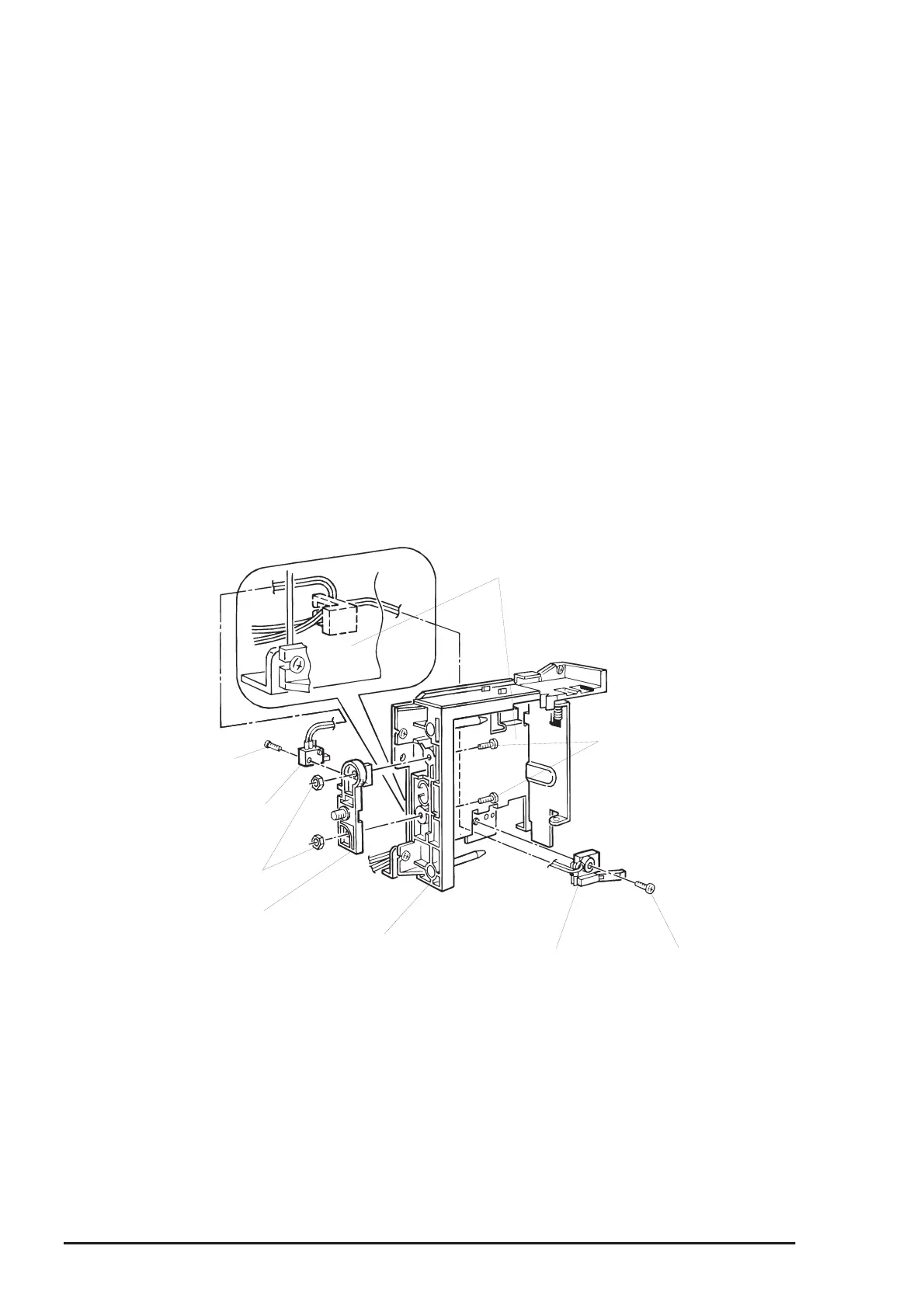

Ink Cartridge Sensor Assembly
Hexagon Nuts (M3)
Ink Cartridge Holder Fixing Plate
CB Screws (3X10)
CBS Screw (3X10)
Ink Sensor Assembly
Pin Holder
Pin Holder Assembly
Pan Camera B Tight Screw (2X10)
Figure 3-26. Ink Sensor /Ink Cartridge Sensor Assembly Removal
