Epson STYLUS 3000 Service Manual

EPSON Stylus COLOR 3000
Rev. A
3-1
9
3.2.11.3 PF Motor Assembly Removal
1. Remove the printer mechanism unit. (See Section 3.2.6.)
2. Remove the connector cable for the PF motor assembly from the clump attached to the printer
mechanism unit.
3. Remove 2 screws (CBS, 3x6) securing the PF motor assembly to the left frame unit. Then remove the
PF motor assembly.
WORK POINT
The PF motor pinion gear is made precise and easy to rust. Therefore, be careful not to
touch it with your bare hands or bump it against other objects.
CBS Screws (3x6)
PF Motor Assembly
Left Frame Unit

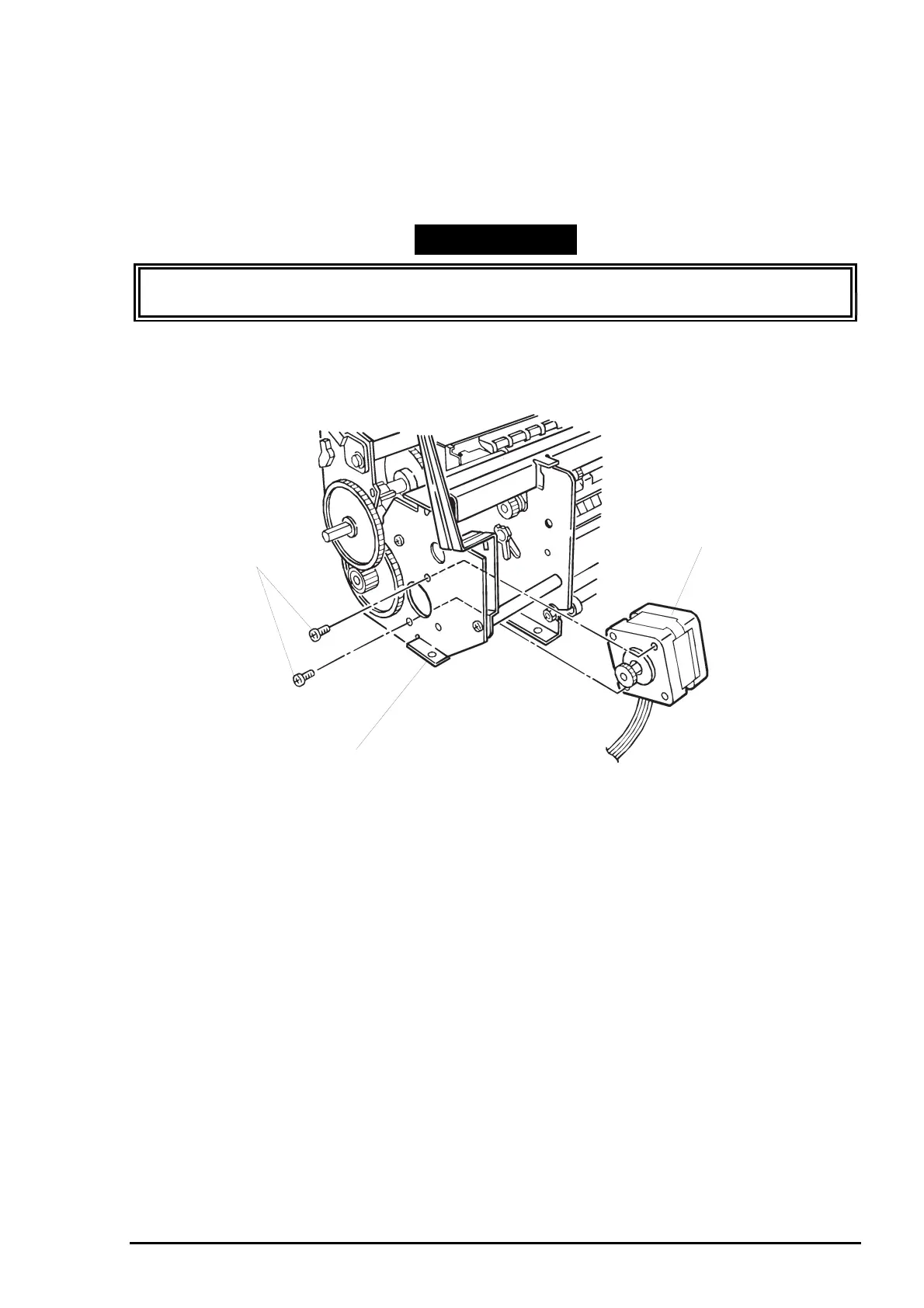

Figure 3-16. PR Motor Assembly Removal
