Epson STYLUS 3000 Service Manual

EPSON Stylus COLOR 3000
Rev. A
3-1
5
3.2.9 Main Waste Ink Drain Pad Removal
Note) In case the value for the protect counter A* has reached the limit and the maintenance error is
indicated, or the value has exceeded 60,000, replace the waste ink drain pads on the agreement
with your customer.
*: The value for the protect counter A can be found on the sheet printed during the default setting
mode.
(Refer to Chapter 1, Section 1.5.2.1.)
1. Perform EEPROM reset. (See Section 1.5.1 in Chapter 1.)
2. Remove upper housing. (See section 3.2.1.)
3. Remove the printer mechanism unit. (See Section 3.2.6.)
4. Remove the main waste ink drain pads. (See Section 3.2.9.)
WORK POINT
Current value for the protect counter A is shown along with the ROM version number on the
test print sheet (1st line on the top page) printed in the default setting mode. (See Section
1.5.2.)
Cartridge Holder Unit
Waste Ink Drain Pad
Lower Housing

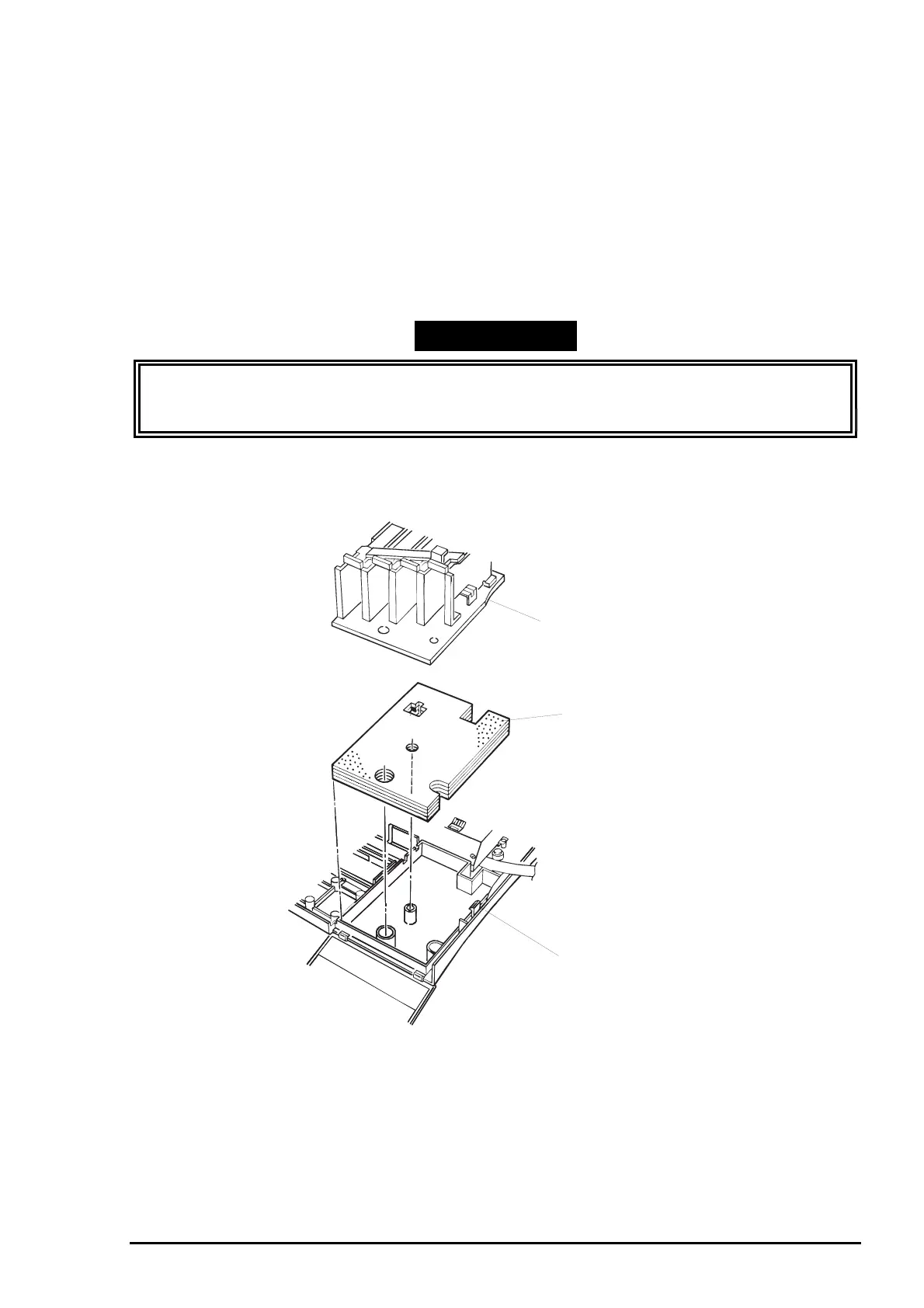

Figure 3-11. Main Waste Ink Drain Pad Removal
