5.1 General Description
This section describes procedures for isolating the failure unit in 2 levels; unit level troubleshooting and
the component level troubleshooting. Refer to the flowchart below to isolate the defective unit and perform
repair at the component level. Table 5-1, Table 5-2 and Table 5-3 show the coil resistance for the motors,
sensor status , and error codes and error condition, respectively.
Table 5-1. Coil Resistance for the Motors
Motor
Connector
No.
Test pin No.
Test method
(Set the multimeter to Ohms. Be sure to
unplug the power cable from the AC inlet
and disconnect the harnesses from the
MAIN board.)
Meter reading
CR 
motor
CN22
Pin 1 and Pin 2
or
Pin 3 and Pin 4
Place one lead to the Pin 1 and the other to
the Pin 2, then check the coil resistance per
phase.
5 Ω ± 7 %
(at 25••,
per phase)
Pump Motor CN20
Pin 1 and Pin 2
or
Pin 3 and Pin 4
Place one lead to the Pin 1 and the other to
the Pin 2 and check the coil resistance per
phase.
7.7 Ω ± 10 %
(at 25 °C
per phase)
PF 
 motor
CN15
Pin 1 and Pin 3
or
Pin 2 and Pin 4
Place one lead to the Pin 1 and the other to
the Pin 2 and check the coil resistance per
phase.
10 Ω ±10 %
(at 25 °C
per phase)

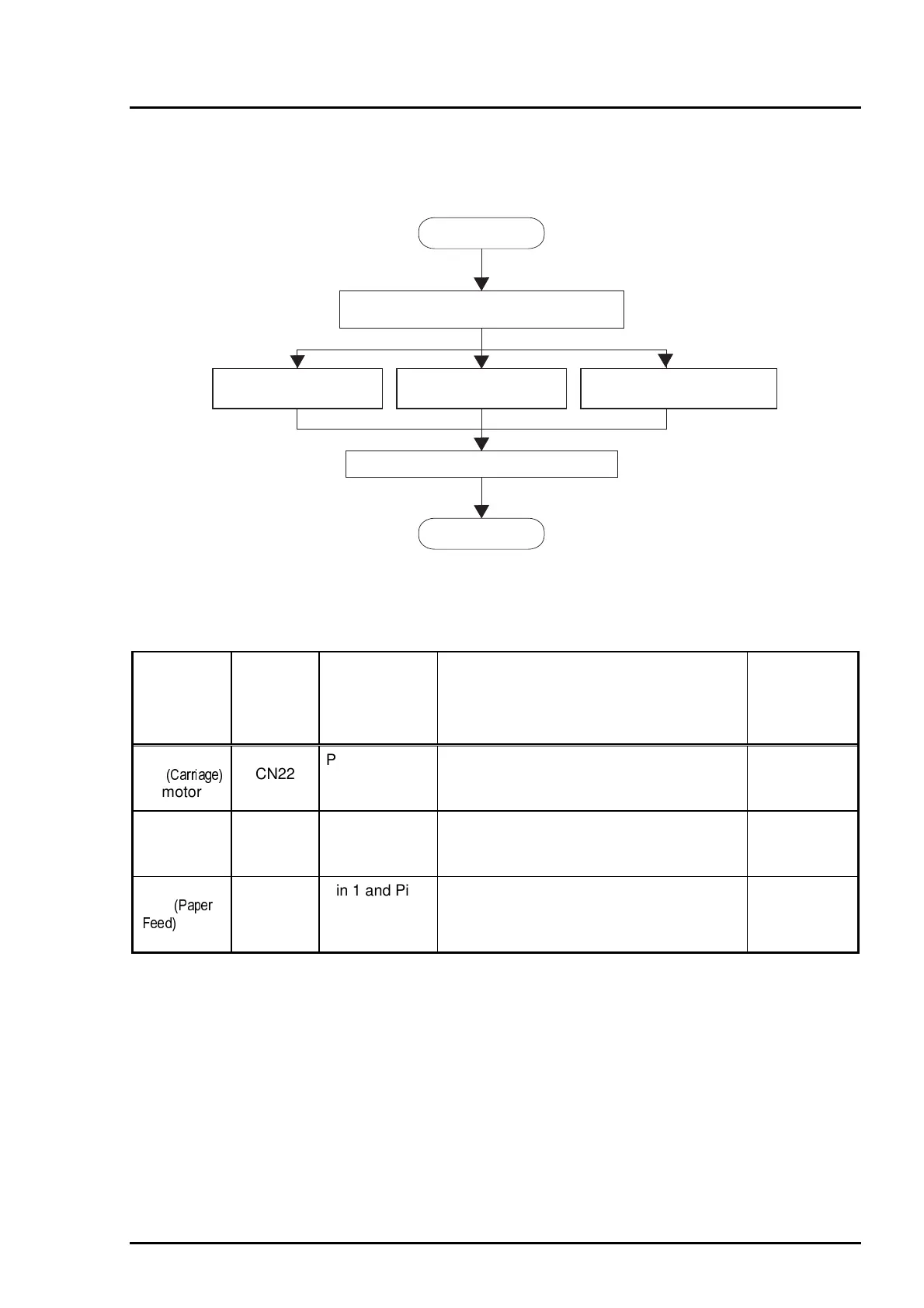

START
Troubleshooting at the unit level
Reapir of the unit
(C172 PSB/PSE board)
Repar of the unit
(C203 MAIN board)
Repair of the unit
(M-4J60 printer mechanism)
Disassembly, assembly and adjustment
END
Figure 5-1. Troubleshooting Flowchart
