Product Descriptions
Rev. A
1-1
1.3.7 Adjust Lever
The adjust lever, located at the right and upper side in the printer cover, is used to adjust the gap between
the paper and platen. The adjust lever must be set to the proper position according to the paper type to
avoid ink smudging caused by ink’s contact with paper.
Paper Type Lever Position
Platen Gap Adjustment
Value
Cut sheet
Transparency
Continuous paper
Far side (0) 0 mm
Envelopes
Index card
Near side (1) + 0.7 mm
Table 1-16. Adjust Lever Position
PG Adjust Lever
Printer Cover

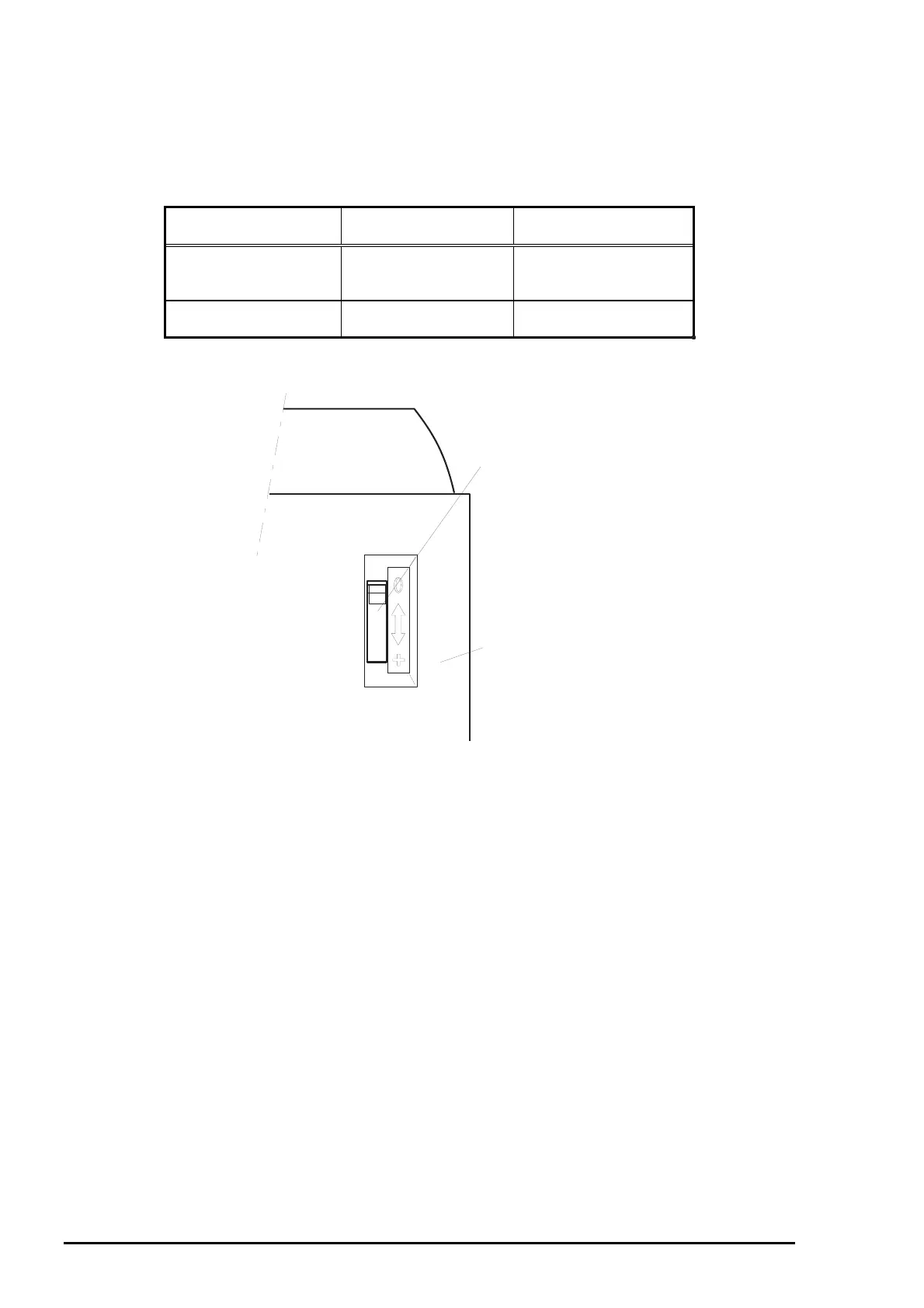

Figure 1-6. Adjust Lever Settings
