Disassembly and Assembly
Rev. A
3-1
Type-B I/F Board Guide
Earth Spring for Type-B I/F
CBS Screws (3X8)
Main Board Assembly
ASF PW Sensor Connector Cable
ASF PL Sensor Connector Cable
CN8
CN15
CN11
CN17
CP Screws (3X6)
Lower Housing
Upper Connector Cover
CBS Screw (3X8)
CBS Screws
(3X8)
CBS Screw (3X8)
CBS Screw (3X8)
CBS Screws (3X8)

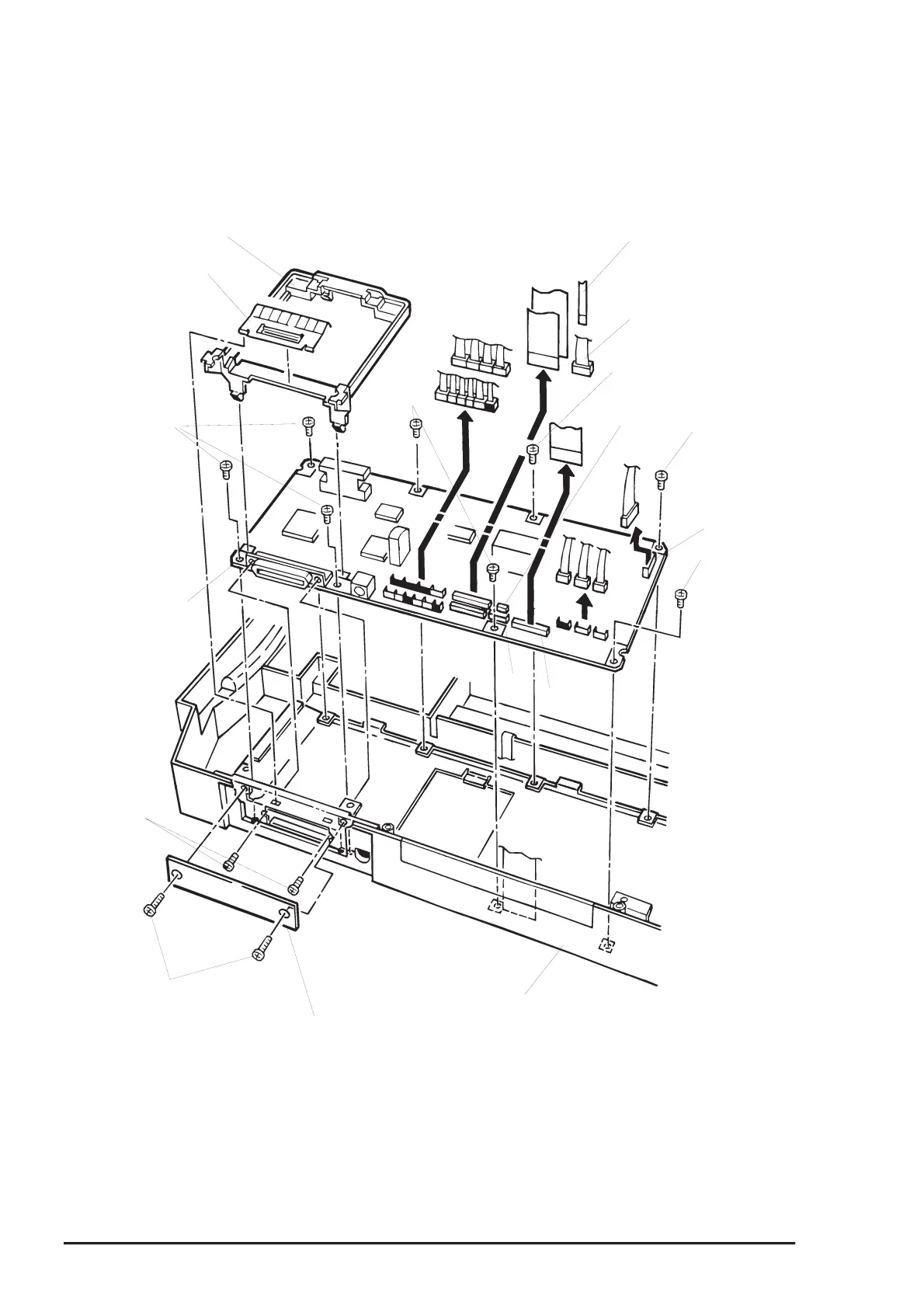

Figure 3-10. C203 MAIN board Removal
