EPSON Stylus COLOR 3000
Rev. A
3-2
Ink Cartridge Supporting Plate
Cartridge Holder Unit
CBS Screw (3x6)
Ink Tube Unit
Coupling Screw (M6)
Tube Fixing O-Ring
CBP (3X8)
CBP (3X8)
CBP (3X8)
CBP (3X8)
Ink Cartridge Fixing Plate
CBS Screw (3x6)
Yellow
Magenta
Cyan
Black

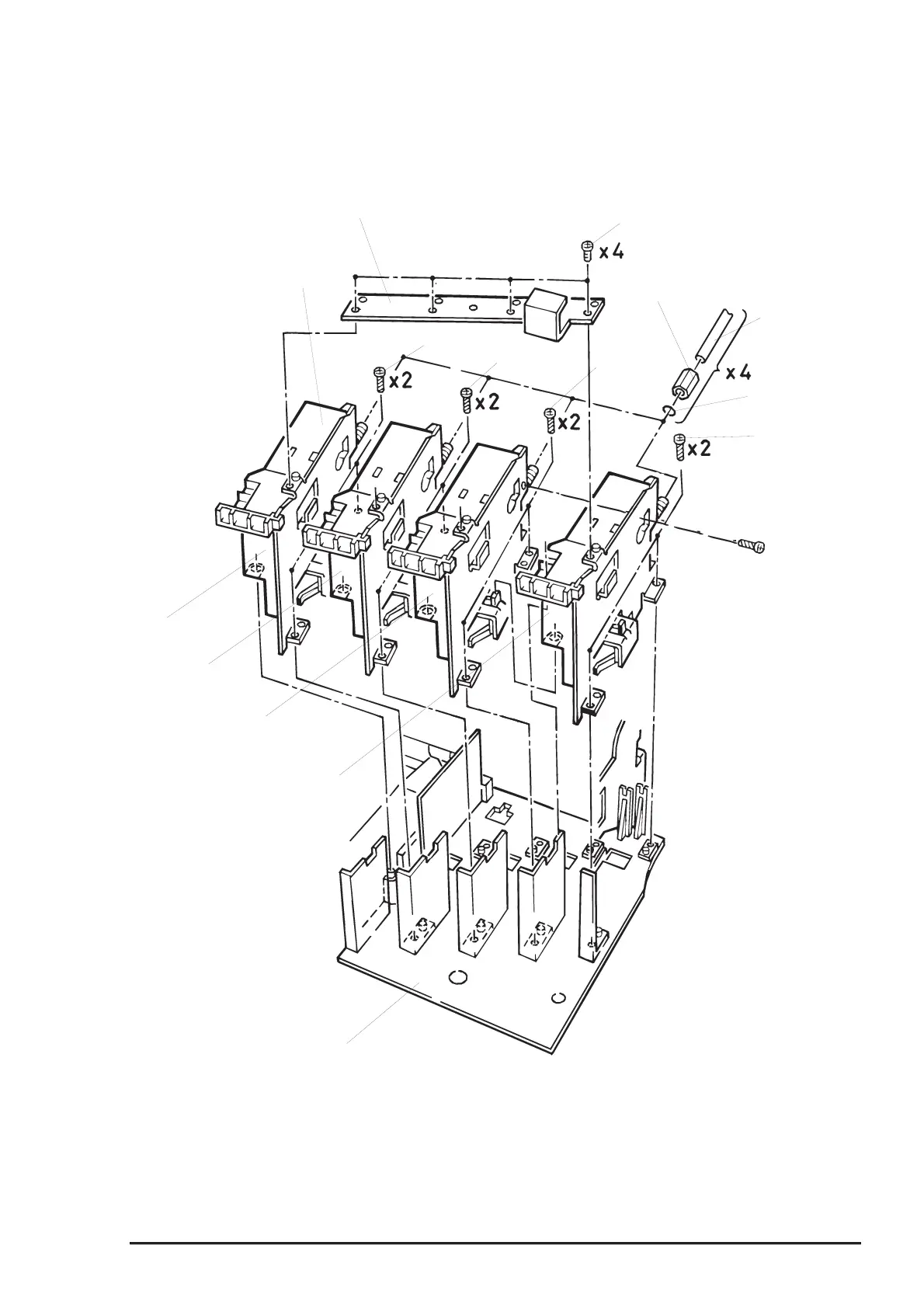

Figure 3-25. Ink Cartridge Holder Removal
