EPSON Stylus COLOR 3000
Rev. A
3-
9
Tube Cover
Tube Fixing Leaf Spring
Head Fixing Screw
Damper Assembly for Black Ink
Damper Assemblies for Color Inks
Black Printhead
Head Fixing Screw
Plain Washer
(6.3X0.2X8.3)
CR PW Sensor
Board Assembly
Black Printhead Cable
Color Printdead Cable
Compression Spring (9.9)
Color Printhead
Plain Washer
(6.3X0.2X8.3)
CR Unit
Tube Clamp

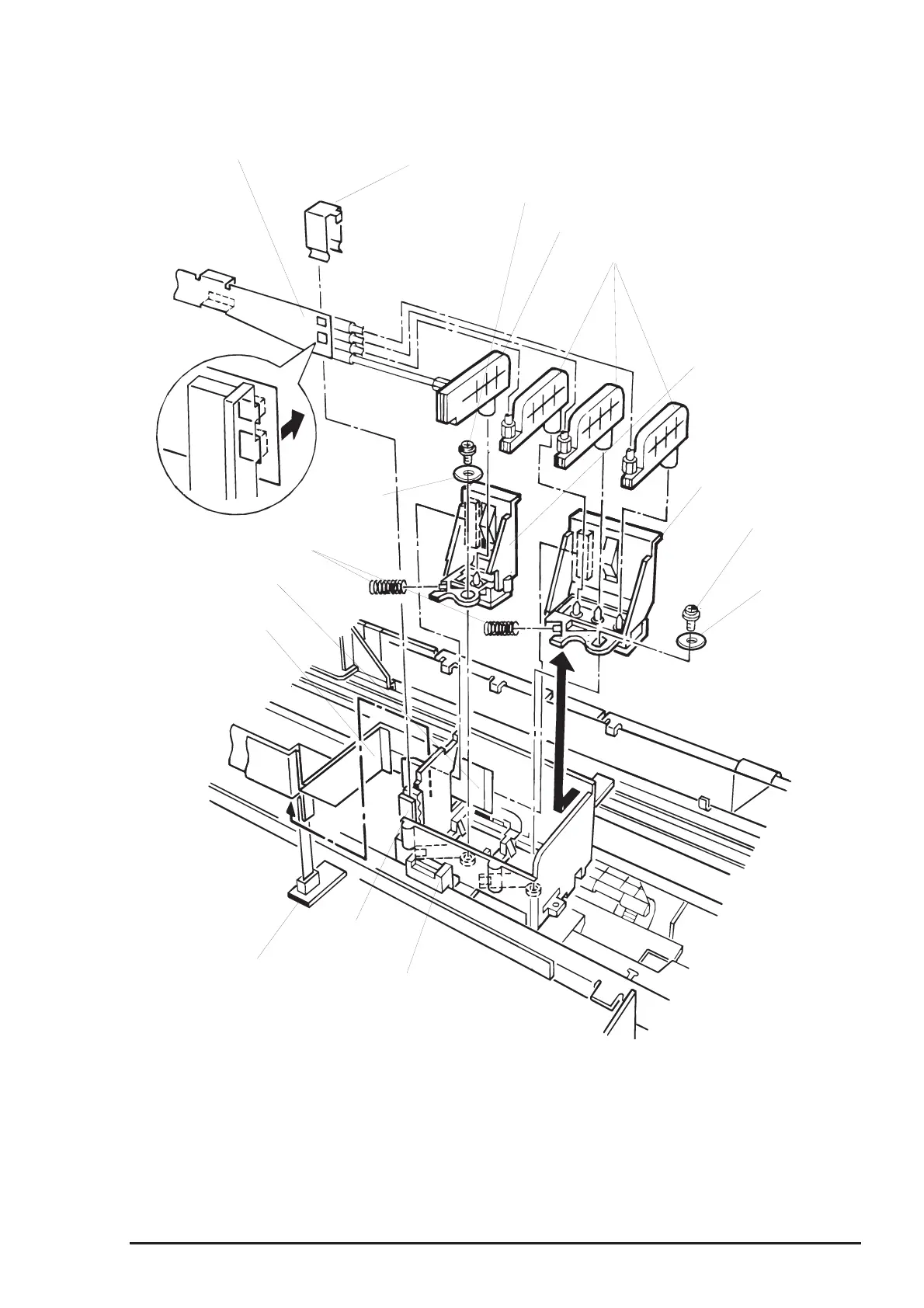

Figure 3-6. Black/Color Head Removal
