Epson STYLUS 3000 Service Manual

EPSON Stylus COLOR 3000
Rev. A
3-
5
4. Remove 1 screw (CBS, 3X6) under the panel unit and 7 screws (CBP, 3X12) securing the upper
housing to the lower housing.
5. Inserting tweezers from the bottom side of the lower housing, release 2 hooks fixing the upper housing
to the lower housing. Then remove the upper housing by pulling it forward.
WORK POINT
When replacing the upper housing or printer cover, be sure to remove the label such as
CAUTION and put it to the same position on the replaced part.
Knob
Tweezers
CBP Screws (3X12)
Tractor Unit
Sheet Guide
CBS Screw (3X6)
Panel Unit
Upper Housing
CBP Screw (3x12)
Gap Adjust Lever
Lower Housing
Hook
Hook

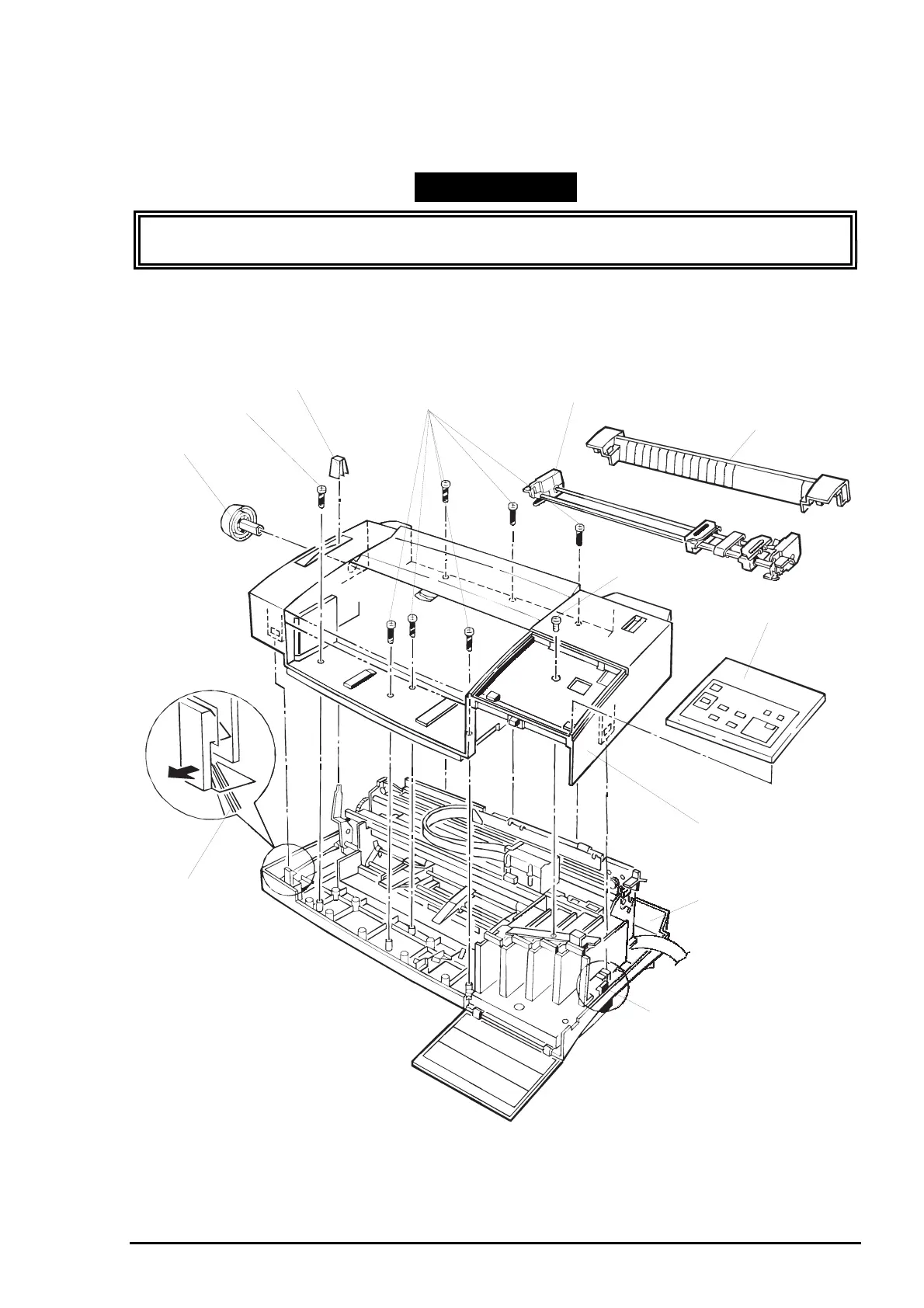

Figure 3-4. Upper Housing Removal
