DISASSEMBLY AND ASSEMBLY Disassembly 119
4.3.1 Document Cover
V External View

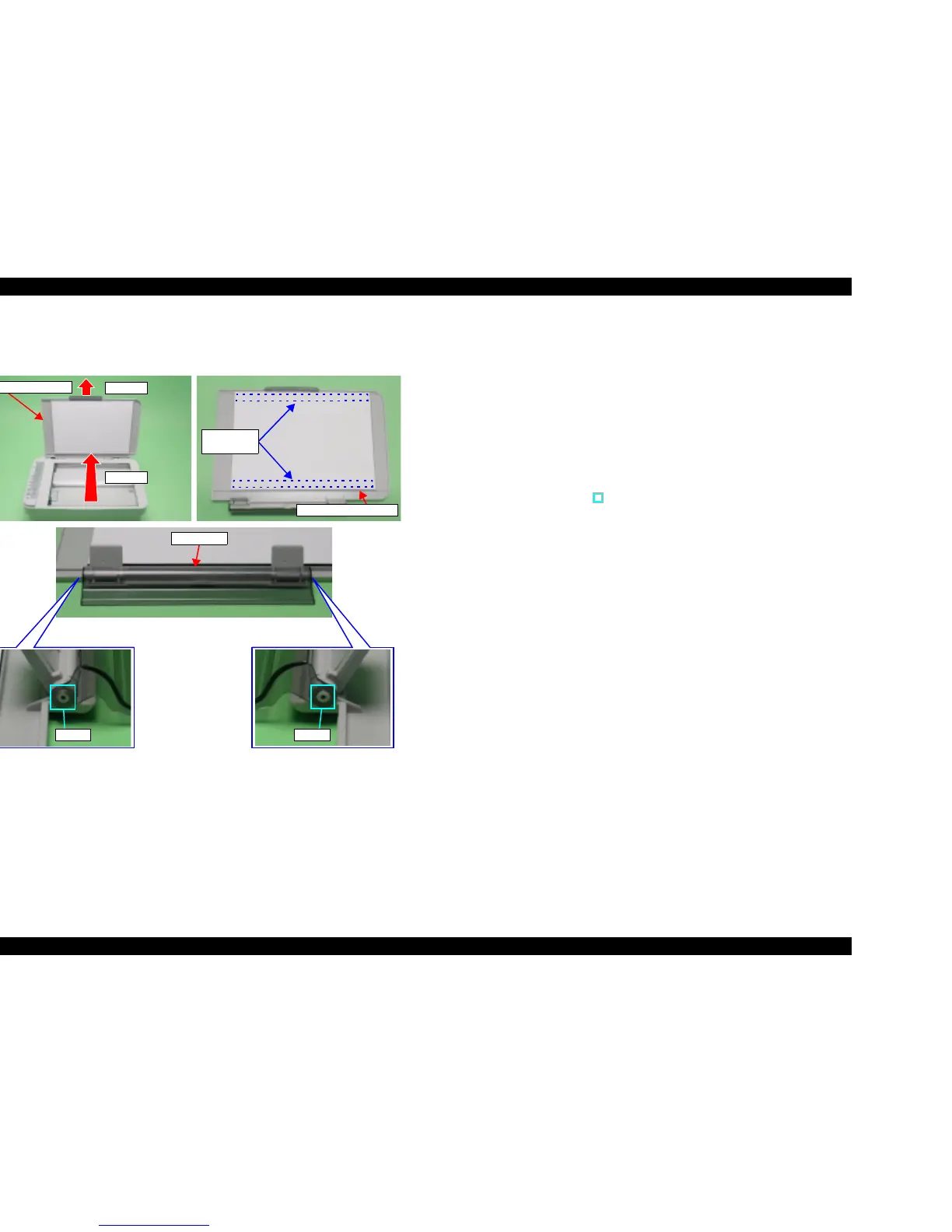

Figure 4-2. Document Cover Removal
V Part/Unit that should be removed before removing Document Cover.
None
V Removal procedure
1. Open Document Cover and remove it by pulling out upward.
T Document Cover Mat Removal
1. Remove Document Cover Mat secured to Document Cover with the double-
sided tapes (x2).
T ASF Cover Removal
1. Release the dowels (x2, ) for securing ASF Cover, and then remove it from
Document Cover.
Document Cover
Step 1-1
Step 1-2
Document Cover Mat
Double side
tapes
ASF Cover
Dowel Dowel
