EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
PRODUCT DESCRIPTION Memory Card Print (only for Stylus CX4500/CX4600) 38

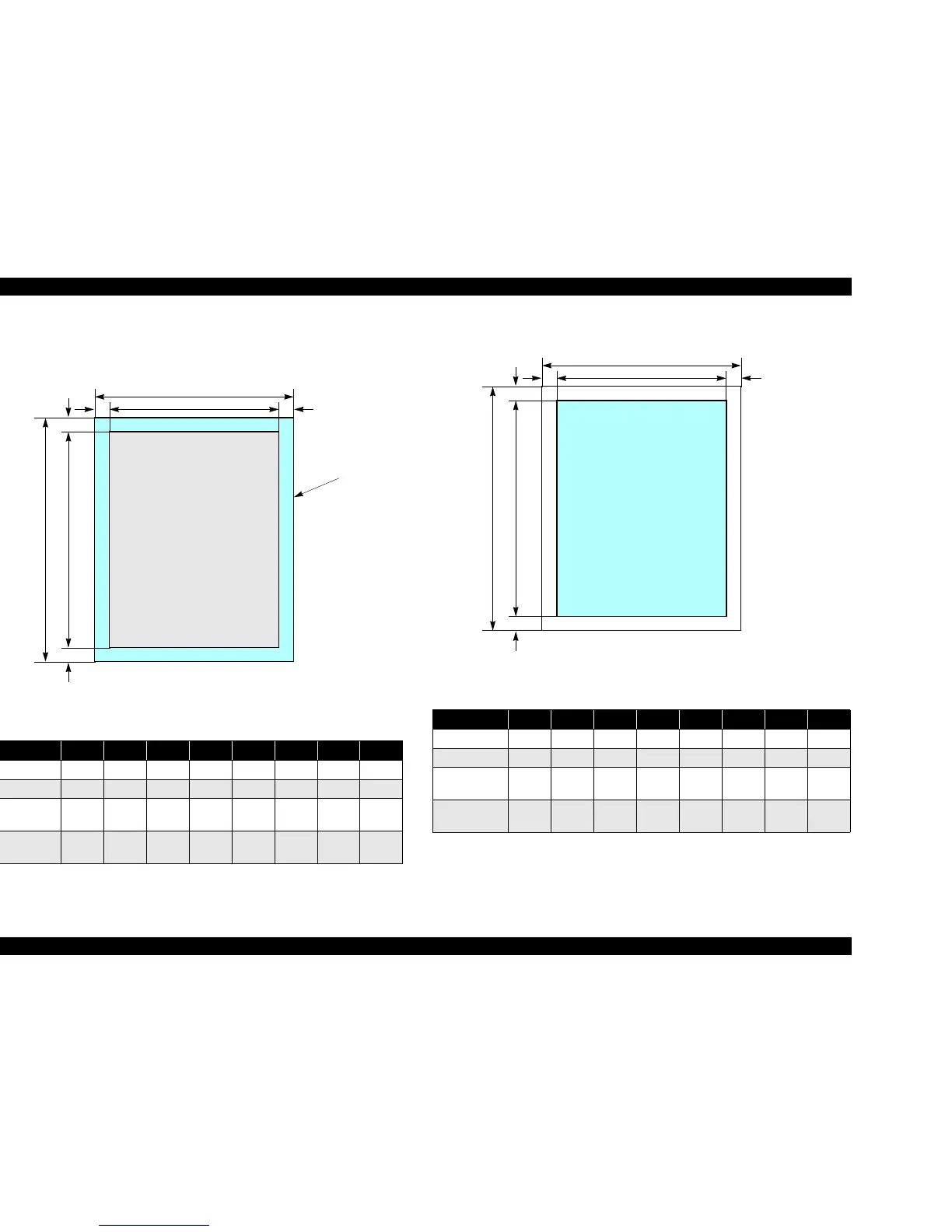

1.5.8 Layout Drawings
1.5.8.1 Border free
Figure 1-19. Border free
Note 1: A4 or 10cm x 15cm size will be used for Stylus CX3500/CX3600/CX3650/CX4500.
2: Letter or 4" x 6" size will be used for Stylus CX4600.
1.5.8.2 1-up with borders
Figure 1-20. 1-up with borders
Note 1: A4 or 10cm x 15cm size will be used for Stylus CX3500/CX3600/CX3650/CX4500.
2: Letter or 4" x 6" size will be used for Stylus CX4600.
Table 1-37. Border free (unit: mm (inch))
Paper type A B C D E F G H
A4 *
1
210.00 297.00 215.08 305.04 2.54 2.54 2.96 5.08
10cm x 15cm *
1
101.60 152.40 106.68 160.53 2.54 2.54 2.96 5.08
Letter *
2
215.90
(8.50)
279.40
(11.00)
220.98
(8.70)
287.53
(11.32)
2.54
(0.10)
2.54
(0.10)
2.96
(0.12)
5.08
(0.20)
4" x 6" *
2
101.60
(4.00)
152.40
(6.00)
106.68
(4.20)
160.53
(6.32)
2.54
(0.10)
2.54
(0.10)
2.96
(0.12)
5.08
(0.20)
Paper
A
C
FEG
H
BD
Printable
area
Table 1-38. 1-up with borders (unit: mm (inch))
Paper type A B C D E F G H
A4 *
1
210.00 297.00 204.00 291.00 3.00 3.00 3.00 3.00
10cm x 15cm *
1
101.60 152.40 95.60 146.40 3.00 3.00 3.00 3.00
Letter *
2
215.90
(8.50)
279.40
(11.00)
209.90
(8.26)
273.40
(10.76)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
4" x 6" *
2
101.60
(4.00)
152.40
(6.00)
95.60
(3.76)
146.40
(5.76)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
3.00
(0.12)
Printable area
C
A
FEG
H
DB
