DISASSEMBLY AND ASSEMBLY Disassembly 158
4.3.23 PG Sensor
V External View

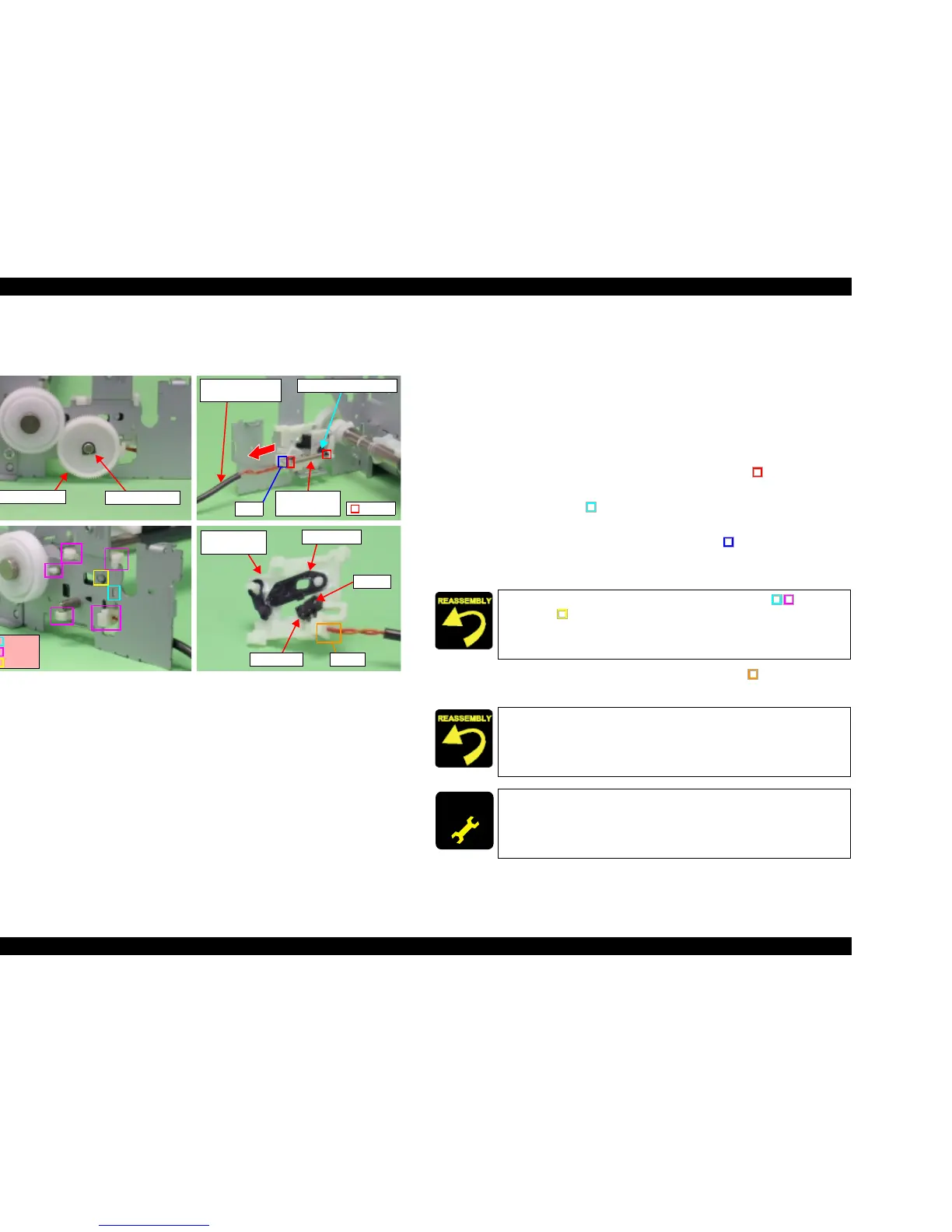

Figure 4-49. PG Sensor Removal
V Part/Unit that should be removed before removing PG Sensor.
Document Cover / Paper Support Assy. / Scanner Unit / Panel Unit /
Housing Upper / Print Head/ Printer Mechanism / Main Board Unit /
ASF Unit / Holder Shaft Unit / CR Guide Frame / CR motor / Carriage Unit /
Front Frame / EJ Frame Unit / Ink System Unit / Paper Guide Front Unit
V Removal procedure
1. Remove Spacer (x1) for securing Spur Gear 30.8, and then remove Spur Gear
30.8 from Main Frame.
2. Remove Extension Spring 1.036 from the hooks (1 each, ) of Main Frame
and Fulcrum Lever (Left).
3. Remove the hook (x1, ) for securing Link Lever Holder (Left) by using the
tweezers, and then shift it in the direction shown by figure.
4. Release Link Lever Holder (Left) from the rib (x1, ) of Main Frame, and
then remove Fulcrum Lever (Left), Lever Link along with Link Lever Holder
(Left).
5. Release PG Sensor Connector Cable from the hook (x1, ) of Link Lever
Holder (Left), and then remove PG Sensor.
Extension
Spring 1.036
PG Sensor
Connector Cable
HooksRib
Fulcrum Lever (Left)
Spur Gear 30.8
Spacer (4.1x0.5)
Hook
Hooks
Dowel
PG Sensor Hook
Dowel
Lever LinkLink Lever
Holder (Left)
Secure Link Lever Holder (Left) with the hooks (x6, ) and
dowel (x1, ).
Install PG Sensor onto the dowel of Link Lever Holder (Left).
ADJUSTM ENT
REQUIRED
After changing the Link Lever and Link Lever Holder (Left) for a
new one, always apply grease G-26 to the specified portions.
T Refer to Chapter 6, Figure 6-11 (p.179)
