EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 148
4.3.16 PF Motor
V External View

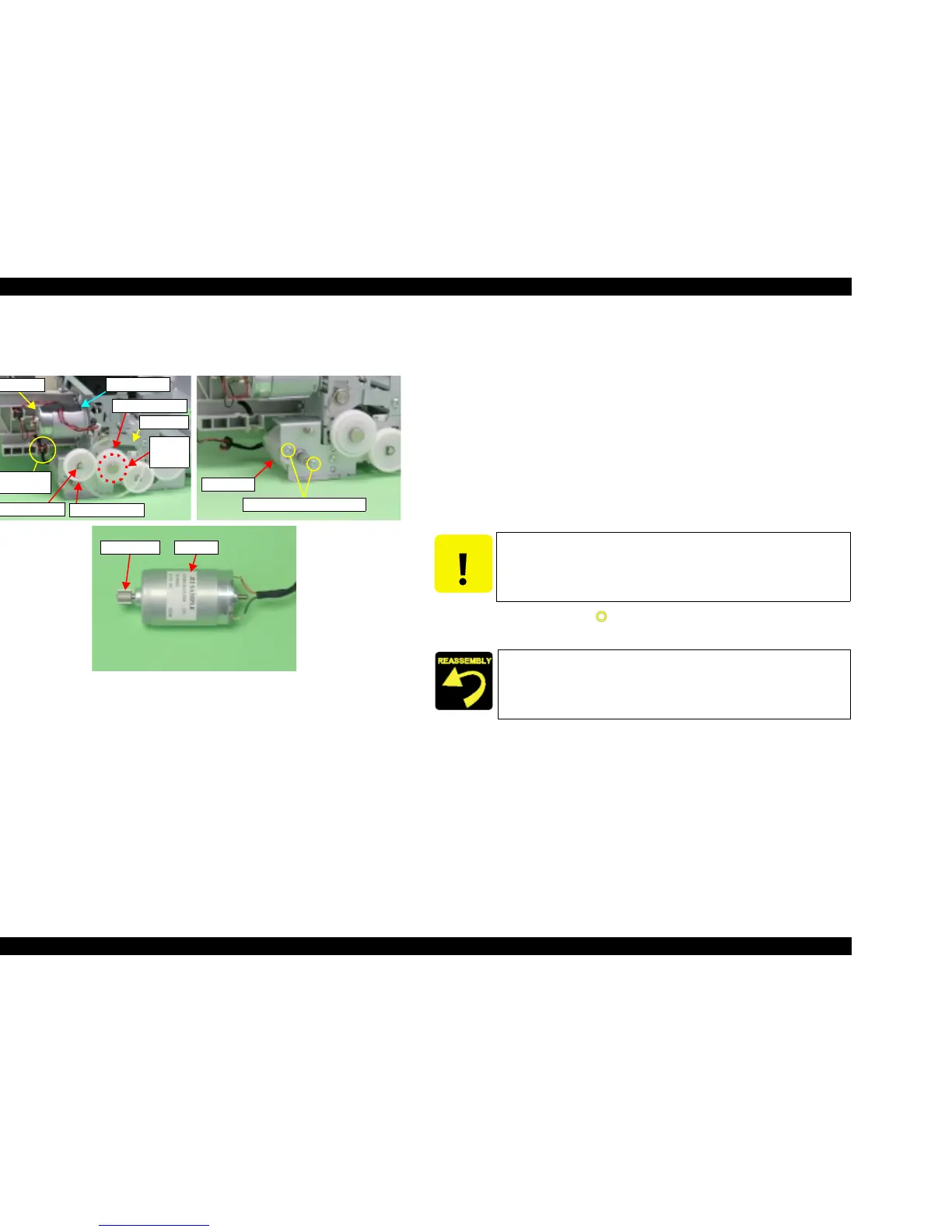

Figure 4-38. PF Motor Removal
V Part/Unit that should be removed before removing PF Motor.
Document Cover / Paper Support Assy. / Scanner Unit / Panel Unit /
Housing Upper / Printer Mechanism / Main Board Unit
V Removal procedure
1. Peel off the acetate tape (x1) from CR Motor, and then release CR Motor
Connector Cable and PF Motor Connector Cable.
2. Remove Ferrite Core (x1) of PF Motor Connector Cable from the slot (x1) of
ASF Unit.
3. Peel off PF Scale secured to Spur Gear 32.4 with the double-sided tape (x1).
4. Remove Spacer (4.1x0.5) for securing Spur Gear 30.8, and then remove Spur
Gear 30.8 from Main Frame.
5. Remove the screws (x2, ) for securing PF Motor, and then remove PF
Motor from Printer Mechanism.
PF Motor
C.P 3x4 F/Zn (4±0.5kgfcm)
Ferrite Core
and Slot
Acetate tape
CR Motor
PF Scale
Double
side
tape
Spur Gear 32.4
Spur Gear 30.8
Spacer (4.1x0.5)
Pinion gear Lot No.
CAUTION
Do not damage the following locations.
T Pinion gear of PF Motor
T PF Scale
T Spur Gear 30.8
T Assemble so that label with recorded Lot Number faces upward.
T Make sure that there is no gap between PF Motor and Main
Frame.
