MAINTENANCE Overview 177
6.1.3 Lubrication
The characteristics of the grease have great affects on the mechanical function and
durability, especially does the characteristics about temperature environment. The type
and amount of the grease used to lubricate the printer parts are determined based on the
results of the internal evaluations. Therefore, be sure to apply the specified type and
amount of the grease to the specified part of the printer mechanism during servicing.

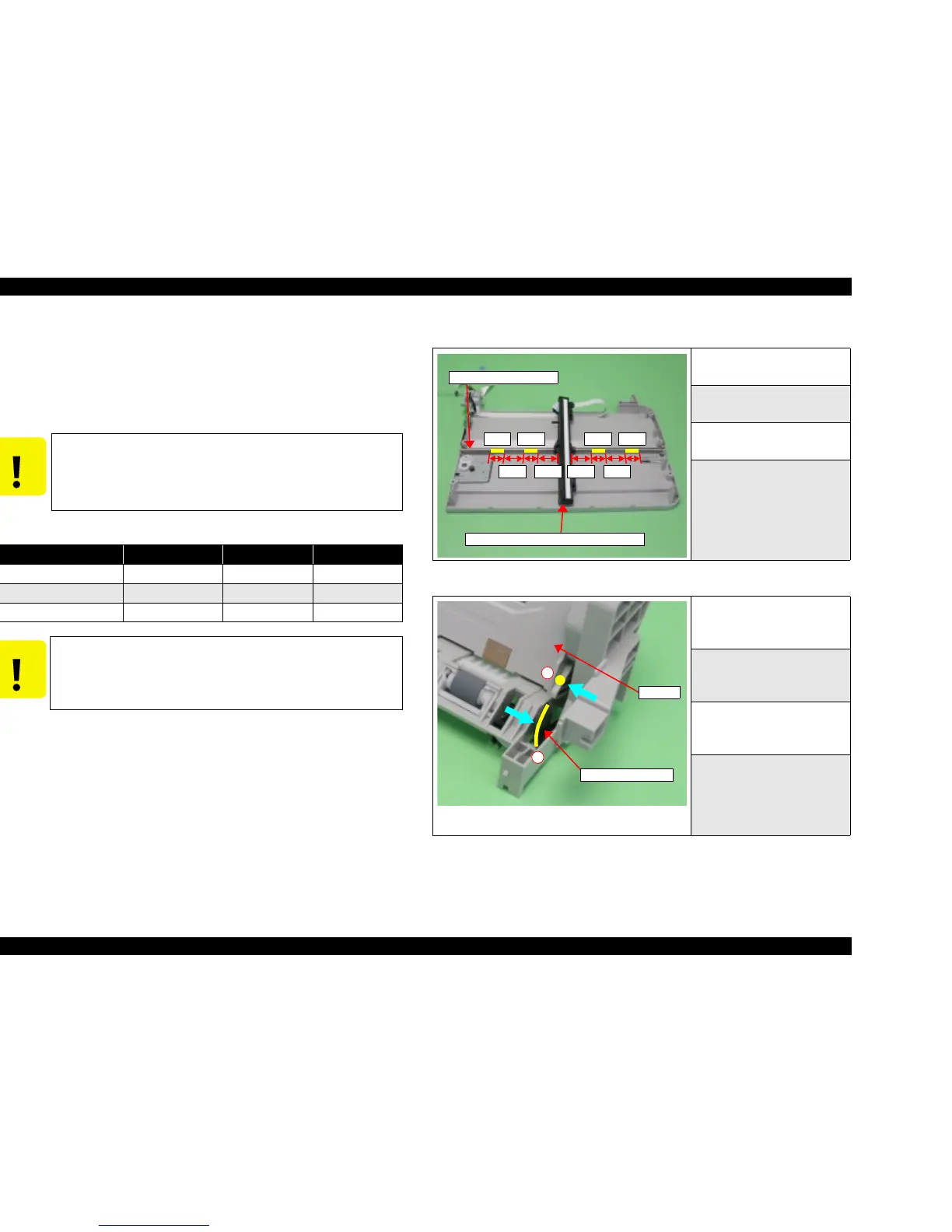

V Refer to the following figures for the lubrication points.
Figure 6-4. Lubrication
Figure 6-5. Lubrication
CAUTION
T Never use oil or grease other than those specified in this manual.
Use of different types of oil or grease may damage the
component or give bad influence on the printer function.
T Never apply larger amount of grease than specified in this
manual.
Table 6-1. Specified lubricants
Type Name EPSON code Supplier
Grease G-26 1080614 EPSON
Grease G-46 1039172 EPSON
Grease G-71 1304682 EPSON
CAUTION
When using G-46, it is recommended to use a flux dispenser
(1049533) together.
<Lubrication Point>
Scanner Carriage Shaft surface
<Lubrication Type>
G-26
<Lubrication Amount>
2mm x 4 points
<Remarks>
Use a brush to apply it
<Lubrication Point>
1. Paper Return Lever surface
2. Hopper surface
<Lubrication Type>
1. G-46
2. G-26
<Lubrication Amount>
1. Adequate dose
2. φ1 x 1mm
<Remarks>
1. Use a flux dispenser to apply it
2. Use a injector to apply it
• Grease application must not
spread to other parts.
Scanner Carriage Shaft
3mm 3mm 3mm 3mm
2mm2mm2mm2mm
Scanner Carriage Unit position on center
1
2
Hopper
Paper Return Lever
