MAINTENANCE Overview 178

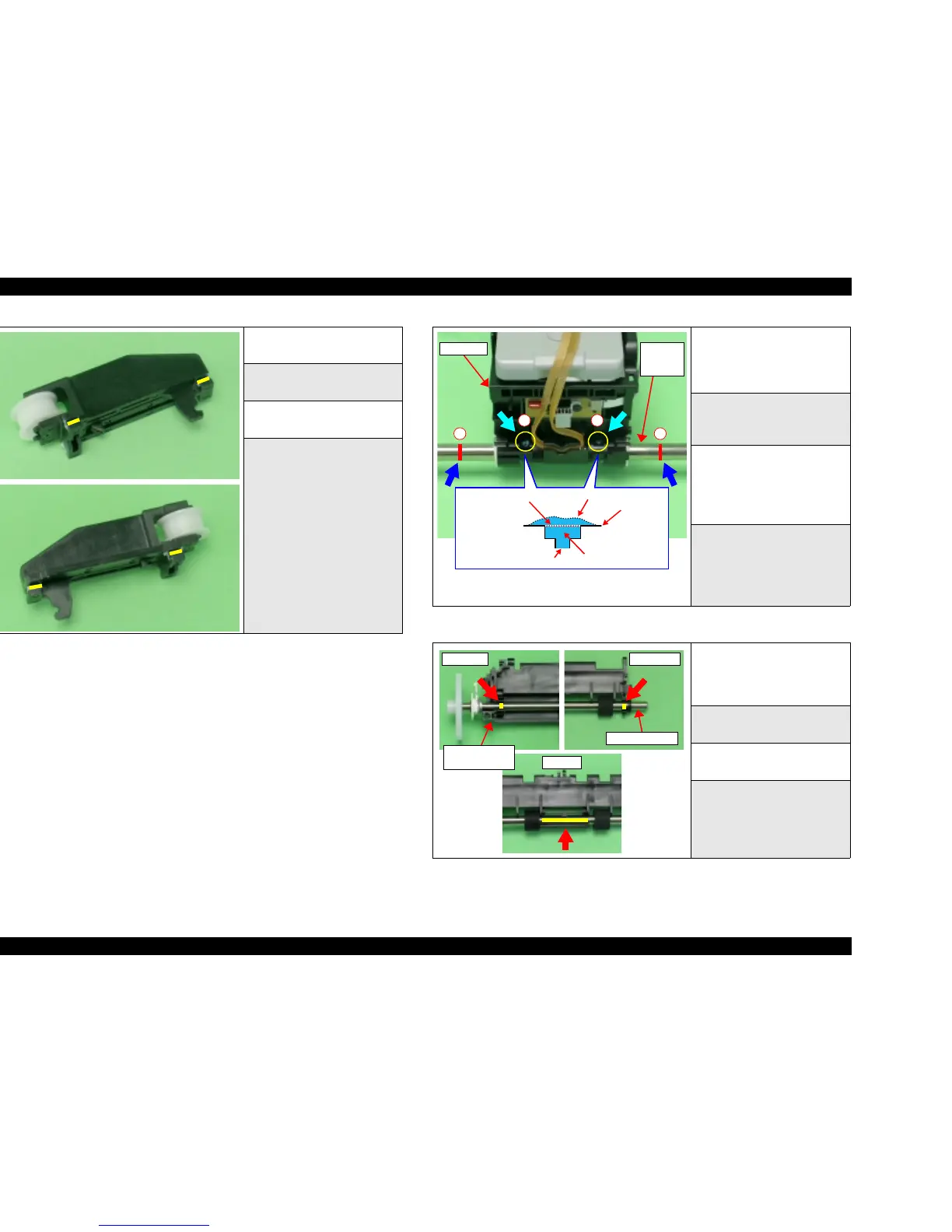

Figure 6-6. Lubrication
Figure 6-7. Lubrication
Figure 6-8. Lubrication
<Lubrication Point>
4 Ditches of Pully Driven Holder
<Lubrication Type>
G-26
<Lubrication Amount>
φ1 x 1mm x 4 points
<Remarks>
• Use a injector to apply it
• Wipe the unnecessary grease by
bemcoat.
• Grease must not spread to Pully
Driven area.
<Lubrication Point>
1. 2 position on holes of Carriage
(touch to Carriage Guide Shaft)
2. Carriage Guide Shaft surface
<Lubrication Type>
1. G-71
2. G-71
<Lubrication Amount>
1. 150 ~ 210mg
(total on 2 positions)
2. 120 ~ 160mg
(total on 2 positions)
<Remarks>
1. Use a injector to apply it
2. Use a injector to apply it
• KEN Grease must not spread to
Timing Belt.
<Lubrication Point>
Contact point between EJ Roller
Unit and 3 hooks of Front Paper
Guide Support
<Lubrication Type>
G-46
<Lubrication Amount>
Adequate dose
<Remarks>
• Use a flux dispenser to apply it
• G-46 must not spread to rubber
part of EJ Roller Unit.
2 2
1 1
N.G.
O.K.
KEN Grease applied
limit line
Carriage hole
Carriage
outside
surface
Carriage
Guide
Shaft
Carriage
Left side
Center
Right side
EJ Roller Unit
Front Paper
Guide Support
