EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
PRODUCT DESCRIPTION Stand-alone Copy 28
1.4.4.2 BorderFree Copy
The following table shows the relative positioning of the original and copy.
Note : Refer to “1.2.1.4 Paper Support” (p.12) for paper width (PW) and paper length (PL).

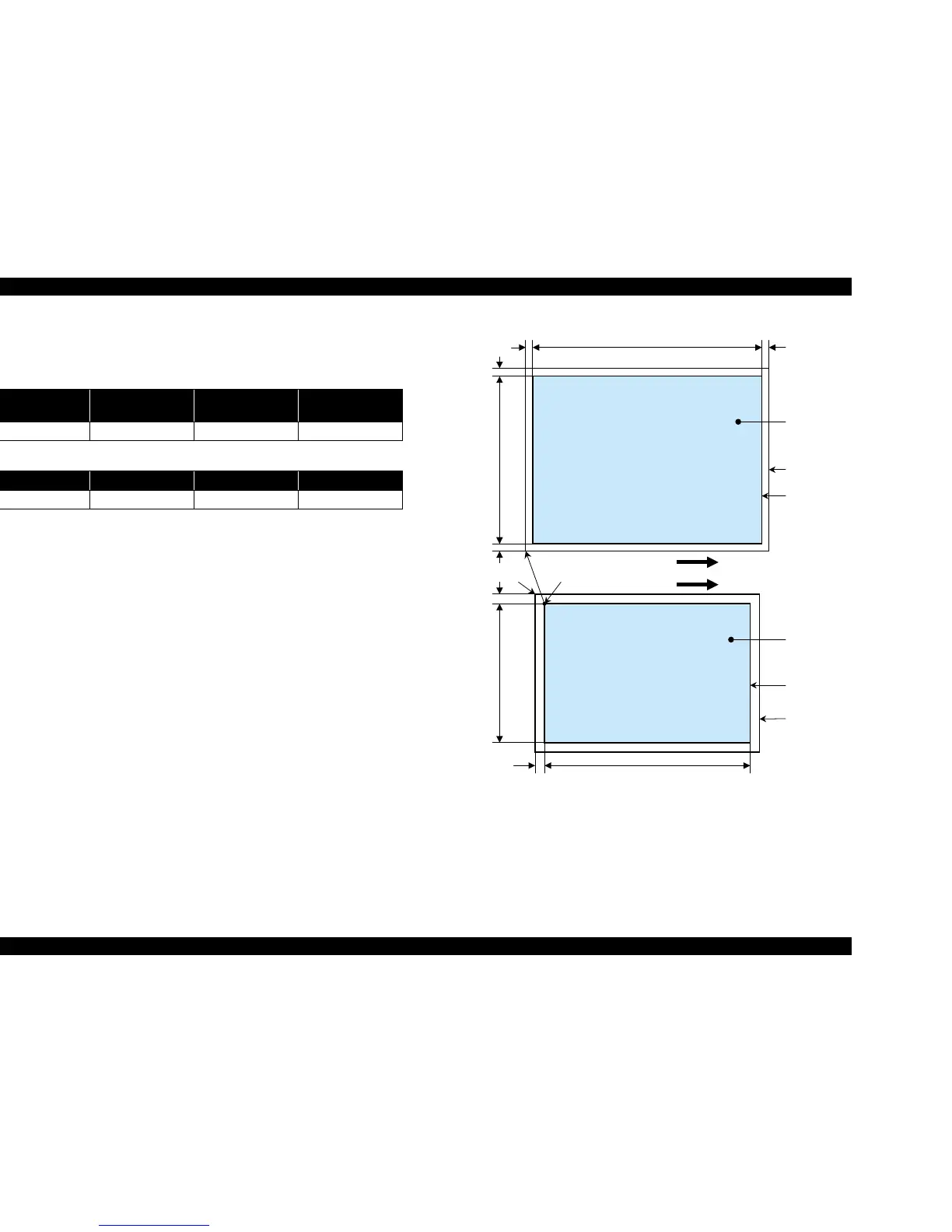

Figure 1-11. BorderFree Copy
Table 1-28. Original (scanner)
RW
(readable width)
OLM
(out-of-range left margin)
RL
(readable length)
OTM
(out-of-range top margin)
216 mm (8.5") 1.5 mm ± 1 mm 297 mm (11.7") 1.5 mm ± 1 mm
Table 1-29. Copy (printer)
RO LO TO BO
2.5 mm (0.09") 2.5 mm (0.09") 3 mm (0.12") 5 mm (0.2")
a
a
Copy
Print area
Copy paper
Print direction
Scan direction
Right side of original
Original
(face down)
Scan area
Scan bed
BO
TO
PL
TopPW
*2*1
OLM
TopRW
OTM RL
Note *1: This indicates the top left corner of the original. Normally, this corner is aligned
with the scan bed's top right corner as the reference point.
*2: This indicates the scan start position at the top left of the original, which
corresponds to the print start position at the top left of the copy. The bottom right
corner of the print area varies according to the scale setting in the print area.
Right side of copy
LO
