EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 159
4.3.24 PF Roller Unit
V External View (1)

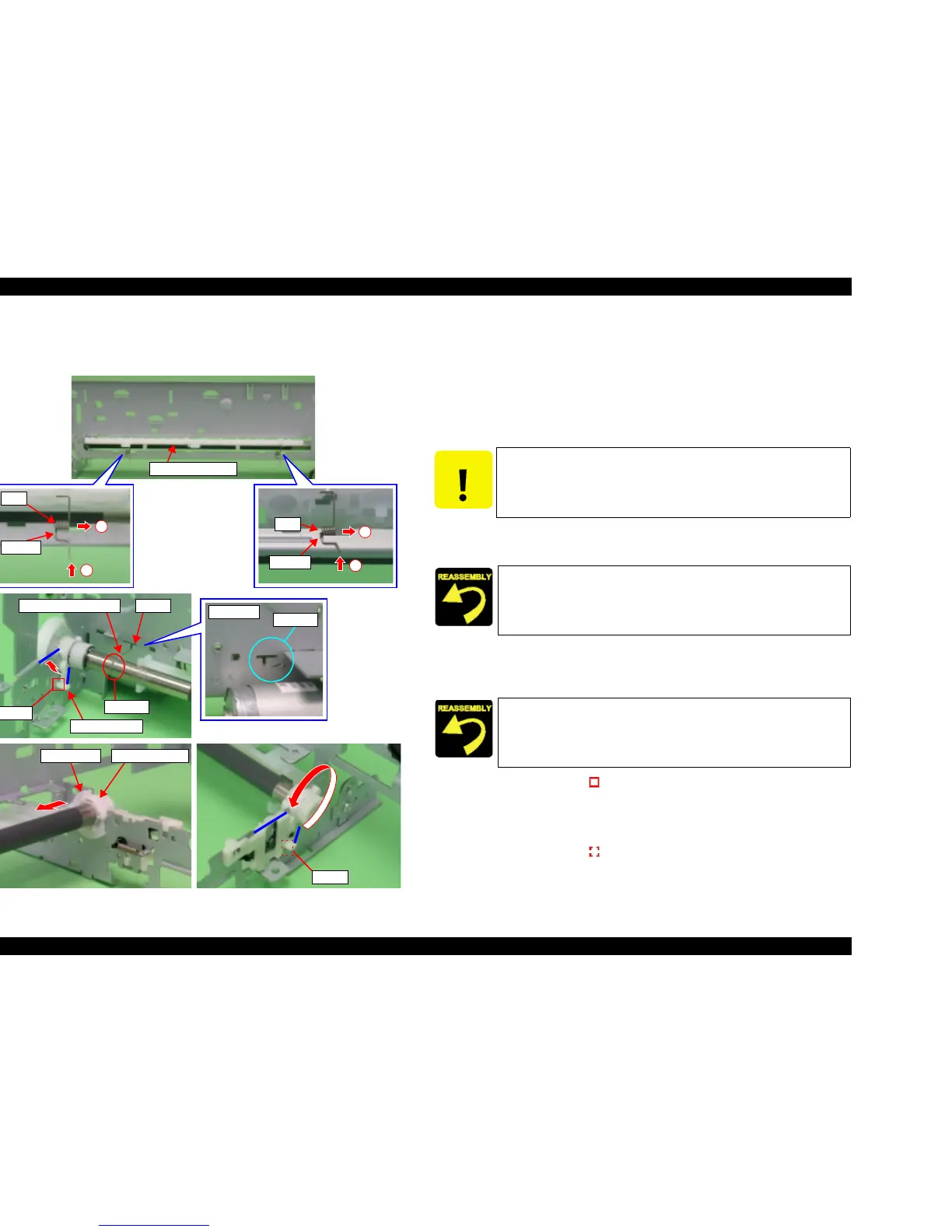

Figure 4-50. PF Roller Unit Removal (1)
V Part/Unit that should be removed before removing PF Roller Unit.
Document Cover / Paper Support Assy. / Scanner Unit / Panel Unit /
Housing Upper / Print Head/ Printer Mechanism / Main Board Unit /
ASF Unit / Holder Shaft Unit / CR Guide Frame / CR motor / Carriage Unit /
Paper Guide Upper Unit / Front Frame / EJ Frame Unit / Ink System Unit /
Paper Guide Front Unit / PG Sensor
V Removal procedure
1. Push upward the lower side leg of Torsion Spring 12.64 (1 each), and remove
Torsion Spring 12.64 (x2) from the rib (1 each) of Main Frame.
2. Release S-shape of PF Grounding Spring from the notch of Main Frame by
using the tweezers, and then remove PF Grounding Spring from PF Roller
Unit.
3. Release the dowel (x1, ) of Bush 10 (Left) from Main Frame, and then
rotate Bush 10 (Left) to the position shown by figure.
4. Release C-cut shape of Paper Guide Rear from Bush 10 (Right), and then shift
Paper Guide Rear to the left.
5. Release the dowel (x1, ) of Bush 10 (Right) from Main Frame, and then
rotate Bush 10 (Left) to the position shown by figure.
Paper Guide Rear
Rib
1
2
Channel
Dowel
Bush 10 (Left)
PF Grounding Spring
Notch
Channel
Dowel
C-cut shape
Bush 10 (Right)
Back side
S-shape
Rib
1
2
Channel
CAUTION
Do not cause damage by touching the coating location of PF Roller
Unit when performing the following steps.
T Insert the lower leg of Torsion Spring 12.64 into the channel of
Main Frame.
T Push Paper Guide Rear from above, and confirm that it returns
by tension of Torsion Spring 12.64.
Fasten PF Grounding Spring to the channel of PF Roller Unit.
