EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
PRODUCT DESCRIPTION Memory Card Print (only for Stylus CX4500/CX4600) 39

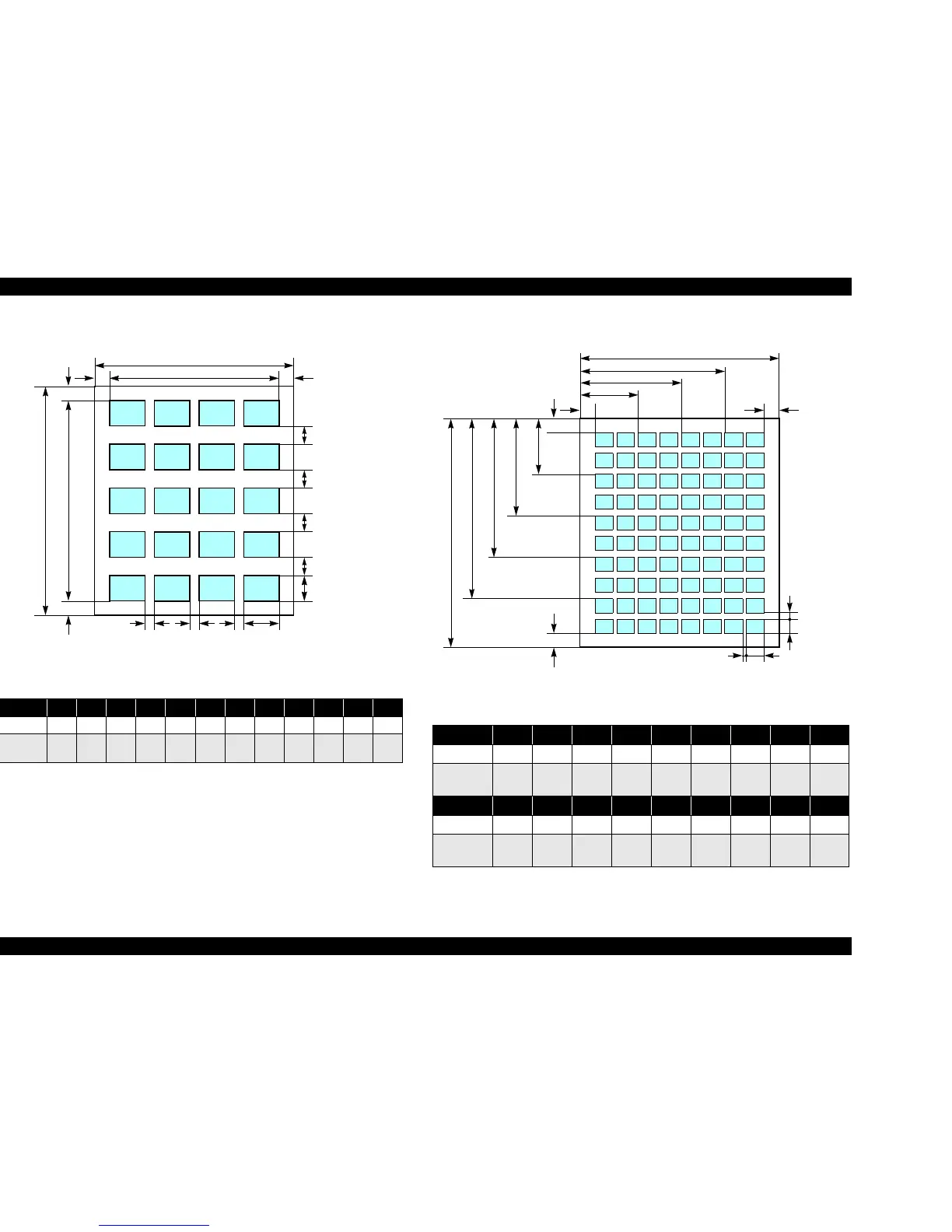

1.5.8.3 20-up
Figure 1-21. 20-up
Note 1: A4 or 10cm x 15cm size will be used for Stylus CX3500/CX3600/CX3650/CX4500.
2: Letter or 4" x 6" size will be used for Stylus CX4600.
1.5.8.4 80-up
Figure 1-22. 80-up
Note *1: A4 or 10cm x 15cm size will be used for Stylus CX3500/CX3600/CX3650/CX4500.
*2: Letter or 4" x 6" size will be used for Stylus CX4600.
Table 1-39. 20-up (unit: mm (inch))
Paper type A B C D E F G H I J K L
10cm x 15cm *
1
101.60 152.40 20.00 20.00 6.10 6.30 19.80 20.30 3.00 3.00 89.30 112.30
4" x 6" *
2
101.60
(4.00)
152.40
(6.00)
20.00
(0.79)
20.00
(0.79)
6.10
(0.24)
6.30
(0.25)
19.80
(0.78)
20.30
(0.80)
3.00
(0.12)
3.00
(0.12)
89.30
(3.52)
112.30
(4.42)
K
A
FEG
H
LB
J
J
J
J
D
IIIC
Table 1-40. 80-up (unit: mm (inch))
Paper type A B C D E F G H I
A4 *
1
210.00 297.00 20.00 20.00 2.00 5.00 18.00 62.00 106.00
Letter *
2
215.90
(8.50)
279.40
(11.00)
20.07
(0.79)
20.07
(0.79)
6.10
(0.24)
6.10
(0.24)
6.35
(0.25)
58.67
(2.31)
111.00
(4.37)
Paper type J K L M N O P Q
A4 *
1
150.00 18.00 26.00 76.00 126.00 176.00 226.00 26.00
Letter *
2
163.32
(6.43)
6.35
(0.25)
11.94
(0.47)
64.26
(2.53)
116.59
(4.59)
168.91
(6.65)
221.23
(8.71)
119.4
(0.47)
J
A
KGL
Q
M
B
D
EC
F
H
I
N
O
P
