EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 135
V External View (2)

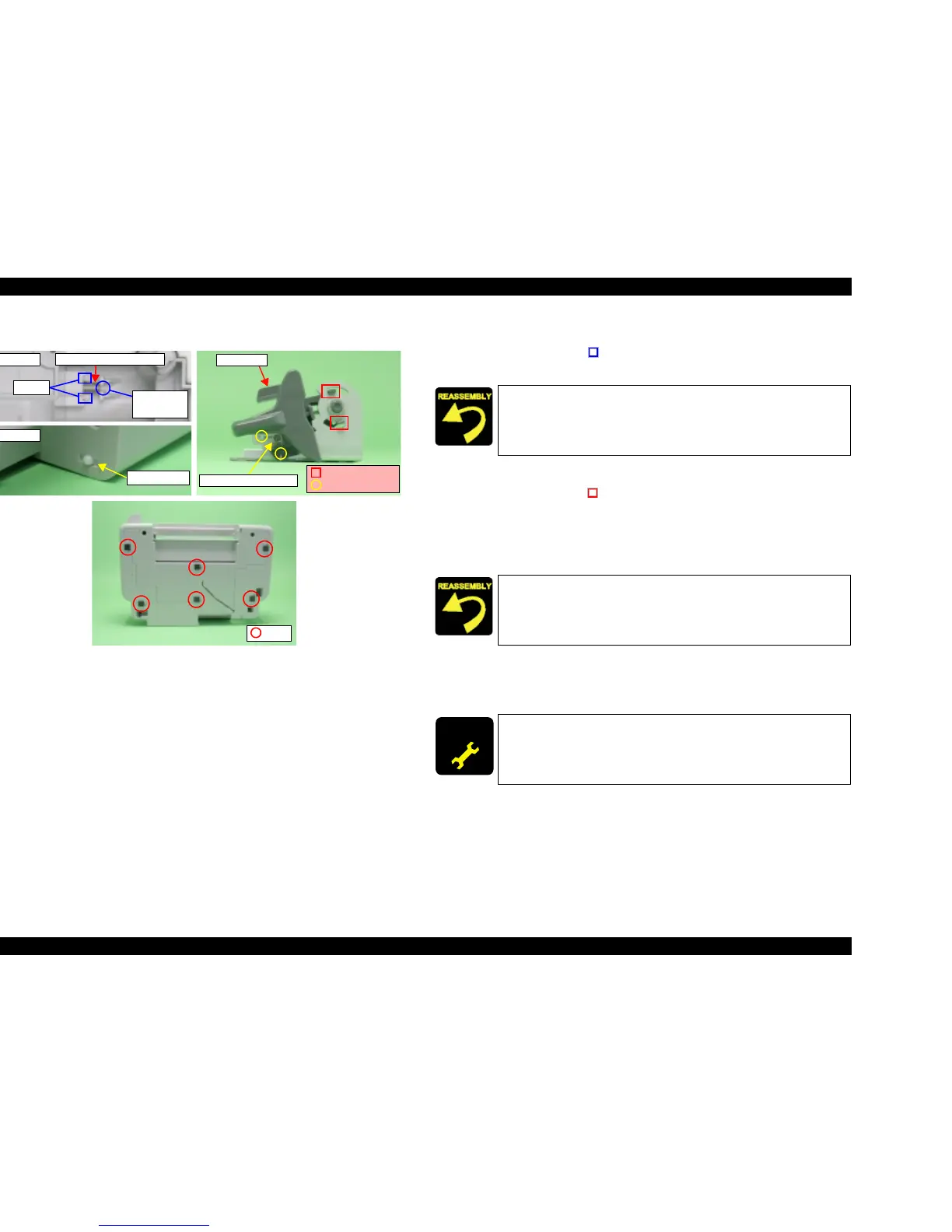

Figure 4-23. Stacker Lock/PG Lever/Foots Removal (2)
T Stacker Lock Removal
1. Release the hooks (x2, ) for securing Stacker Lock, and then remove
Stacker Lock and Compression Spring 5.1 from Housing Lower.
T PG Lever Removal
1. Release the hooks (x2, ) for securing PG Lever, and then remove PG Lever
from PG Lever Mounting Plate.
2. Remove Torsion Spring 19.01 from the installation holes of PG Lever and PG
Lever Mounting Plate, and then remove PG Lever and PG Lever Mounting
Plate.
T Foots Removal
1. Remove Foots (x6) from bottom of Housing Lower, and separate from
Housing Lower.
Hooks
Compression Spring 5.1
Right side
Shaft and
Channel
Stacker Lock
Right side
PG Lever
Torsion Spring 19.01
Hooks
Installation Holes
Foots
T Pass the shaft of Stacker Lock through the channel of Housing
Lower.
T Confirm that Stacker opens and closes smoothly.
Confirm that PG Lever operates smoothly.
ADJUSTM ENT
REQUIRED
When having replaced Waste Ink Pads, implement the following
adjustment. (Refer to Chapter 5 “ADJUSTMENT”)
T Waste ink pad counter
