EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
ADJUSTMENT Adjustment Except Adjustment Program 171
9. Accede to following steps until you’ve completed the left side PG adjustment.

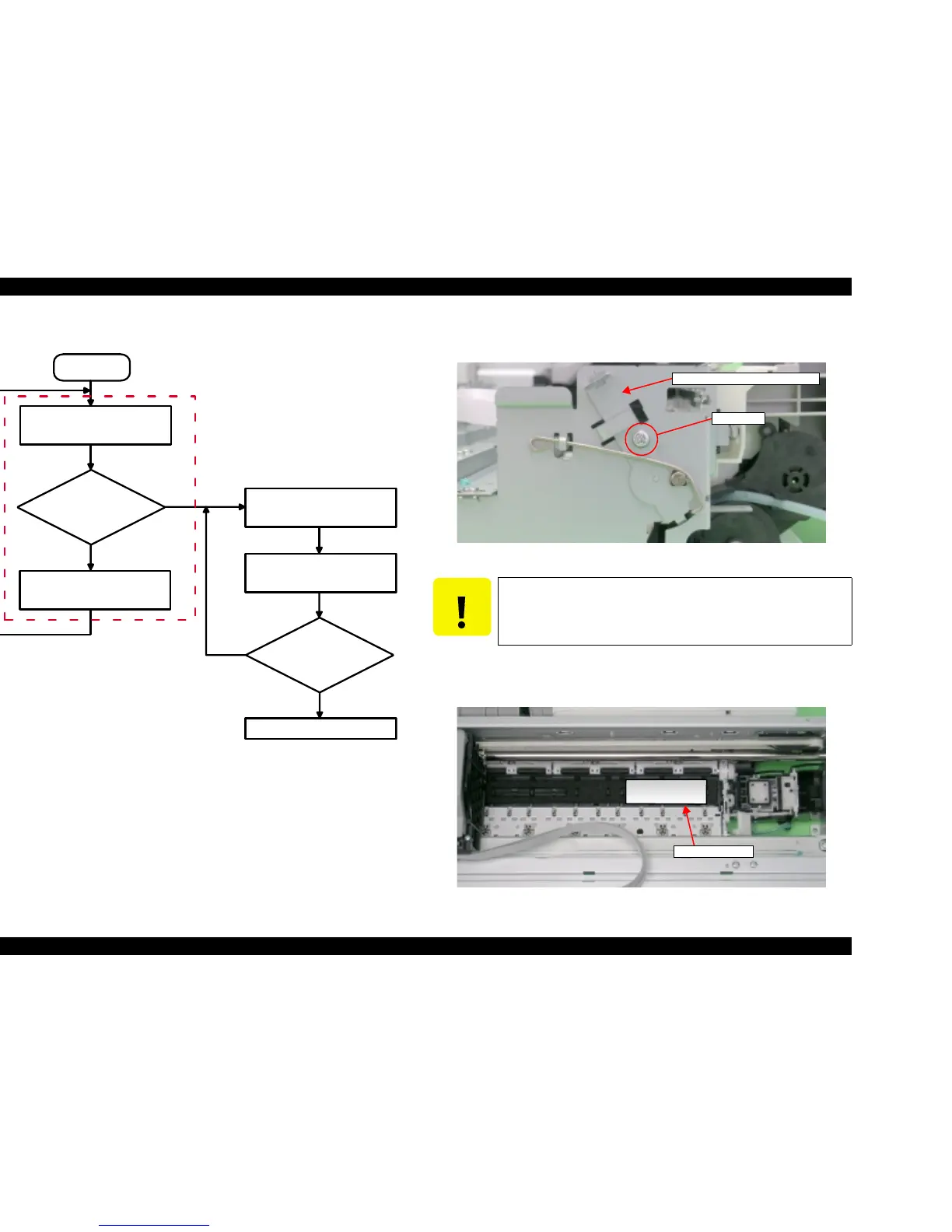

Figure 5-11. Left Side PG Adjustment
10. Tighten the screw for securing Parallel Adjustment Lever (Left) temporary.
11. Loosen the screw (C.B.S 3x6) for securing the Parallel Adjustment Lever
(Right).
Figure 5-12. Parallel Adjustment Lever (Right) Location
12. Set the thickness gauge at the position shown by the figure. The thickness
gauge should be placed between the front of the Paper Guide Front Unit and
the center ribs.
Figure 5-13. Placement position for thickness gauge
START
Move the Carriage Unit by
using the Timing Belt.
Thickness
Gauge moves?
One notch up the Parallel
Adjustment Lever (Left).
One notch down the Parallel
Adjustment Lever (Left).
Move the Carriage Unit by
using the Timing Belt.
Thickness Gauge
moves?
Advance to Step 10.
Step 8
Yes
Yes
No
No
Note : “Down” means PG
(Platen Gap) wide.
Note : “Up” means PG (Platen Gap) narrow.
CAUTION
T Do not remove a screw completely. (two or three revolution)
T You need not to loosen the screw for securing the Parallel
Adjustment Lever (Light).
C.B.S 3x6
Parallel Adjustment Lever (Right)
Thickness gauge
