EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A

APPENDIX Exploded Diagram 195

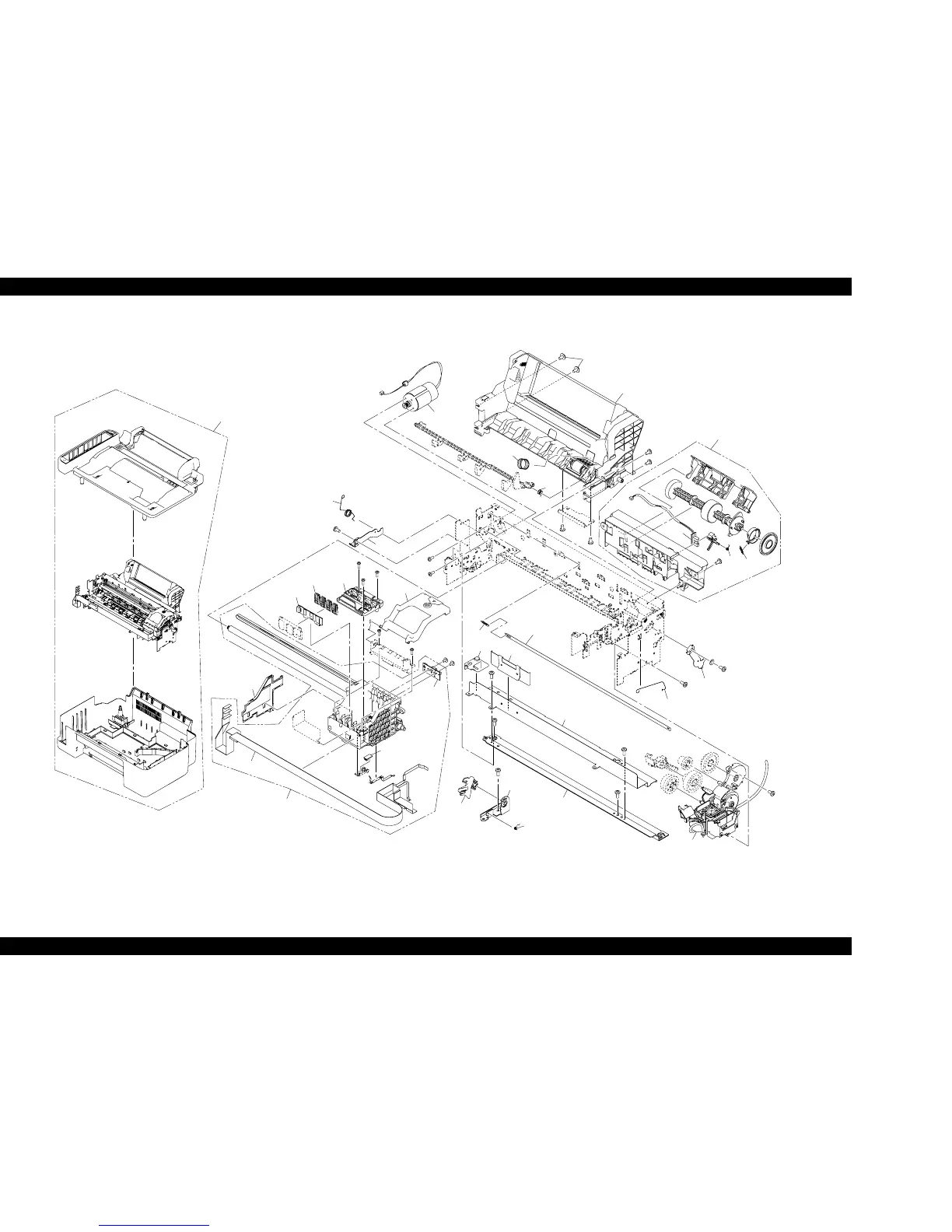

Figure 7-12. Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Exploded Diagram 4

500

510

520

508

503

537

512

513

502

504

501

544

543

523

515

533

531

532

534

539

521

528

530

554

529

516

519

511

535

EPSON STYLUS CX4600/CX4500 Rev.01 MECH02

518

517

555

Default Chapter1
- Service Manual1
- About this Manual4
- Manual Configuration4
- Symbols Used in this Manual4
- Table of Contents6
Chapter 1 PRODUCT DESCRIPTION8
Overview9
- Features9
Specifications11
- Printer Specifications11
- Scanner Specifications19
- Common20
Interface22
- USB Interface22
- Standard Card Slots (Only for Stylus CX4500/CX4600)23
Stand-Alone Copy25
- Basic Specifications25
- Configuration for Copying26
- Copy Speed26
- Relation between Original and Copy27
- Borderfree Copy28
Memory Card Print (Only for Stylus CX4500/CX4600)30
- Basic Specifications30
- Functions31
- Index Sheet33
- Layout and Paper Type, Paper Size36
- Options36
- Trimming Function36
- Assignment Rules for Photo Frame Numbers and Rotation37
- Layout Drawings38
- Relation between Paper Type and Quality40
Control Panel41
- Buttons41
- Indicators41
- Operations43
Chapter 2 OPERATING PRINCIPLES52
Overview53
Printer Mechanism53
- Print Head54
- Carriage Mechanism56
- Paper Loading/Feeding Mechanism58
- Paper Feeding Mechanism62
- Ink System Mechanism63
- Ink Sequence66
Scanner Mechanism68
- Scanner Carriage Mechanism68
Electrical Circuit Operating Principles70
- PSB/PSE Board71
- C571/577 Main Board72
  - Print Head Driver Circuit74
  - Motor Driver Circuit75
Chapter 3 TROUBLESHOOTING79
Overview80
Error Indications and Fault Occurrence Causes80
Troubleshooting85
- Superficial Phenomenon-Based Troubleshooting105
Chapter 4 DISASSEMBLY and ASSEMBLY113
Overview114
- Precautions114
- Tools115
- Work Completion Check116
Caution Regarding Assembling/Disassembling of the Printer Mechanism, and How to Ensure of Quality on Re-Assembled Product117
Disassembly118
- Document Cover119
- Paper Support Assy120
- Stacker Assy120
- Scanner Unit121
- Panel Unit126
- Housing Upper127
- Print Head128
- Printer Mechanism130
- Removal Procedure130
- PS Board Unit133
- Waste Ink Pads134
- Main Board Unit136
- ASF Unit141
- Holder Shaft Unit143
- CR Guide Frame146
- CR Motor147
- PF Motor148
- Carriage Unit149
- Paper Guide Upper Unit152
- Front Frame153
- EJ Frame Unit154
- Ink System Unit156
- Paper Guide Front Unit157
- PG Sensor158
- PF Roller Unit159
Chapter 5 ADJUSTMENT161
Overview162
- Required Adjustment162
Adjustment by Using Adjustment Program164
- EEPROM Data Copy164
- Waste Ink Pad Counter164
- Destination Setting165
- Disenable PF Deterioration Offset165
- Initialize PF Deterioration Offset165
Adjustment Except Adjustment Program170
- PG Adjustment170
- PF Scale Sensor Positioning Adjustment173
Chapter 6 MAINTENANCE174
Overview175
- Cleaning175
- Service Maintenance175
- Lubrication177
Chapter 7 APPENDIX181
Connector Summary182
- Major Component Unit182
Component Layout188
Exploded Diagram192
Parts List197
Electrical Circuits199
