8.2.6 Operation Buttons & Indicators (LEDs)
Operation Buttons
This printer has the following six operation buttons.
Indicators (LEDs)
Thirteen indicators (LEDs) are provided to indicate settings or printer status.
Note "*": See "8-14 Indicators (LEDs) Function"
(p.183)
for the LED status at error
occurrence.

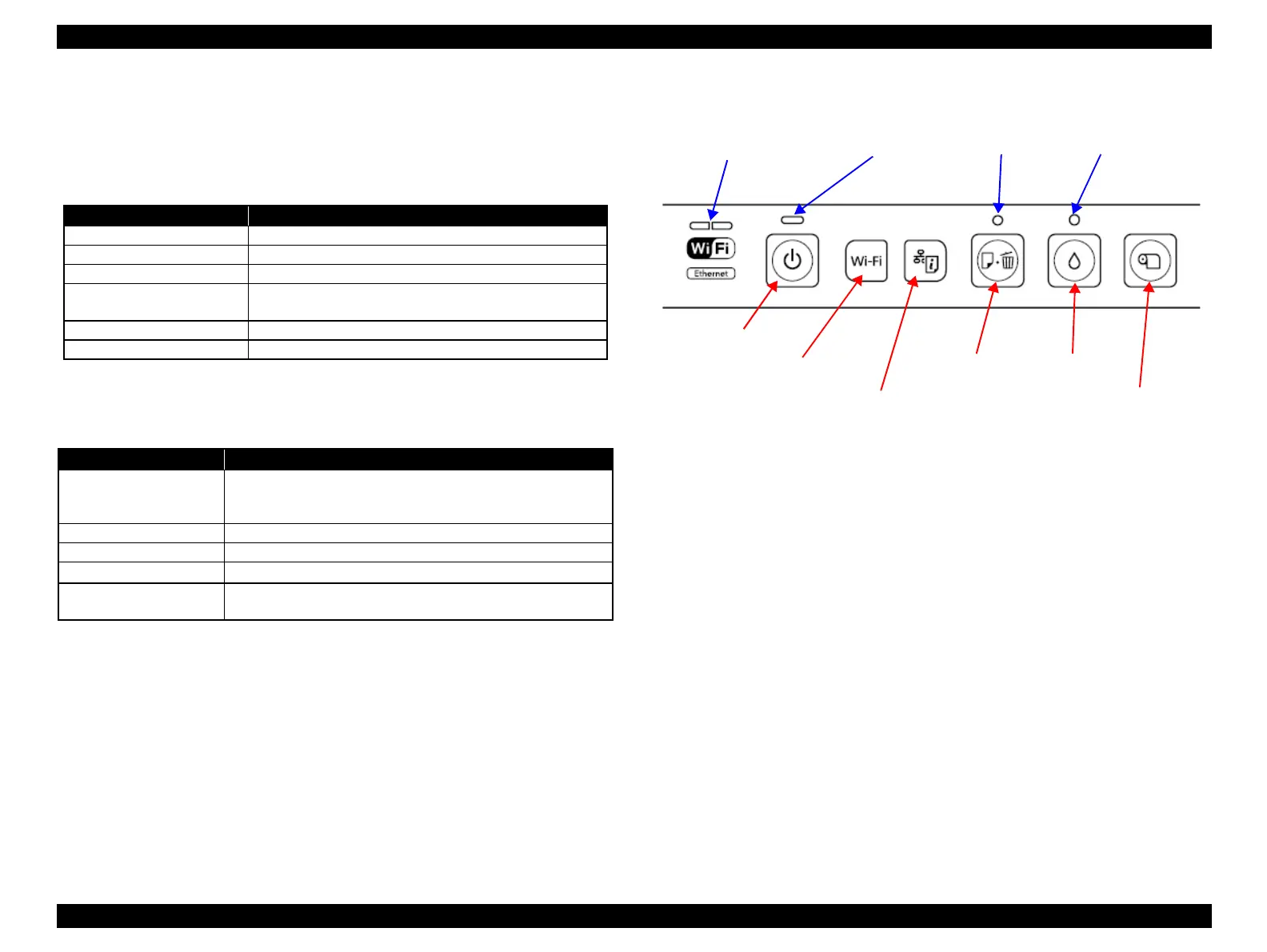

Figure 8-2. Button & Indicators (LEDs)
Table 8-11. Operation Buttons
Button Function
Power Turns the power ON/OFF.
Paper Feeds or ejects paper.
Ink Runs a sequence of ink cartridge replacement or cleaning.
Roll Paper Prints the cutting line on the roll paper or feeds the paper
backwards out of the printer.
Network status sheet Prints the network status sheet.
Wi-Fi Adjust setting for connection to wireless LANs.
Table 8-12. Indicators (LEDs)
LED Function
Power LED (Green) Lights at power-on.
Flashes during some sequence is in progress.
Flashes at high speed during power-OFF sequence.
Ink LED (Red) Lights or flashes when an ink-related error occurs.*
Paper LED (Red) Lights or flashes when an paper- or CDR-related error occurs.*
Cartridge LED (Red) x 8 Indicates an ink-related error of each ink cartridge.*
Network LED
(Green / Yellow)
Lights or flashes during network sequence.
Power Button
Wi-Fi Button
Network status sheet Button
Paper Button Ink Button
Roll Paper Button
Network LED
(Left : Green, Right : Yellow)
Power LED
Paper LED
Ink LED
